POLARIS PRO 1300W
Model POLARIS PRO 1300WPart no. PPX-1300FC-A3EAN 753263078162
43 specifications
- Weight3.13 kg
- ColourBlack
- Total power1300 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Weight
- 3.13 kg
- Colour
- Black
- Total power
- 1300 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- POLARIS PRO 1300W
- Part number
- PPX-1300FC-A3
- EAN / UPC
- 753263078162
- Also known as
- Chieftec Polaris PRO 1300W power supply unit 20+4 pin ATX ATX Black
Specifications
43 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 1300 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 15-8 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V1) | 108.3 A |
| Max output current (+5V) | 24 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |

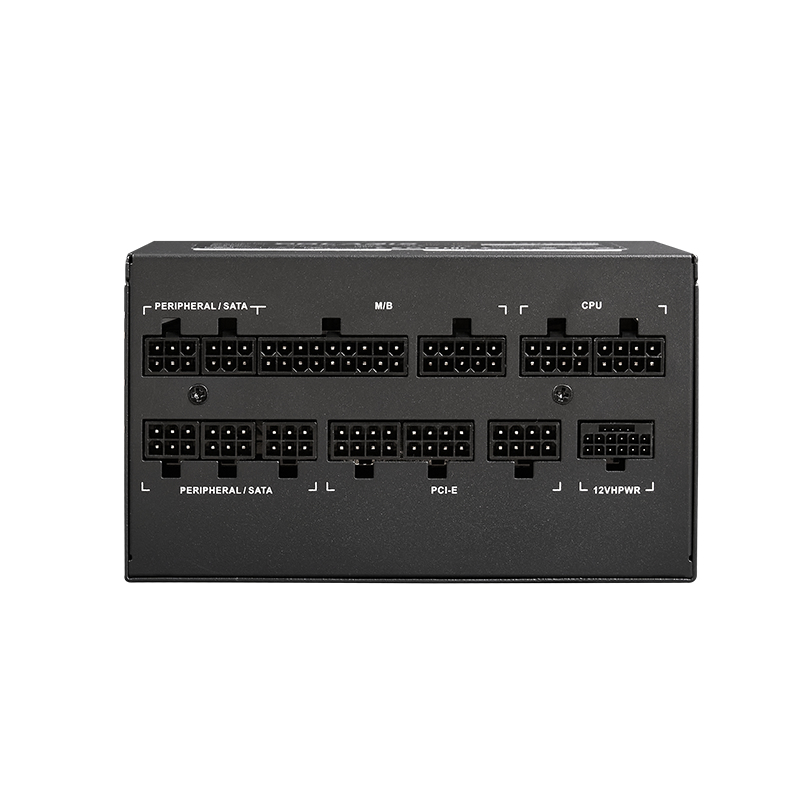

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 12 |
| SATA power cable length | 100,550 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 150,500 mm |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express power connectors (16-pin) | 1 |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |

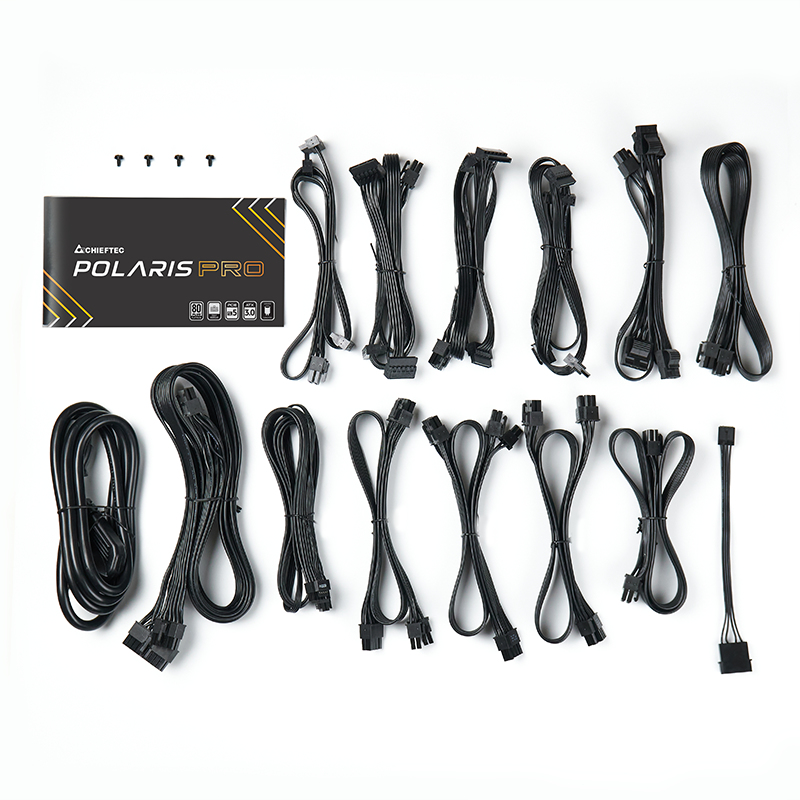

| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| ATX version | 3.0 |
| Bearing technology | FDB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 3.13 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 3.49 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Warranty period | 5 year(s) |
