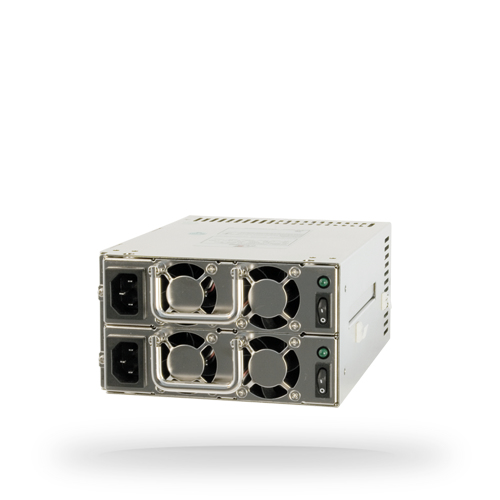

Chieftec MRW-5600V power supply unit 20+4 pin ATX ATX Grey
Model MRW-5600VEAN 4710713239760
30 specifications
- ColourGrey
- Peak power600 W
- Motherboard power connector20+4 pin ATX
- PurposeServer
- Width150 mm
Overview
- Colour
- Grey
- Peak power
- 600 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- Server
- Width
- 150 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- MRW-5600V
- Part number
- MRW-5600V
- EAN / UPC
- 4710713239760
- Also known as
- Chieftec MRW-5600V power supply unit 20+4 pin ATX ATX Grey
Specifications
30 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Peak power | 600 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V1) | 49 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 3.5 A |
| Power protection features | Over current, Over voltage, Overheating, Overload, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 8 |
| PCI Express power connectors (6-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 0 |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 2 |
Performance
| Specification | Value |
|---|---|
| Purpose | Server |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Fan diameter | 4 cm |
| Number of fans | 4 fan(s) |
| LED indicators | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | EuP CISPR EMI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 210 mm |
| Height | 87 mm |
Other features
| Specification | Value |
|---|---|
| Number of SATA connectors | 4 |
