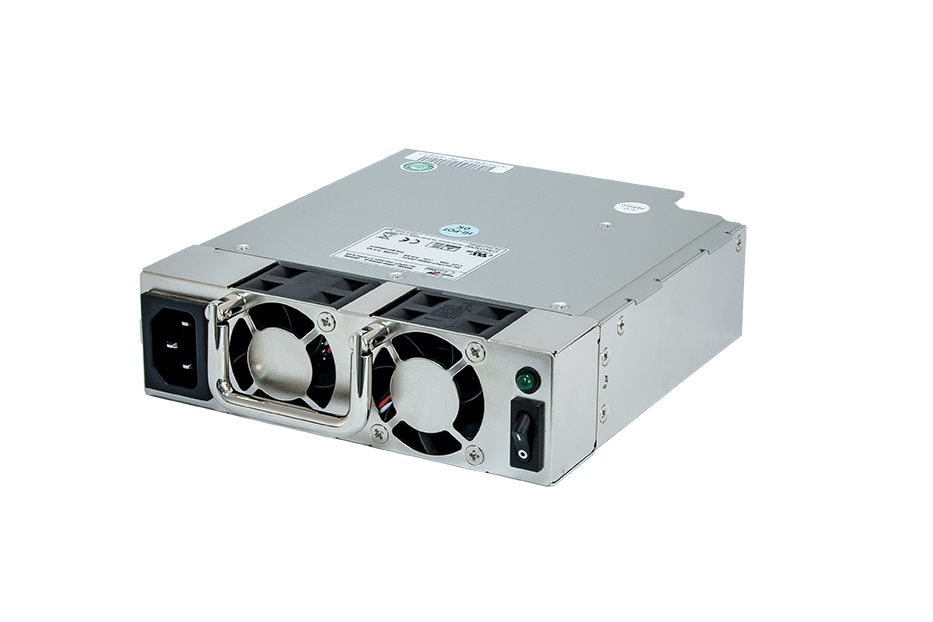

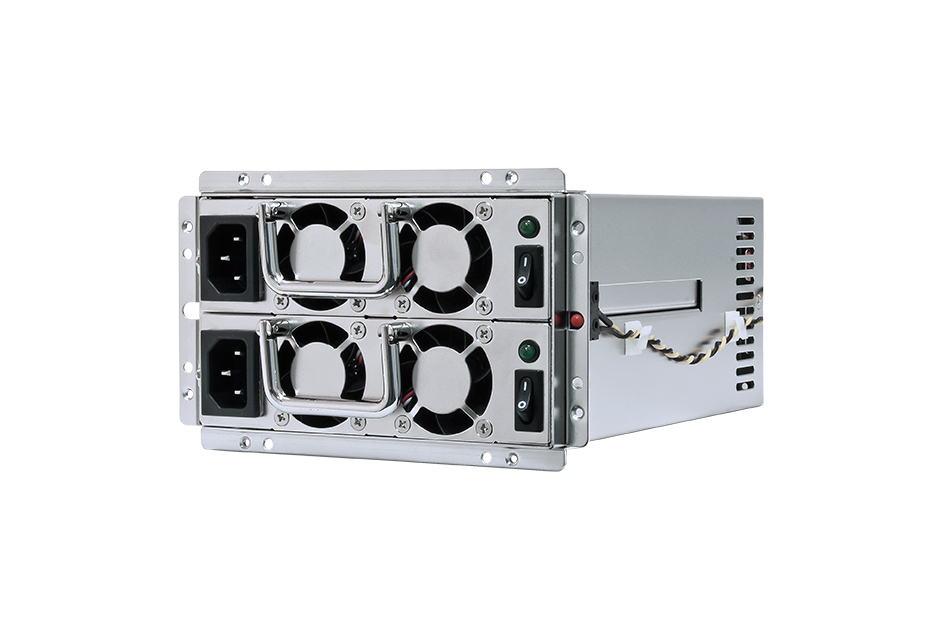

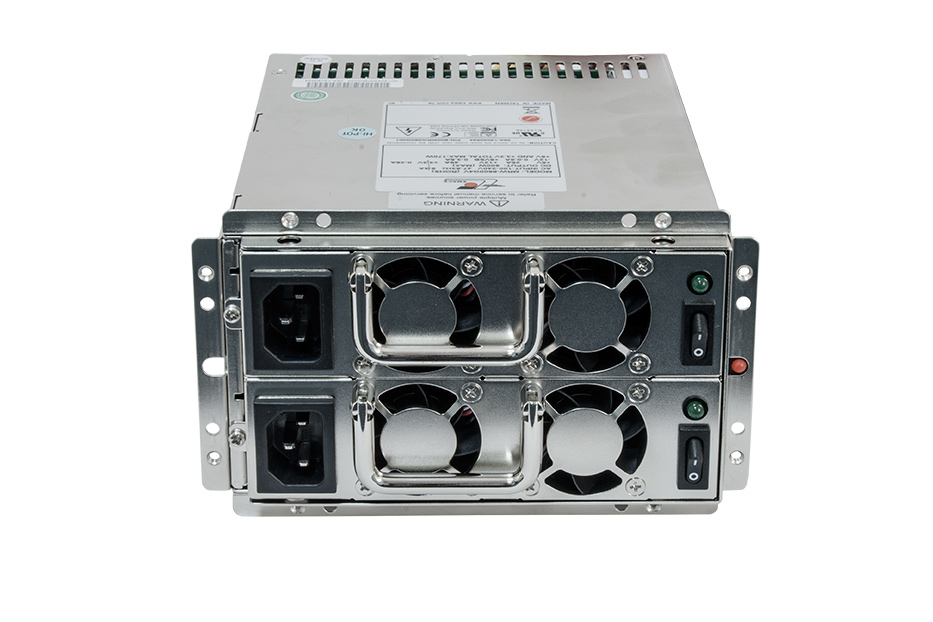

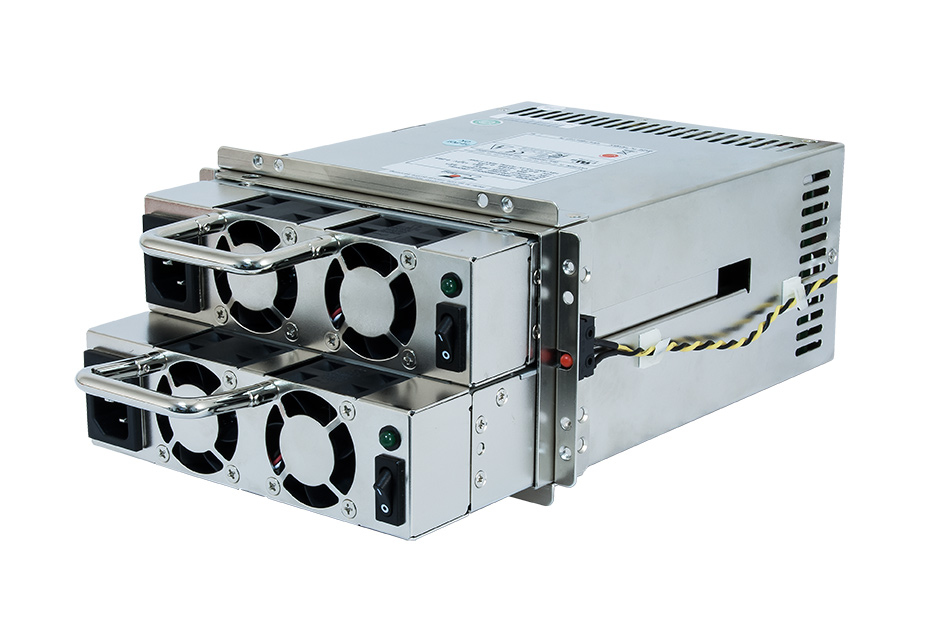

Chieftec MRW-5600G power supply unit
1200 W 24-pin ATX PS/2 Metallic
Model MRW-5600GEAN 4710713233096
33 specifications
- ColourMetallic
- Total power1200 W
- Motherboard power connector24-pin ATX
- Power supply unit (PSU) form factorPS/2
- Width150 mm
Overview
- Colour
- Metallic
- Total power
- 1200 W
- Motherboard power connector
- 24-pin ATX
- Power supply unit (PSU) form factor
- PS/2
- Width
- 150 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- MRW-5600G
- Part number
- MRW-5600G
- EAN / UPC
- 4710713233096
- Also known as
- Chieftec MRW-5600G power supply unit 1200 W 24-pin ATX PS/2 Metallic
Specifications
33 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 1200 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 170 W |
| Combined power (+5V) | 170 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V1) | 49 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 3.5 A |
| Efficiency | 90% |
| Power protection features | Over current, Over voltage, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 9 |
| EPS power connector (8-pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
Performance
| Specification | Value |
|---|---|
| Power supply unit (PSU) form factor | PS/2 |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Metallic |
| Cooling type | Active |
| Fan diameter | 4 cm |
| Number of fans | 4 fan(s) |
| Fan location | Side |
| LED indicators | Alarm |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CISPR EMI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 185 mm |
| Height | 87 mm |
