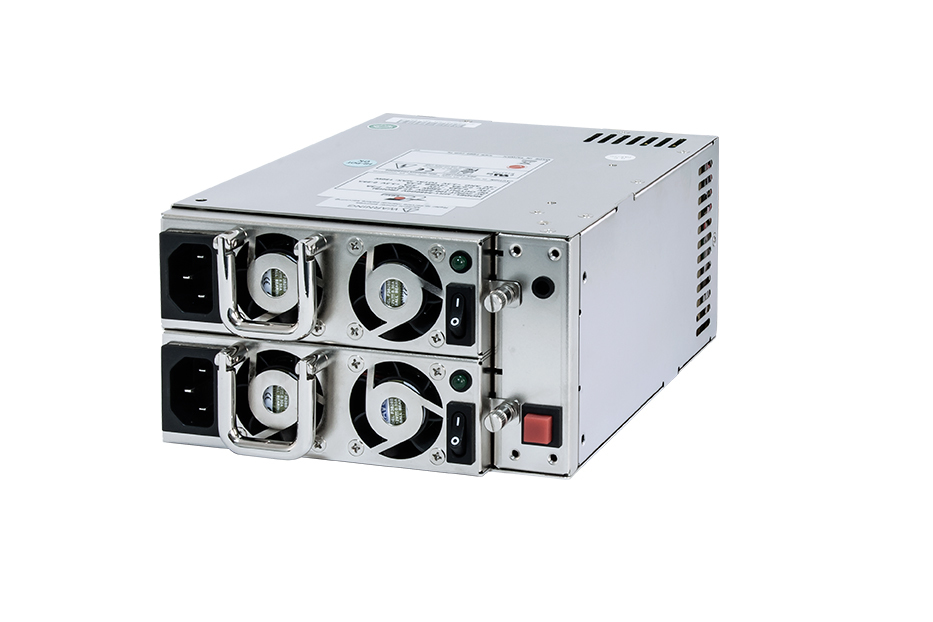

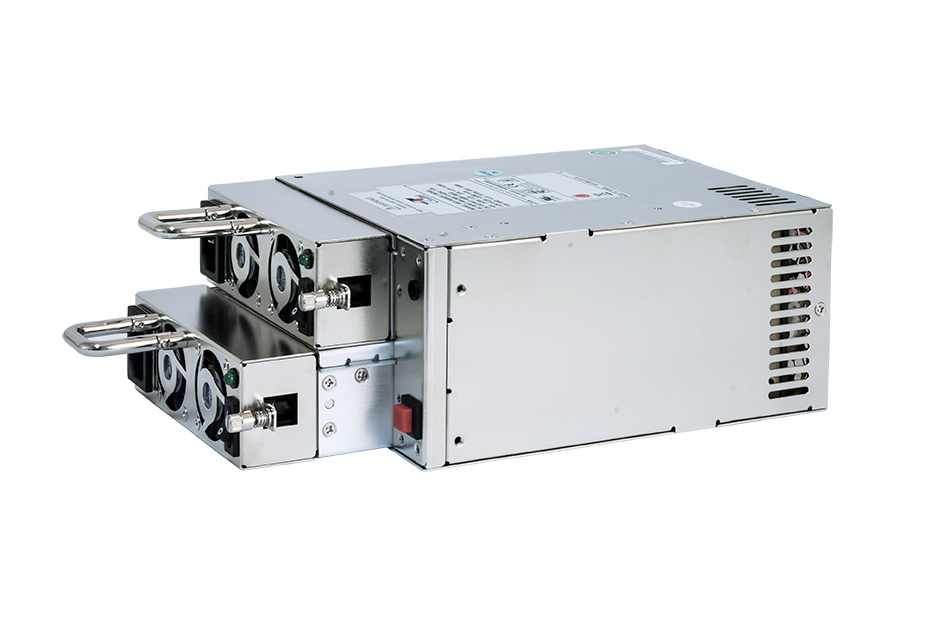

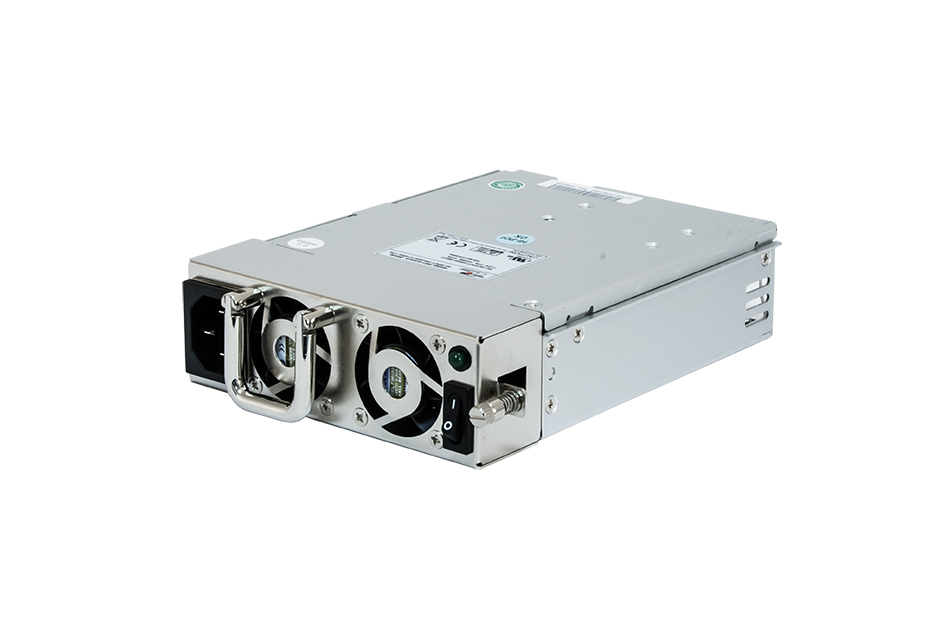

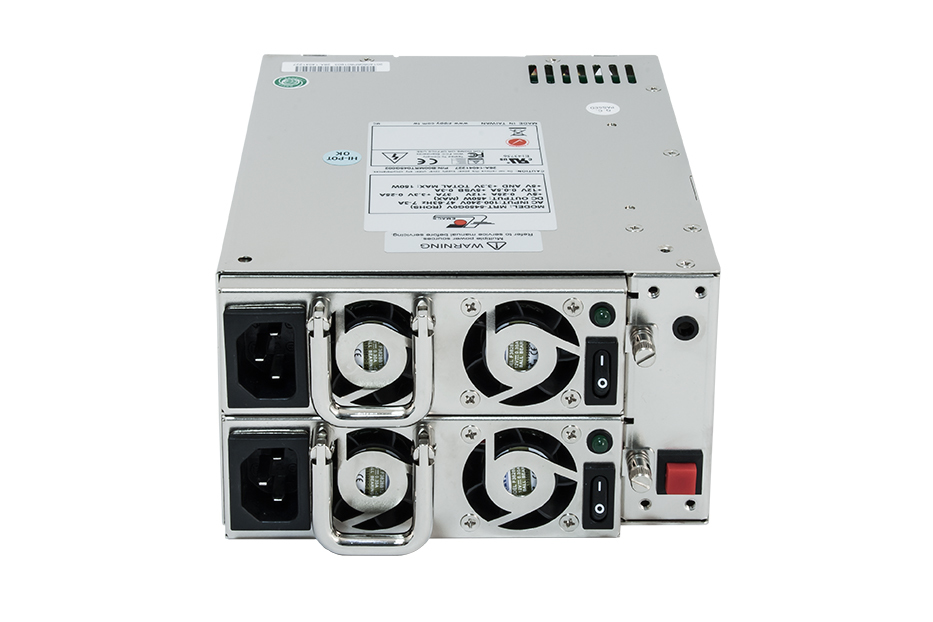

Chieftec MRT-5450G power supply unit
900 W 24-pin ATX PS/2 Metallic
Model MRT-5450GEAN 4710713233089
34 specifications
- ColourMetallic
- Total power900 W
- Motherboard power connector24-pin ATX
- Power supply unit (PSU) form factorPS/2
- Width150 mm
Overview
- Colour
- Metallic
- Total power
- 900 W
- Motherboard power connector
- 24-pin ATX
- Power supply unit (PSU) form factor
- PS/2
- Width
- 150 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- MRT-5450G
- Part number
- MRT-5450G
- EAN / UPC
- 4710713233089
- Also known as
- Chieftec MRT-5450G power supply unit 900 W 24-pin ATX PS/2 Metallic
Specifications
34 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 900 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 150 W |
| Combined power (+5V) | 150 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V1) | 37 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over voltage, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 7 |
| EPS power connector (8-pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
Performance
| Specification | Value |
|---|---|
| Power supply unit (PSU) form factor | PS/2 |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Metallic |
| Cooling type | Active |
| Fan diameter | 4 cm |
| Number of fans | 4 fan(s) |
| Fan location | Side |
| LED indicators | Alarm |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CISPR EMI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 185 mm |
| Height | 87 mm |
Other features
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
