Chieftec MRT-5320G power supply unit
320 W 24-pin ATX PS/2 Silver
Model MRT-5320GEAN 4056572695867
31 specifications
- ColourSilver
- Total power320 W
- Motherboard power connector24-pin ATX
- PurposeServer
- Width150 mm
Overview
- Colour
- Silver
- Total power
- 320 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- Server
- Width
- 150 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- MRT-5320G
- Part number
- MRT-5320G
- EAN / UPC
- 4056572695867, 4710713233072
- Also known as
- Chieftec MRT-5320G power supply unit 320 W 24-pin ATX PS/2 Silver
Specifications
31 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 320 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 3 - 5 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 150 W |
| Combined power (+5V) | 150 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V1) | 26 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over voltage, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 2 |
| Peripheral (Molex) power connectors (4-pin) | 5 |
| EPS power connector (8-pin) | Yes |
| Floppy drive power connector | 1 |
Performance
| Specification | Value |
|---|---|
| Purpose | Server |
| Power supply unit (PSU) form factor | PS/2 |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Fan diameter | 4 cm |
| Number of fans | 2 fan(s) |
| LED indicators | Alarm |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 185 mm |
| Height | 87 mm |
What people say
Reviews & ratings
Chieftec MRT-5320G power supply unit
No reviews yet
Be the first to tell others how Chieftec MRT-5320G power supply unit works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Chieftec MRT-5320G power supply unit
All power supply unit comparisons- Chieftec MRT-5320G power supply unit vsChieftec CSM-250P power supply unitCompare specs
- Chieftec MRT-5320G power supply unit vsChieftec MRG-5700V power supply unitCompare specs
- Chieftec MRT-5320G power supply unit vsChieftec SFX-250VS power supply unitCompare specs
- Chieftec MRT-5320G power supply unit vsChieftec SFX-450BS power supply unitCompare specs
- Chieftec MRT-5320G power supply unit vsFSP Hyper M600Compare specs
- Chieftec MRT-5320G power supply unit vsFSP Hyper M700Compare specs

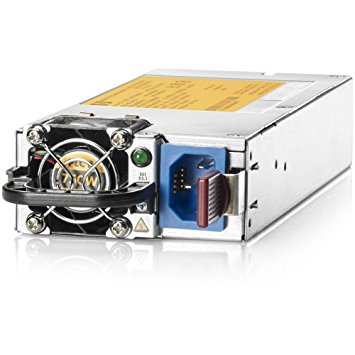

- Chieftec MRT-5320G power supply unit vsHP 656363-B21B power supply unitCompare specs

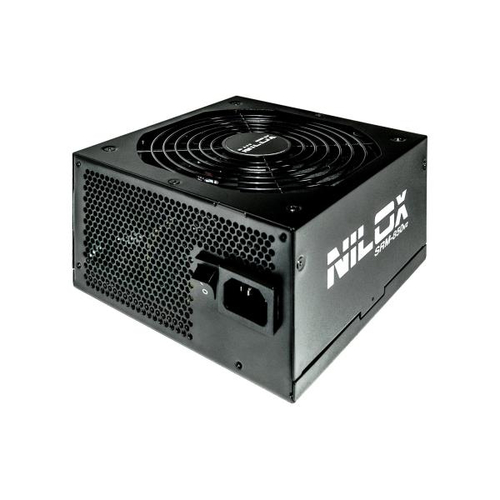

- Chieftec MRT-5320G power supply unit vsNilox SRM-850v2 power supply unitCompare specs
