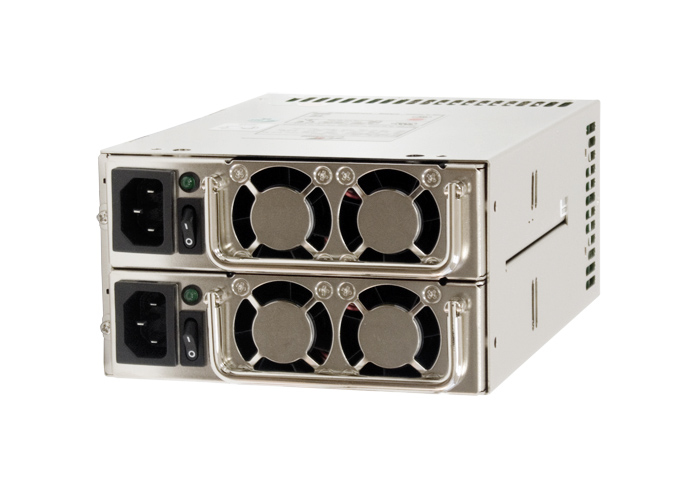

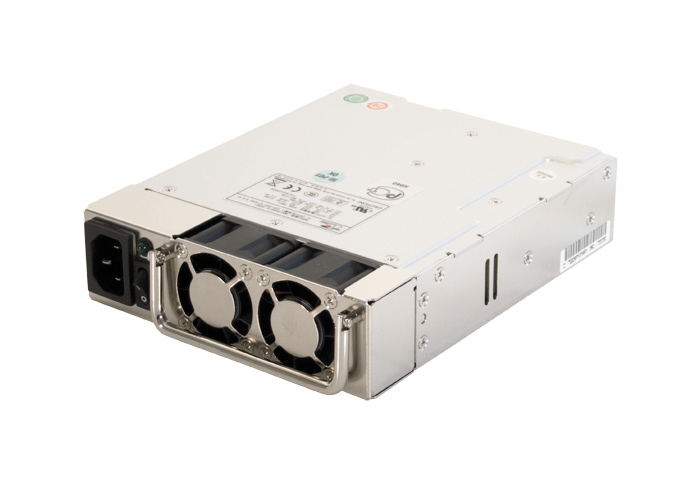

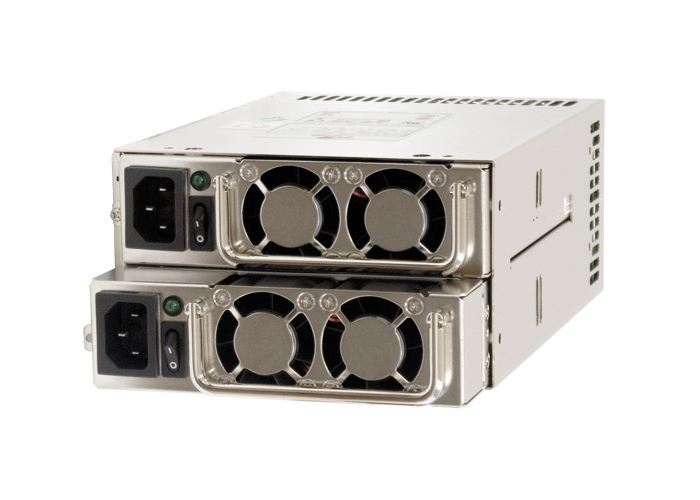

Chieftec MRG-6500P power supply unit
500 W 24-pin ATX PS/2 Silver
Model MRG-6500PEAN 4710713237483
33 specifications
- ColourSilver
- Total power500 W
- Motherboard power connector24-pin ATX
- PurposeServer
- Width150 mm
Overview
- Colour
- Silver
- Total power
- 500 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- Server
- Width
- 150 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- MRG-6500P
- Part number
- MRG-6500P
- EAN / UPC
- 4710713237483
- Also known as
- Chieftec MRG-6500P power supply unit 500 W 24-pin ATX PS/2 Silver
Specifications
33 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 35/25 A |
| Maximum input current (@110V) | 9 A |
| Maximum input current (@220V) | 4.5 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 48 W |
| Combined power (+5V) | 48 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V1) | 32 A |
| Max output current (+5V) | 35 A |
| Max output current (-12V) | 1 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 2 |
| Peripheral (Molex) power connectors (4-pin) | 8 |
| EPS power connector (8-pin) | Yes |
| Floppy drive power connector | 2 |
Performance
| Specification | Value |
|---|---|
| Purpose | Server |
| Power supply unit (PSU) form factor | PS/2 |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Fan diameter | 4 cm |
| Number of fans | 1 fan(s) |
| LED indicators | Power |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CISPR EMI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 210 mm |
| Height | 87 mm |
