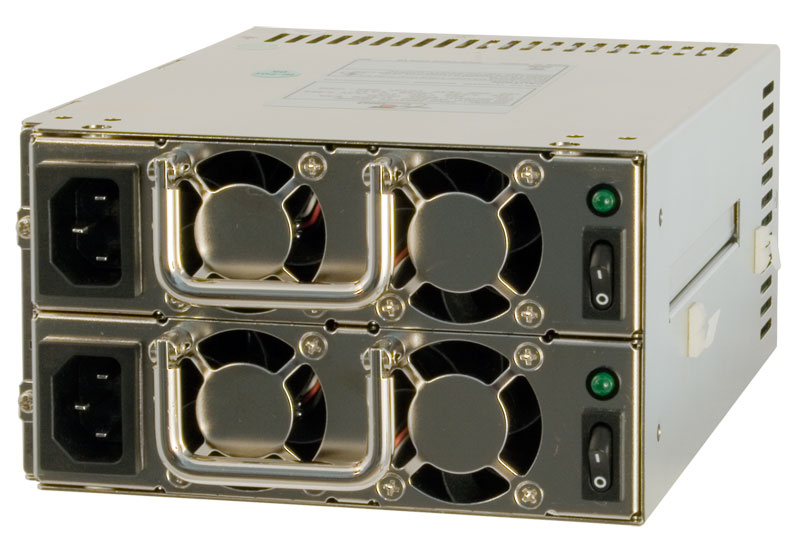

Chieftec MRG-5800V power supply unit
800 W
Model MRG-5800VEAN 4710713238244
16 specifications
- Total power800 W
- Number of SATA power connectors6
- Fan diameter4 cm
Overview
- Total power
- 800 W
- Number of SATA power connectors
- 6
- Fan diameter
- 4 cm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- MRG-5800V
- Part number
- MRG-5800V
- EAN / UPC
- 4710713238244
- Also known as
- Chieftec MRG-5800V power supply unit 800 W
Specifications
16 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 800 W |
| AC input voltage | 100 - 240 V |
| Input current | 9 - 5 A |
| Efficiency | 80% |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 5 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6-pin) | 1 |
| PCI Express power connectors (8-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Floppy drive power connector | 1 |
Design
| Specification | Value |
|---|---|
| Fan diameter | 4 cm |
| LED indicators | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CISPR EMI |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 194 x 150 x 86 mm |
