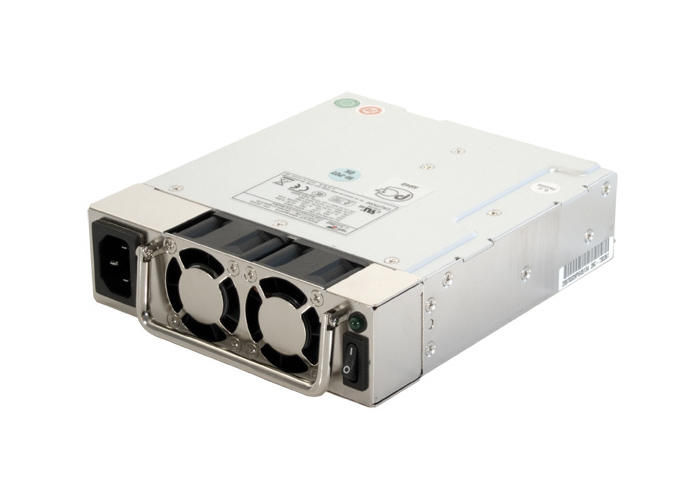

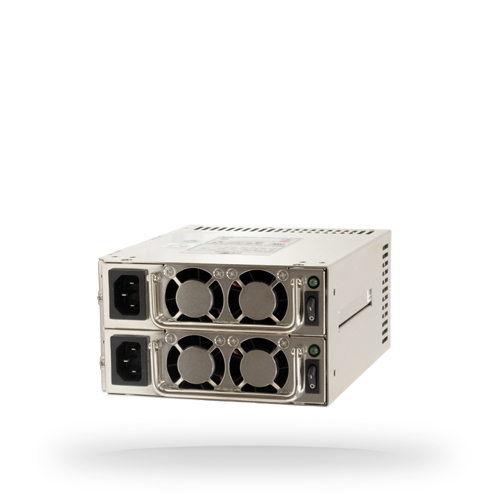

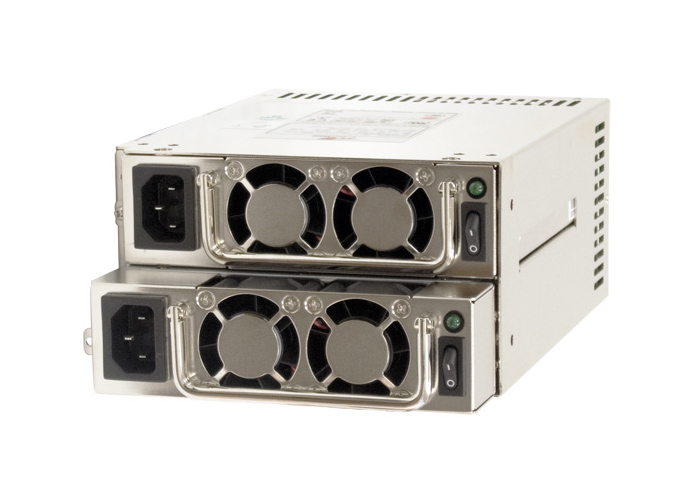

Chieftec MRG-5700V power supply unit
700 W 20+4 pin ATX PS/2 Silver
Model MRG-5700VEAN 4710713239777
33 specifications
- ColourSilver
- Total power700 W
- Motherboard power connector20+4 pin ATX
- Power supply unit (PSU) form factorPS/2
- Width150 mm
Overview
- Colour
- Silver
- Total power
- 700 W
- Motherboard power connector
- 20+4 pin ATX
- Power supply unit (PSU) form factor
- PS/2
- Width
- 150 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- MRG-5700V
- Part number
- MRG-5700V
- EAN / UPC
- 4710713239777
- Also known as
- Chieftec MRG-5700V power supply unit 700 W 20+4 pin ATX PS/2 Silver
Specifications
33 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 700 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 5 - 9 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 190 W |
| Combined power (+5V) | 190 W |
| Max output current (+3.3V) | 32 A |
| Max output current (+12V1) | 57 A |
| Max output current (+5V) | 32 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 3.5 A |
| Efficiency | 80% |
| Power protection features | Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 5 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |
Performance
| Specification | Value |
|---|---|
| Power supply unit (PSU) form factor | PS/2 |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Fan diameter | 4 cm |
| Number of fans | 2 fan(s) |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 210 mm |
| Height | 87 mm |
