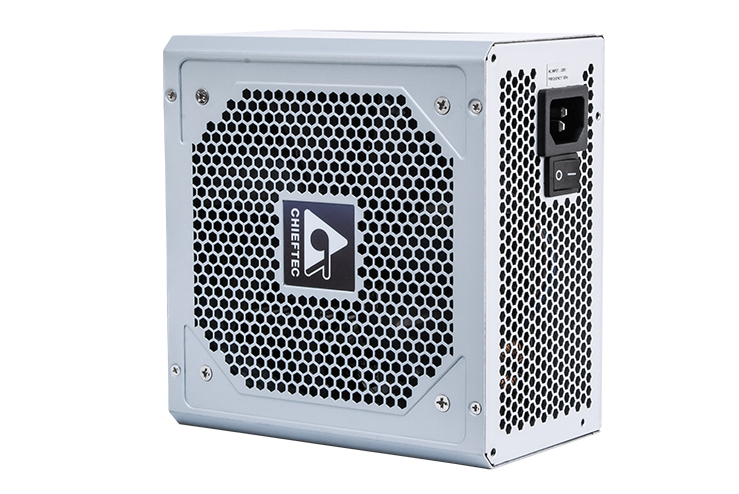

Chieftec iARENA power supply unit
450 W 24-pin ATX PS/2 Silver
Model iARENAPart no. GPC-450SEAN 4710713234116
40 specifications
- ColourSilver
- Total power450 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width140 mm
Overview
- Colour
- Silver
- Total power
- 450 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 140 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- iARENA
- Part numbers
- GPC-450S, GPC-400S, GPC-350S
- EAN / UPC
- 4710713234116, 4710713234130, 4710713234123
- Also known as
- Chieftec iARENA power supply unit 450 W 24-pin ATX PS/2 Silver
Specifications
40 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 450 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Input current | 4 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 103 W |
| Combined power (+12V) | 420 W |
| Combined power (+5V) | 103 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 21 A |
| Max output current (+12V1) | 35 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 80% |
| Power protection features | Over voltage, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 45 cm |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 1 |
| CPU P4 connector (4-pin) | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | PS/2 |
| 80 PLUS certification | 80 PLUS |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 87 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Other features
| Specification | Value |
|---|---|
| Case colour | Silver |
What people say
Reviews & ratings
Chieftec iARENA power supply unit
No reviews yet
Be the first to tell others how Chieftec iARENA power supply unit works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Chieftec iARENA power supply unit
All power supply unit comparisons- Chieftec iARENA power supply unit vsChieftec GPE-700S power supply unitCompare specs
- Chieftec iARENA power supply unit vsChieftec GPB-350S power supply unitCompare specs
- Chieftec iARENA power supply unit vsChieftec GPB-400S power supply unitCompare specs
- Chieftec iARENA power supply unit vsChieftec GPB-300S power supply unitCompare specs

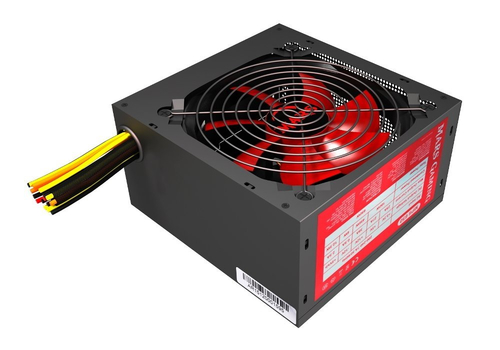

- Chieftec iARENA power supply unit vsMars Gaming Zeus power supply unitCompare specs

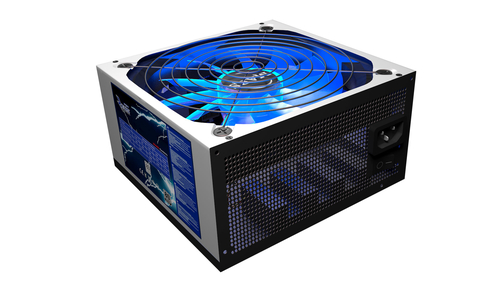

- Chieftec iARENA power supply unit vsMars Gaming MPII650 power supply unitCompare specs

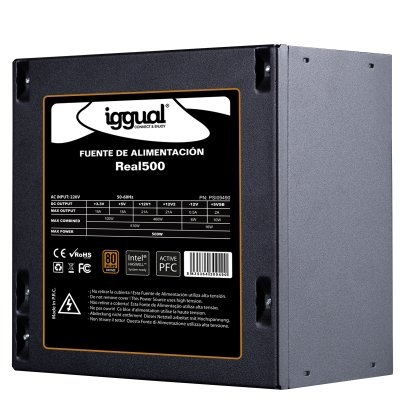

- Chieftec iARENA power supply unit vsiggual PSI09490 power supply unitCompare specs

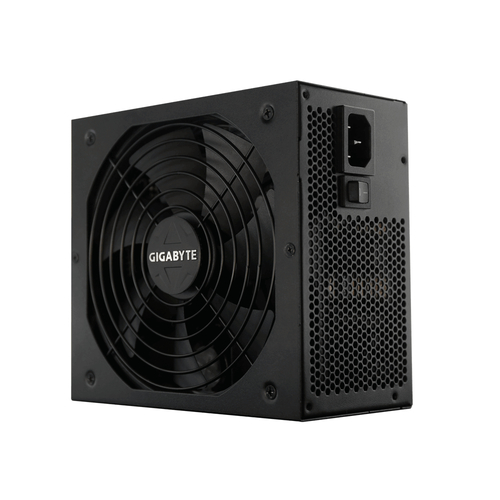

- Chieftec iARENA power supply unit vsGIGABYTE GB-G750H power supply unitCompare specs
