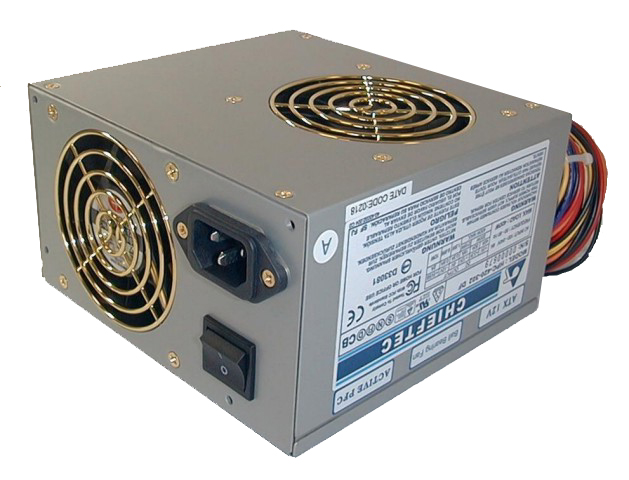

HPC-420-302-DF power supply unit
420 W
Model HPC-420-302-DFPart no. HPC-420-302-DF-
11 specifications
- Total power420 W
- Number of SATA power connectors2
- Mean time between failures (MTBF)100.000 h
Overview
- Total power
- 420 W
- Number of SATA power connectors
- 2
- Mean time between failures (MTBF)
- 100.000 h
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- HPC-420-302-DF
- Part numbers
- HPC-420-302-DF-, HPC-420-302-DF
- Also known as
- Chieftec HPC-420-302-DF power supply unit 420 W
Specifications
11 specifications in 4 groups
Power
| Specification | Value |
|---|---|
| Total power | 420 W |
| AC input voltage | 100 - 240 V |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of SATA power connectors | 2 |
| Peripheral (Molex) power connectors (4-pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Floppy drive power connector | 1 |
| Connector(s) | 20/24 Pin ATX / 45cm 1x, 4 Pin P IV / 45cm 1x, Molex / PATA 3x50cm, 3x 70cm, 1x 90cm 9x, Floppy / 75cm 1x, SATA / 50cm, 70cm 2x, Fanspeed control / 47cm 1x |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Mean time between failures (MTBF) | 100.000 h |
| Compatible products | ATX 1.1 |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 150 x 85 x 140 mm |
