PowerUp GPX-850FC power supply unit
850 W 20+4 pin ATX ATX Black
Model GPX-850FCEAN 753263077202
47 specifications
- Weight2.4 kg
- ColourBlack
- Total power850 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Weight
- 2.4 kg
- Colour
- Black
- Total power
- 850 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- GPX-850FC
- Part number
- GPX-850FC
- EAN / UPC
- 753263077202, 7532630772024
- Also known as
- Chieftec PowerUp GPX-850FC power supply unit 850 W 20+4 pin ATX ATX Black
Specifications
47 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 12 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 846 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 65 cm |
| Number of SATA power connectors | 9 |
| SATA power cable length | 500,650,800 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 500,650,800,950 mm |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express power cable length | 65 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 80 cm |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.53 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|

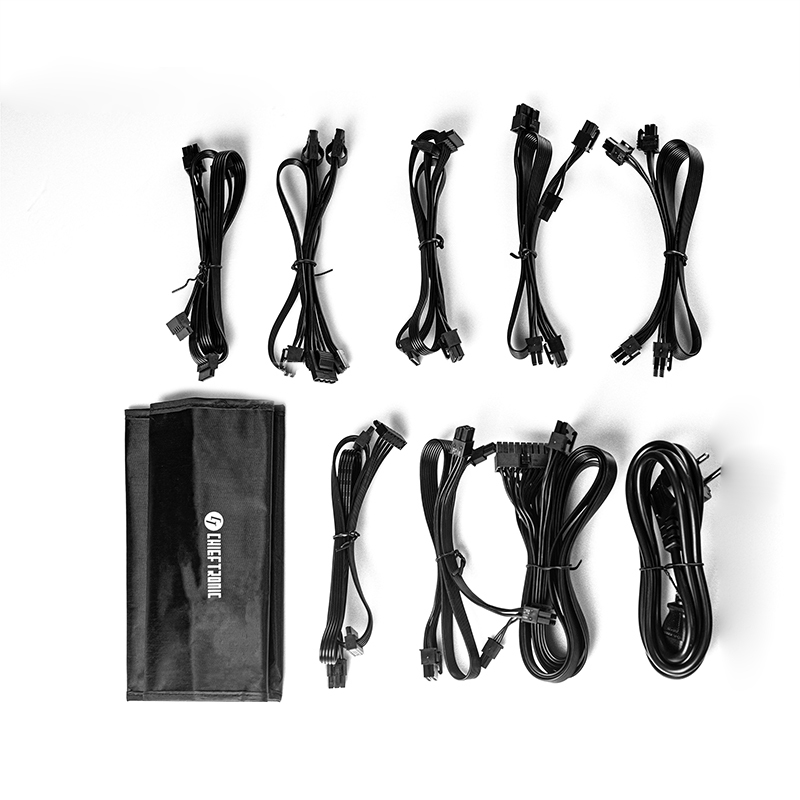

| Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
Certificates
| Specification | Value |
|---|---|
| Certification | 80PLUS Gold |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 2.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 2.95 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
