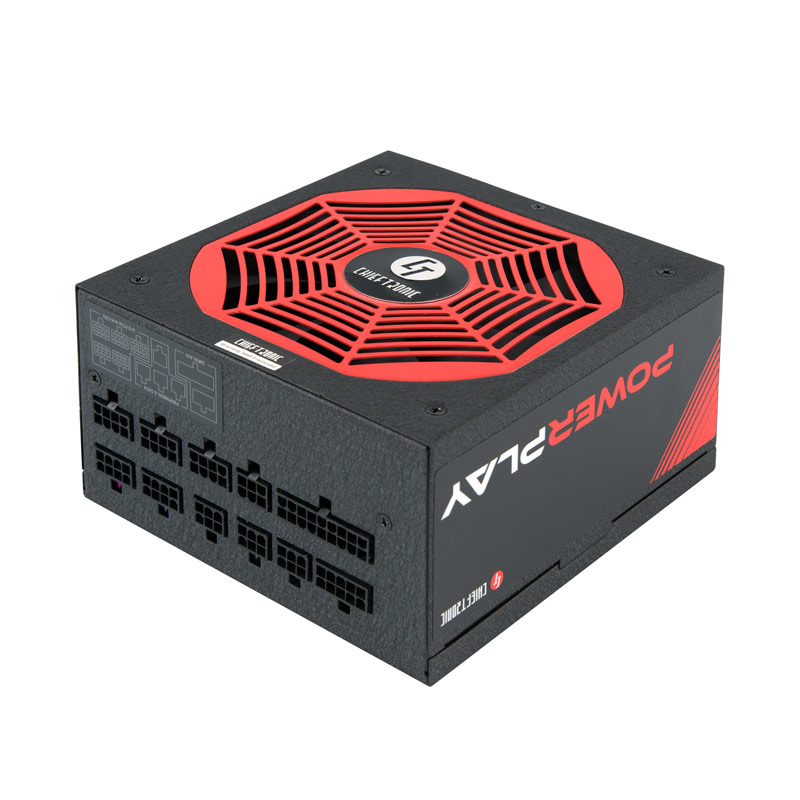

GPU-1200FC power supply unit
1200 W 20+4 pin ATX ATX Black, Red
Model GPU-1200FCEAN 753263077677
49 specifications
- Weight3.46 kg
- ColourBlack, Red
- Total power1200 W
- Motherboard power connector20+4 pin ATX
- PurposePC/Server
- Width150 mm
Overview
- Weight
- 3.46 kg
- Colour
- Black, Red
- Total power
- 1200 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC/Server
- Width
- 150 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- GPU-1200FC
- Part number
- GPU-1200FC
- EAN / UPC
- 753263077677
- Also known as
- Chieftec GPU-1200FC power supply unit 1200 W 20+4 pin ATX ATX Black, Red
Specifications
49 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 1200 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 14 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 100 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |

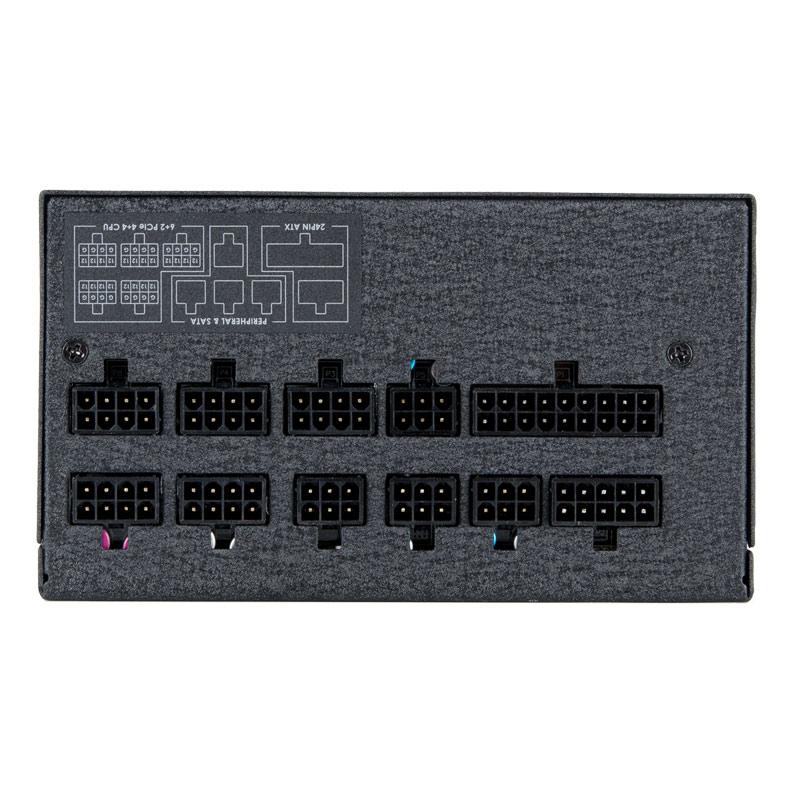

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 9 |
| SATA power cable length | 150,500 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 150,700 mm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 8 |
| PCI Express power cable length | 60 cm |
| ATX Power connector (24-pin) | No |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.53 |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Red |
| Cooling type | Active |

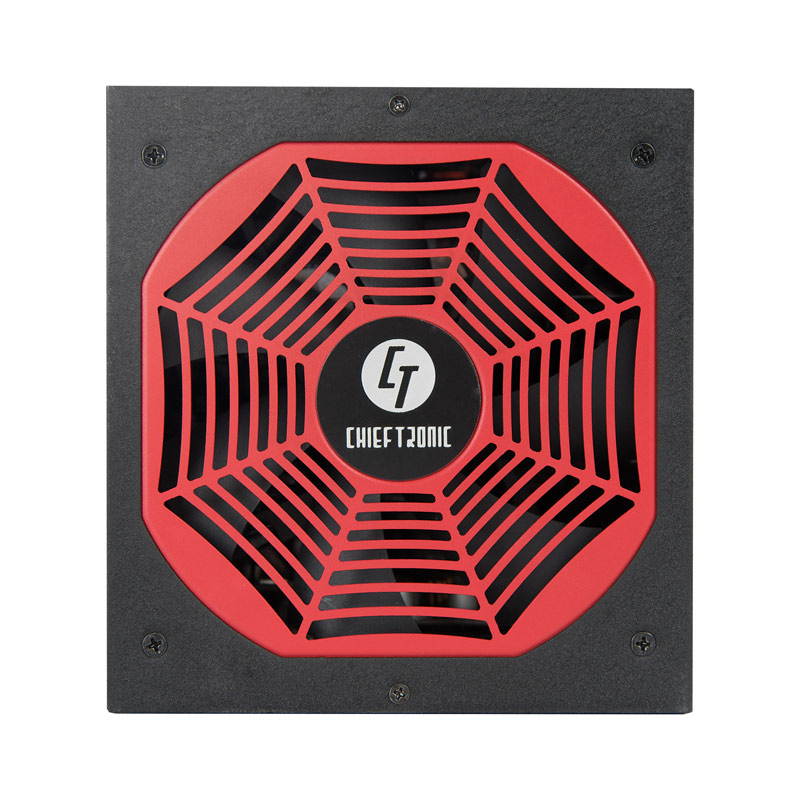

| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |

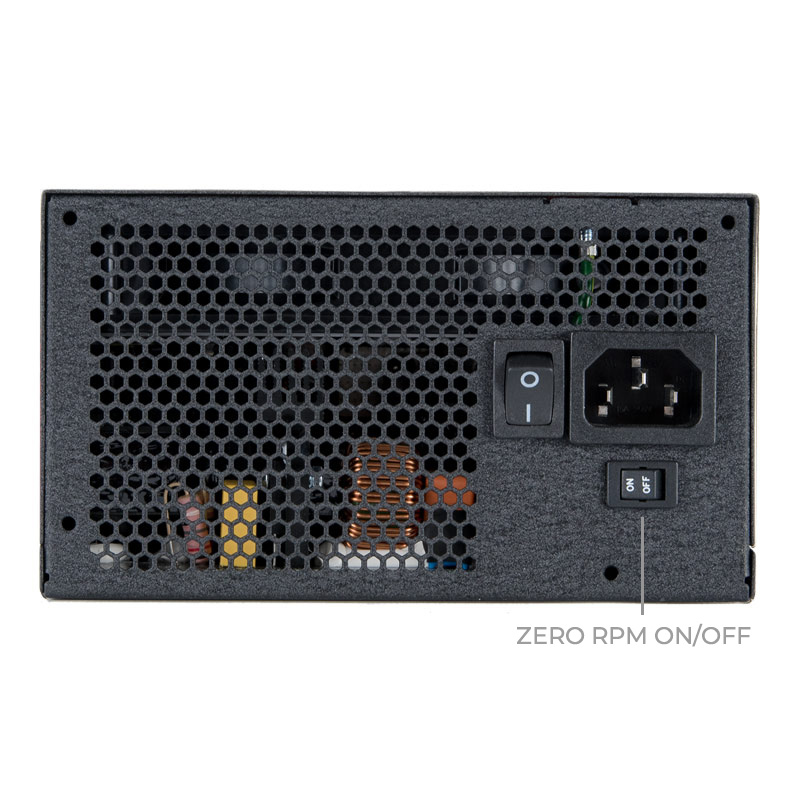

| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 3.46 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 3.87 kg |
Technical details
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
