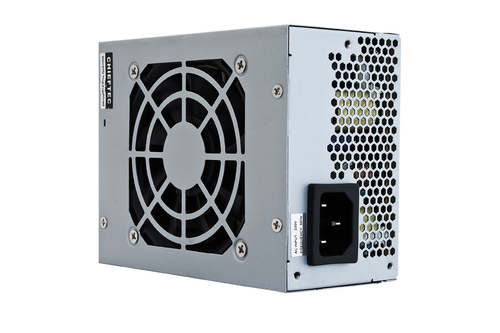

Chieftec Smart GPS-400A8 power supply unit
400 W 20+4 pin ATX ATX Black
Model GPS-400A8EAN 4710713239517
32 specifications
- ColourBlack
- Total power400 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Colour
- Black
- Total power
- 400 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- GPS-400A8
- Part number
- GPS-400A8
- EAN / UPC
- 4710713239517
- Also known as
- Chieftec Smart GPS-400A8 power supply unit 400 W 20+4 pin ATX ATX Black
Specifications
32 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 400 W |
| AC input voltage | 230 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 4 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V1) | 18 A |
| Max output current (+12V2) | 17 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over voltage, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 1 |
| CPU P4 connector (4-pin) | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | No |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 12 cm |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 87 mm |
What people say
Reviews & ratings
Chieftec Smart GPS-400A8 power supply unit
No reviews yet
Be the first to tell others how Chieftec Smart GPS-400A8 power supply unit works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Chieftec Smart GPS-400A8 power supply unit
All power supply unit comparisons- Chieftec Smart GPS-400A8 power supply unit vsChieftec Smart GPS-700A8 power supply unitCompare specs
- Chieftec Smart GPS-400A8 power supply unit vsChieftec SFX-350BS-L power supply unitCompare specs
- Chieftec Smart GPS-400A8 power supply unit vsChieftec Smart GPS-600A8 power supply unitCompare specs
- Chieftec Smart GPS-400A8 power supply unit vsChieftec APS-450SB power supply unitCompare specs
- Chieftec Smart GPS-400A8 power supply unit vsFSP300-50GHS 85+Compare specs
- Chieftec Smart GPS-400A8 power supply unit vsFSP700-50ARN 88+Compare specs
- Chieftec Smart GPS-400A8 power supply unit vsLenovo 46M1075 power supply unitCompare specs

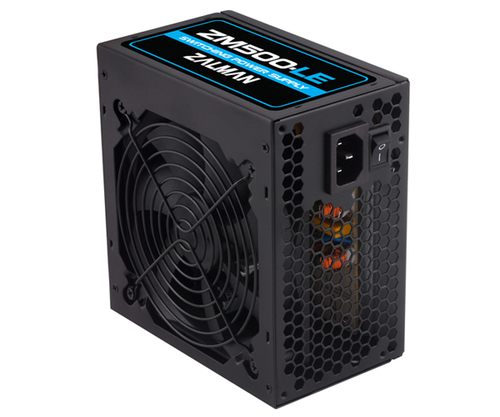

- Chieftec Smart GPS-400A8 power supply unit vsZalman ZM500-LE power supply unitCompare specs
