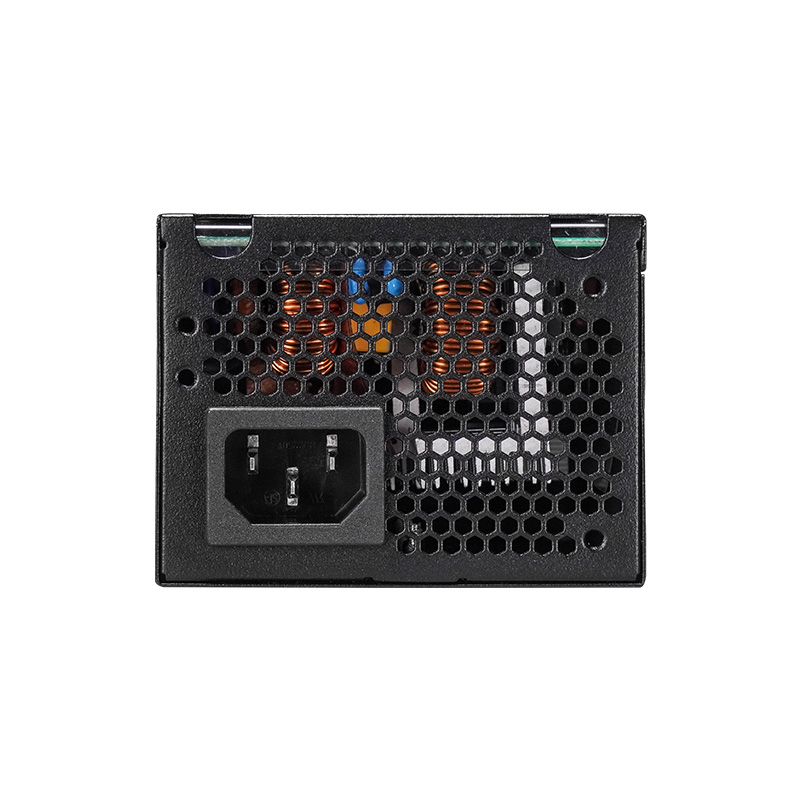

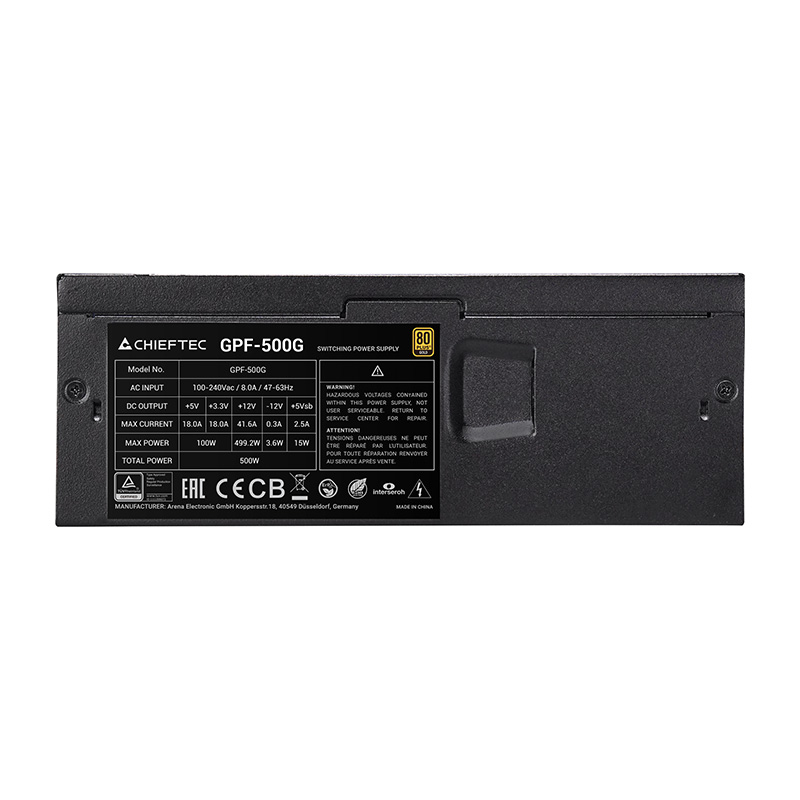

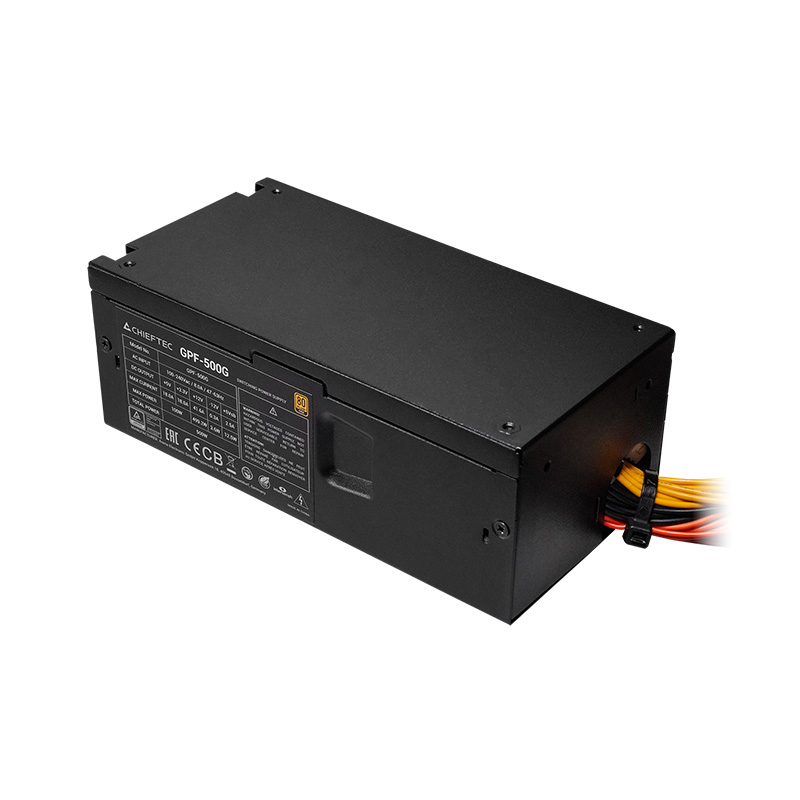

Smart GPF-500G power supply unit
500 W 24-pin ATX TFX Black
Model GPF-500GEAN 753263079459
34 specifications
- Weight1.42 kg
- ColourBlack
- Total power500 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width85 mm
Overview
- Weight
- 1.42 kg
- Colour
- Black
- Total power
- 500 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 85 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- GPF-500G
- Part number
- GPF-500G
- EAN / UPC
- 753263079459
- Also known as
- Chieftec Smart GPF-500G power supply unit 500 W 24-pin ATX TFX Black
Specifications
34 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 8 A |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 41.6 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Overload, Over voltage, Short circuit, Under voltage, Over current, Overheating |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 40 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 350,150 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 350,150 mm |
| Floppy disk drive cable length | 15 cm |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | TFX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.4 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |

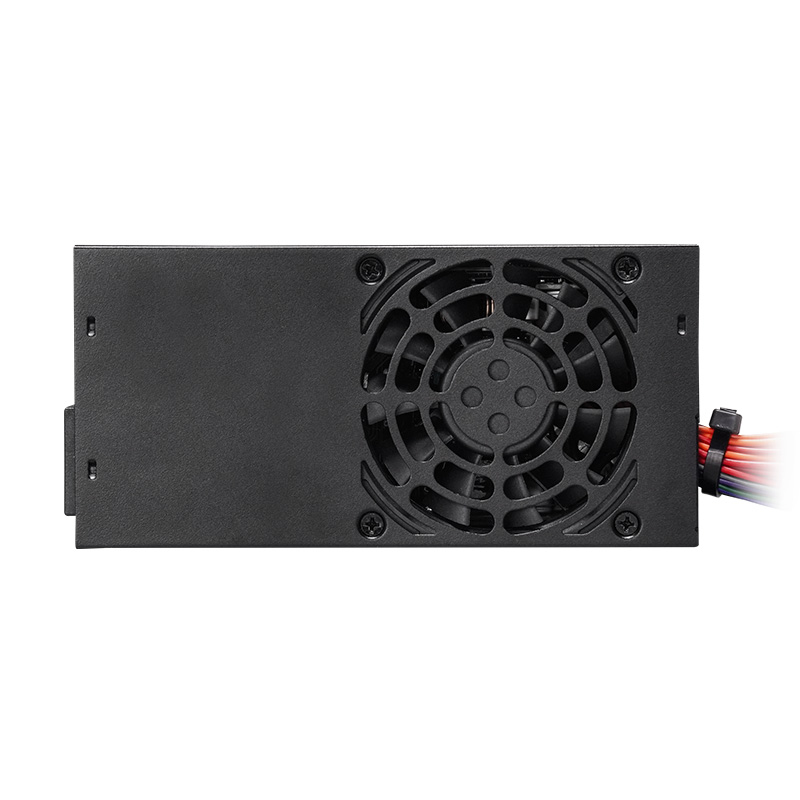

| Fan diameter | 8 cm |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 85 mm |
| Depth | 175 mm |
| Height | 65 mm |
| Weight | 1.42 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.55 kg |
