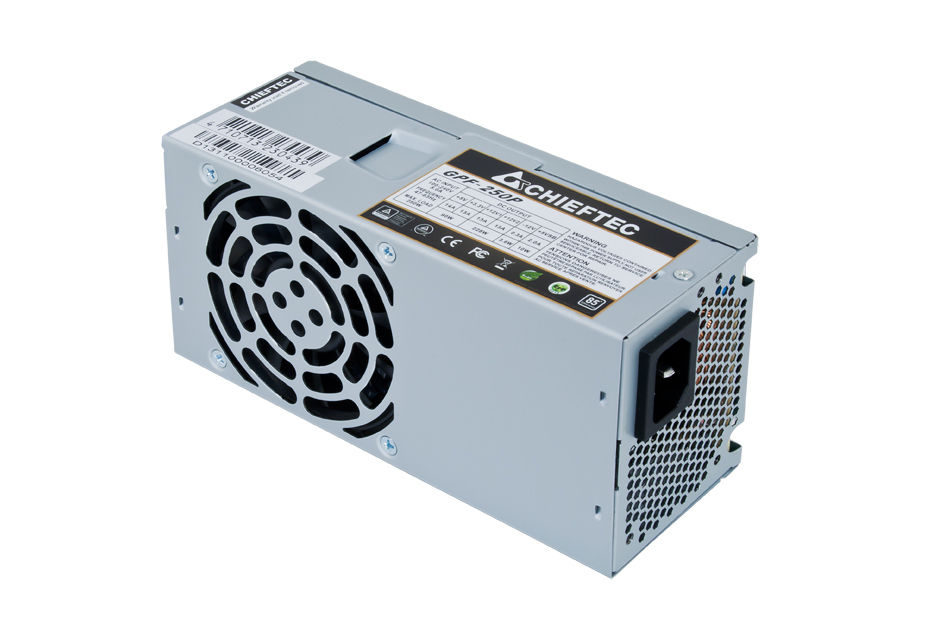

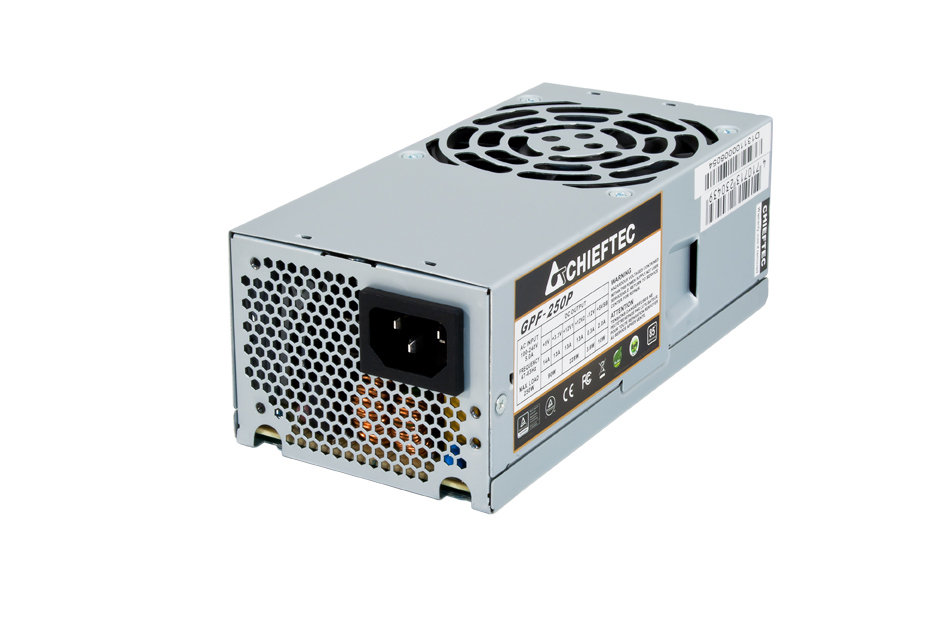

Chieftec GPF-250P power supply unit
250 W 20+4 pin ATX TFX Silver
Model GPF-250PEAN 4710713230439
39 specifications
- ColourSilver
- Total power250 W
- Motherboard power connector20+4 pin ATX
- Power supply unit (PSU) form factorTFX
- Width86 mm
Overview
- Colour
- Silver
- Total power
- 250 W
- Motherboard power connector
- 20+4 pin ATX
- Power supply unit (PSU) form factor
- TFX
- Width
- 86 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- GPF-250P
- Part number
- GPF-250P
- EAN / UPC
- 4710713230439
- Also known as
- Chieftec GPF-250P power supply unit 250 W 20+4 pin ATX TFX Silver
Specifications
39 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 250 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 5 A |
| Maximum input current (@110V) | +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 90 W |
| Combined power (+12V) | 228 W |
| Combined power (+5V) | 90 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 10 W |
| Max output current (+3.3V) | 13 A |
| Max output current (+12V1) | 13 A |
| Max output current (+12V2) | 13 A |
| Max output current (+5V) | 14 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2 A |
| Efficiency | 85% |
| Power protection features | Over voltage, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 2 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (8-pin) | No |
| PCI Express power connectors (6-pin) | 0 |
| PCI Express power connectors (6+2 pin) | 0 |
| CPU P4 connector (4-pin) | 1 |
| ATX power connector (20+4 pin) | Yes |
| Floppy disk drive connector | No |
| Floppy drive power connector | 0 |
| PCI Express connector | No |
Performance
| Specification | Value |
|---|---|
| Power supply unit (PSU) form factor | TFX |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Fan diameter | 8 cm |
| Number of fans | 1 fan(s) |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 86 mm |
| Depth | 175 mm |
| Height | 65 mm |
What people say
Reviews & ratings
Chieftec GPF-250P power supply unit
No reviews yet
Be the first to tell others how Chieftec GPF-250P power supply unit works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Chieftec GPF-250P power supply unit
All power supply unit comparisons- Chieftec GPF-250P power supply unit vsChieftec APS-1000CB power supply unitCompare specs
- Chieftec GPF-250P power supply unit vsChieftec CTG-650-80P power supply unitCompare specs
- Chieftec GPF-250P power supply unit vsChieftec GPA-350B8 power supply unitCompare specs
- Chieftec GPF-250P power supply unit vsChieftec MRW-5600V power supply unit 20+4 pin ATX ATX GreyCompare specs
- Chieftec GPF-250P power supply unit vsbe quiet! Straight Power 10Compare specs
- Chieftec GPF-250P power supply unit vsbe quiet! Straight Power 10 CMCompare specs
- Chieftec GPF-250P power supply unit vsHP 274427-001 power supply unitCompare specs

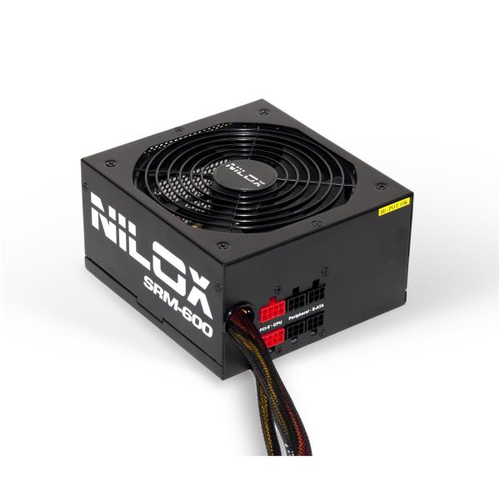

- Chieftec GPF-250P power supply unit vsNilox SRM-600 power supply unitCompare specs
