Chieftec GPC-700S power supply unit
700 W 24-pin ATX PS/2 Silver
Model GPC-700SEAN 4710713234161
27 specifications
- ColourSilver
- Total power700 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width140 mm
Overview
- Colour
- Silver
- Total power
- 700 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 140 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- GPC-700S
- Part number
- GPC-700S
- EAN / UPC
- 4710713234161, 4710713234208
- Also known as
- Chieftec GPC-700S power supply unit 700 W 24-pin ATX PS/2 Silver
Specifications
27 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 700 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Input current | 6.3 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V1) | 52.5 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over voltage, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | PS/2 |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 87 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Compare Chieftec GPC-700S power supply unit

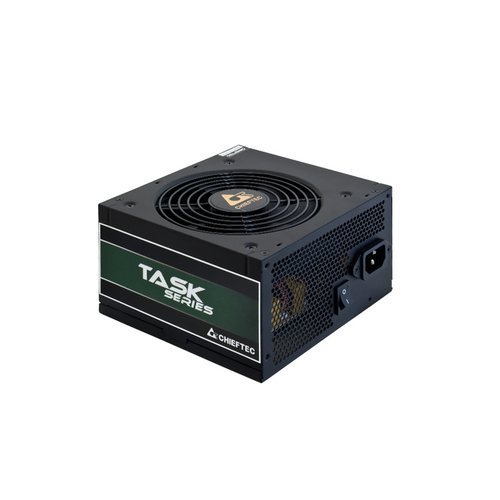

Compare any products- Chieftec GPC-700S power supply unit vsChieftec Task TPS-400S power supply unitCompare specs
- Chieftec GPC-700S power supply unit vsChieftec Value APB-400B8 power supply unitCompare specs
- Chieftec GPC-700S power supply unit vsChieftec GPC-500S power supply unitCompare specs
- Chieftec GPC-700S power supply unit vsChieftec GPE-600S power supply unitCompare specs

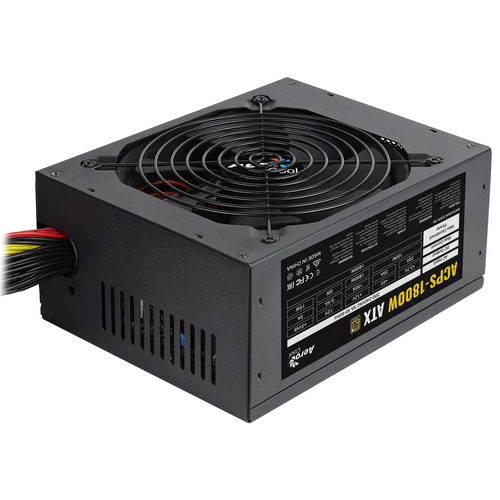

- Chieftec GPC-700S power supply unit vsAerocool ACPS1800 power supply unitCompare specs

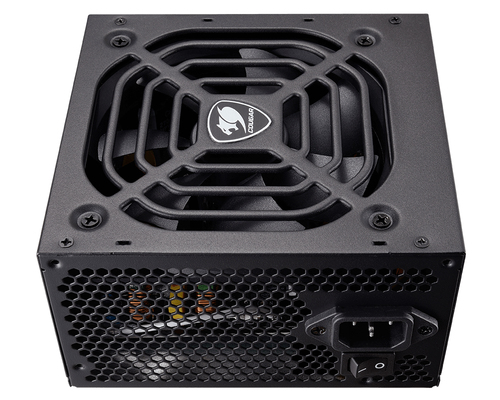

- Chieftec GPC-700S power supply unit vsCOUGAR VTE600 power supply unitCompare specs

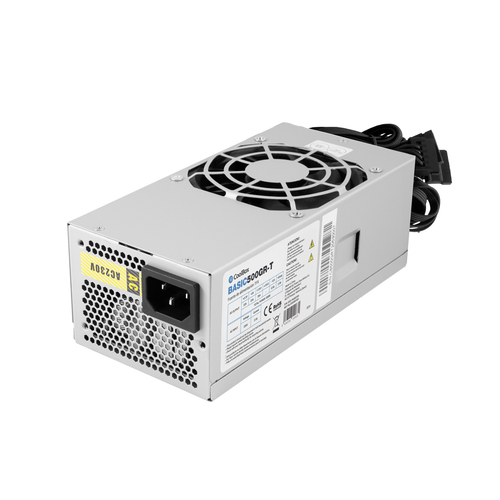

- Chieftec GPC-700S power supply unit vsCoolBox BASIC500GR-T power supply unitCompare specs

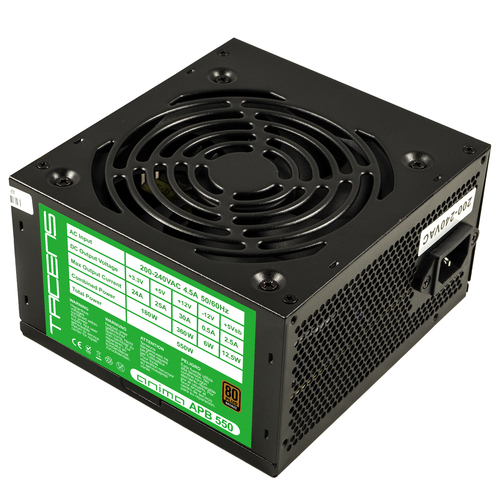

- Chieftec GPC-700S power supply unit vsTacens Anima APB550 power supply unitCompare specs
