Chieftec GPB-350S power supply unit
350 W 20+4 pin ATX PS/2 Silver
Model GPB-350SEAN 4710713233614
40 specifications
- ColourSilver
- Total power350 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width140 mm
Overview
- Colour
- Silver
- Total power
- 350 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 140 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- GPB-350S
- Part number
- GPB-350S
- EAN / UPC
- 4710713233614
- Also known as
- Chieftec GPB-350S power supply unit 350 W 20+4 pin ATX PS/2 Silver
Specifications
40 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 350 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 3 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 90 W |
| Combined power (+12V) | 312 W |
| Combined power (+5V) | 90 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 16 A |
| Max output current (+12V1) | 26 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 85% |
| Power protection features | Over voltage, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | PS/2 |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 87 mm |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Other features
| Specification | Value |
|---|---|
| Warranty card | Yes |
Compare Chieftec GPB-350S power supply unit
Compare any products- Chieftec GPB-350S power supply unit vsChieftec PSF-400B power supply unitCompare specs
- Chieftec GPB-350S power supply unit vsChieftec MRW-5600G power supply unitCompare specs
- Chieftec GPB-350S power supply unit vsChieftec GPB-500S power supply unitCompare specs
- Chieftec GPB-350S power supply unit vsChieftec GPB-450S power supply unitCompare specs

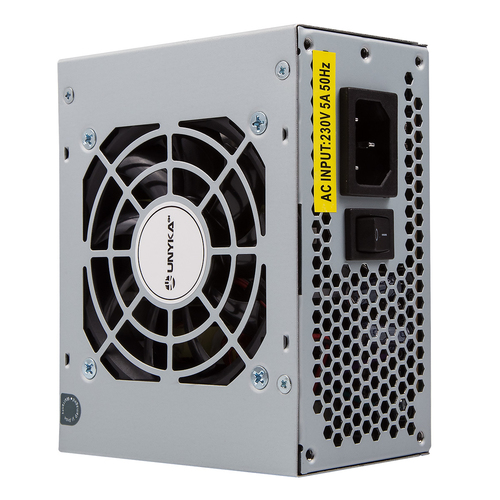

- Chieftec GPB-350S power supply unit vsUNYKAch TFX 350WCompare specs
- Chieftec GPB-350S power supply unit vsUNYKAch SFX 450WCompare specs

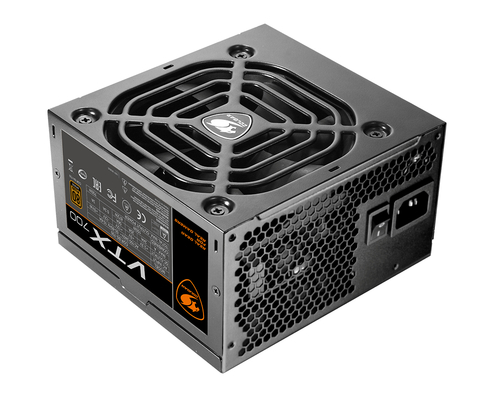

- Chieftec GPB-350S power supply unit vsCOUGAR VTX400 power supply unitCompare specs
