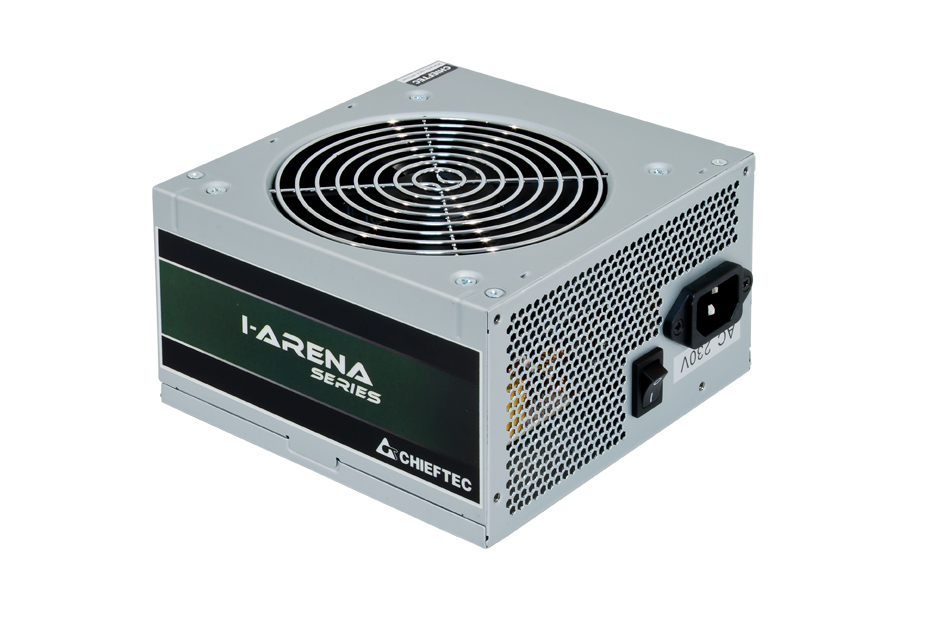

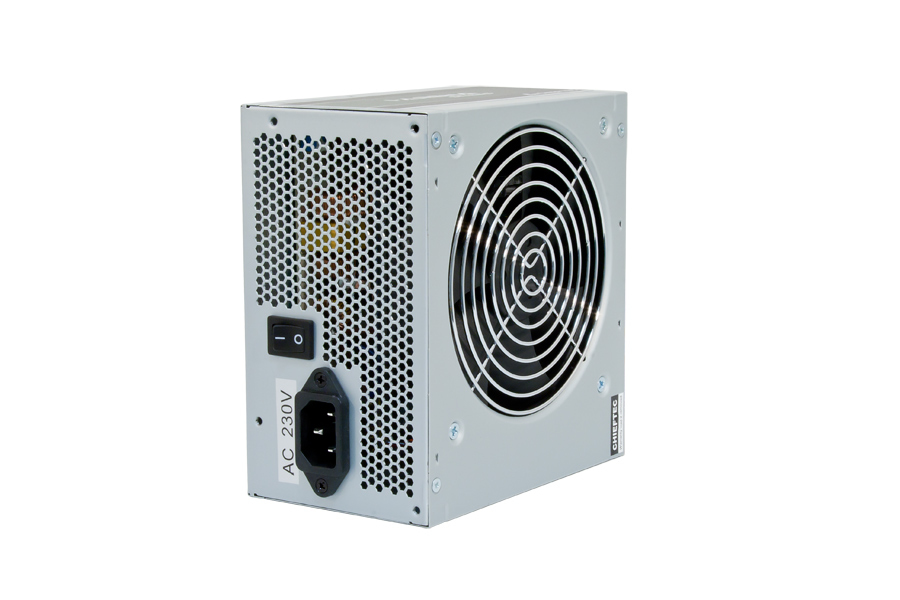

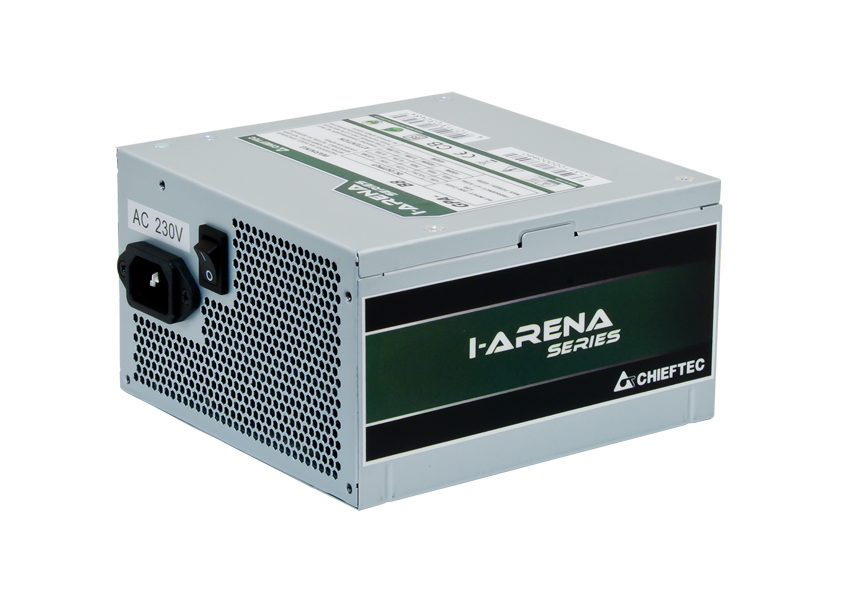

Chieftec GPA-350B8 power supply unit
350 W 20+4 pin ATX PS/2 Metallic
Model GPA-350B8EAN 4710713230736
31 specifications
- ColourMetallic
- Total power350 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Colour
- Metallic
- Total power
- 350 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- GPA-350B8
- Part number
- GPA-350B8
- EAN / UPC
- 4710713230736
- Also known as
- Chieftec GPA-350B8 power supply unit 350 W 20+4 pin ATX PS/2 Metallic
Specifications
31 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 350 W |
| AC input voltage | 230 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 3 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 12 A |
| Max output current (+12V1) | 15 A |
| Max output current (+12V2) | 15 A |
| Max output current (+5V) | 17 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over voltage, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6-pin) | 0 |
| PCI Express power connectors (6+2 pin) | 0 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | PS/2 |
Design
| Specification | Value |
|---|---|
| Product colour | Metallic |
| Fan diameter | 12 cm |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 87 mm |
