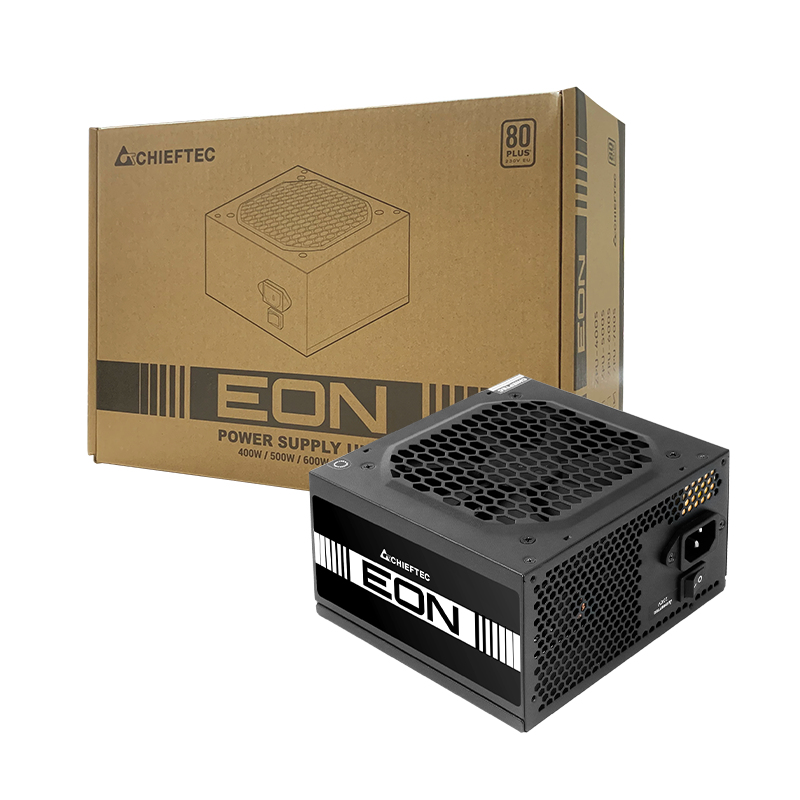

EON power supply unit
600 W 20+4 pin ATX ATX Black
Model EONPart no. ZPU-700SEAN 753263078445
38 specifications
- Weight1.34 kg
- ColourBlack
- Total power600 W
- Motherboard power connector20+4 pin ATX
- PurposePC/Server
- Width150 mm
Overview
- Weight
- 1.34 kg
- Colour
- Black
- Total power
- 600 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC/Server
- Width
- 150 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- EON
- Part numbers
- ZPU-700S, ZPU-600S
- EAN / UPC
- 753263078445, 753263078438, 7532630784386, 7532630784454
- Also known as
- Chieftec EON power supply unit 600 W 20+4 pin ATX ATX Black
Specifications
38 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 600 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 Hz |
| Input current | 4.5 A |
| Maximum input current (@220V) | 4.5 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (-12V) | 4.8 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V1) | 45 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.4 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Short circuit, Surge and inrush, Surge protection |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 65 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 450,600,750 mm |
| Peripheral (Molex) power cable length | 450,600,750 mm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS |
| Supported motherboard form factors | ATX |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 12 cm |
| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.34 kg |
Logistics data
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
