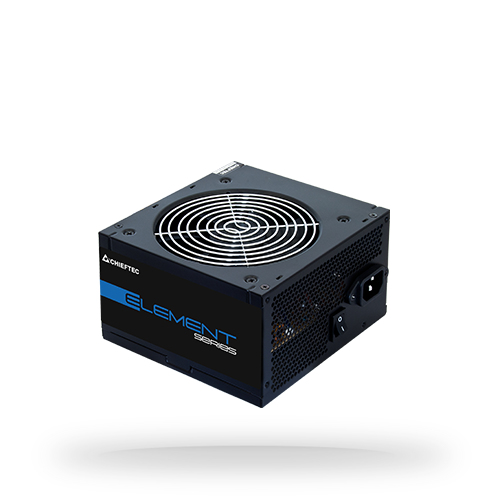

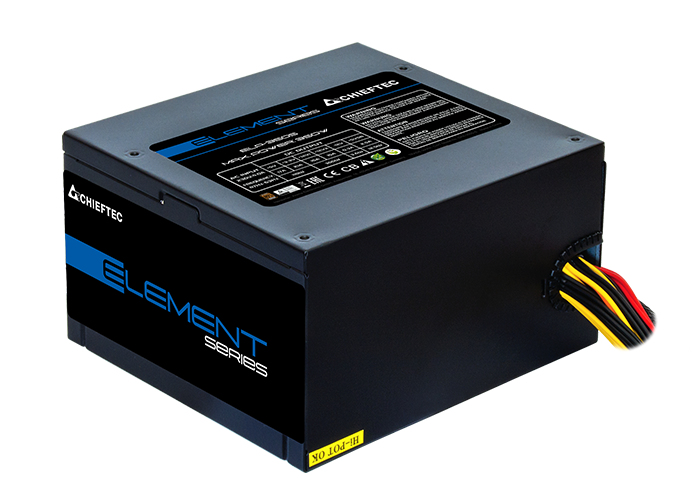

ELP-600S power supply unit
600 W 20+4 pin ATX PS/2 Black
Model ELP-600SEAN 4710713230965
37 specifications
- ColourBlack
- Total power600 W
- Motherboard power connector20+4 pin ATX
- PurposePC/Server
- Width140 mm
Overview
- Colour
- Black
- Total power
- 600 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC/Server
- Width
- 140 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- ELP-600S
- Part number
- ELP-600S
- EAN / UPC
- 4710713230965, 4710713231061
- Also known as
- Chieftec ELP-600S power supply unit 600 W 20+4 pin ATX PS/2 Black
Specifications
37 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 600 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 4.5 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 552 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 46 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 85% |
| Power protection features | Over voltage, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of PATA power connectors | 1 |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 2 |
| ATX power connector (20+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | PS/2 |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 87 mm |
