Chieftec CTG-750C power supply unit
750 W 24-pin ATX ATX Black
Model CTG-750CEAN 4710713239388
46 specifications
- ColourBlack
- Total power750 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width150 mm
Overview
- Colour
- Black
- Total power
- 750 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- CTG-750C
- Part number
- CTG-750C
- EAN / UPC
- 4710713239388
- Also known as
- Chieftec CTG-750C power supply unit 750 W 24-pin ATX ATX Black
Specifications
46 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Input current | 6 A |
| Maximum input current (@110V) | +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 648 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V1) | 35 A |
| Max output current (+12V2) | 35 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 85% |
| Power protection features | Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU P4 connector (4-pin) | 1 |
| Floppy drive power connector | 2 |
| CPU power connectors (8-pin) | 1 |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS |
| ATX version | 2.3 |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, CB, FCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 87 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Compare Chieftec CTG-750C power supply unit
Compare any products- Chieftec CTG-750C power supply unit vsChieftec SPS-1000C power supply unitCompare specs
- Chieftec CTG-750C power supply unit vsChieftec Smart GPS-500A8 power supply unitCompare specs
- Chieftec CTG-750C power supply unit vsChieftec CTG-650C power supply unitCompare specs
- Chieftec CTG-750C power supply unit vsChieftec CTG-550C power supply unitCompare specs
- Chieftec CTG-750C power supply unit vsDell 6W6M1 power supply unitCompare specs

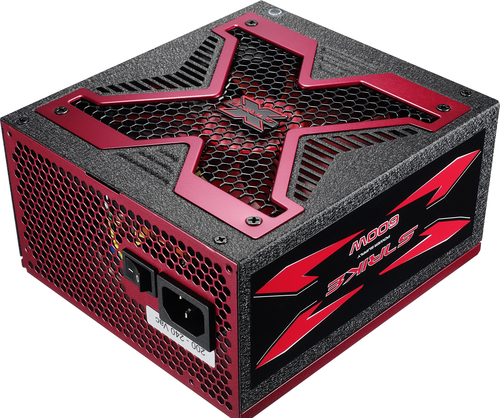

- Chieftec CTG-750C power supply unit vsAerocool Strike-X 600MCompare specs
- Chieftec CTG-750C power supply unit vsZalman ZM550-XG power supply unitCompare specs

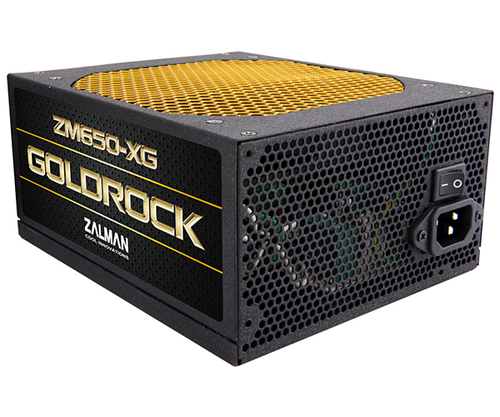

- Chieftec CTG-750C power supply unit vsZalman ZM650-XG power supply unitCompare specs
