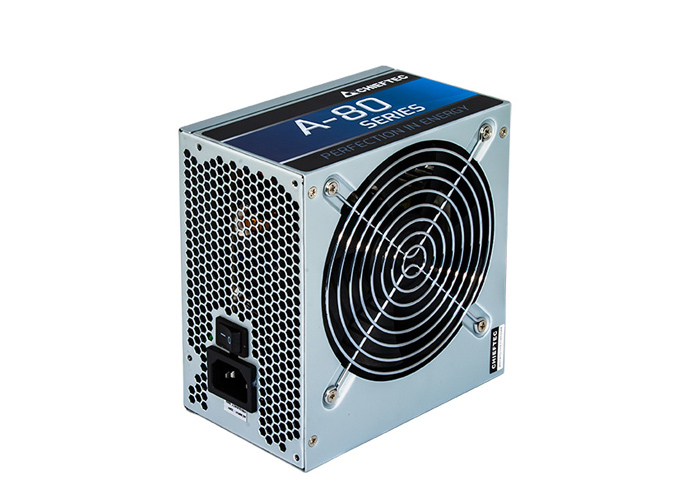

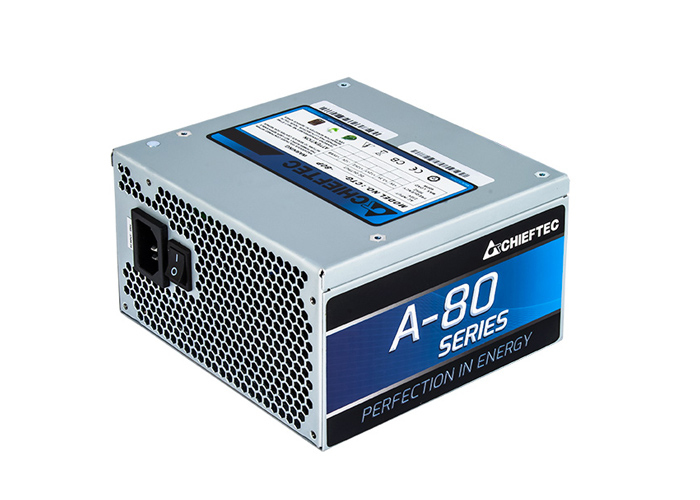

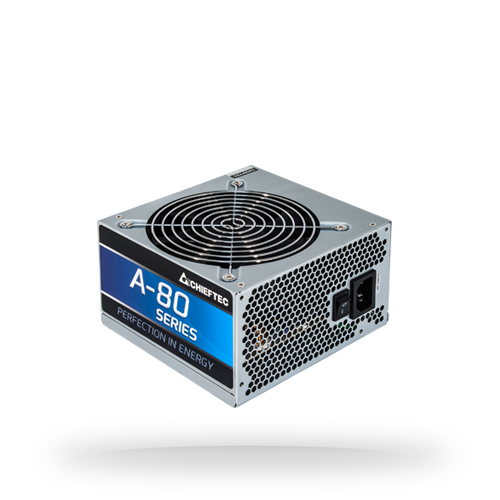

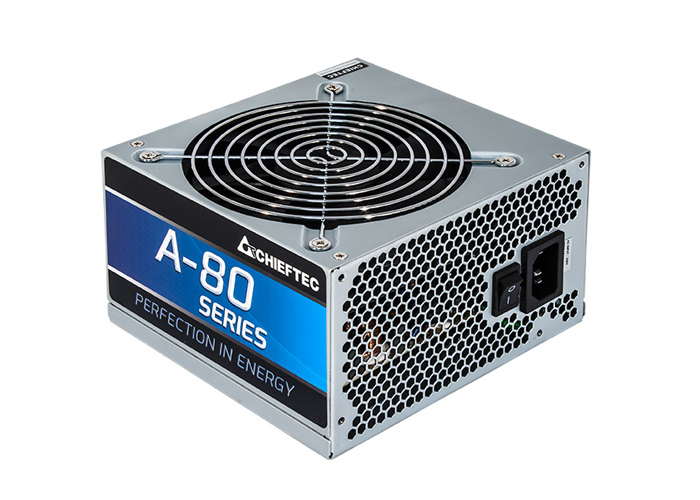

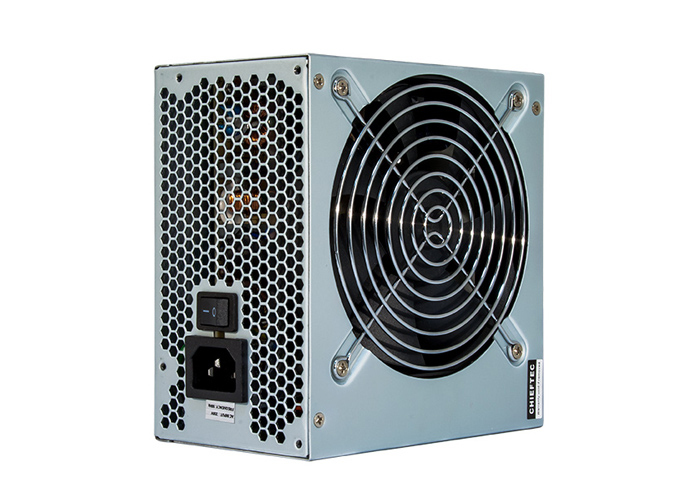

Chieftec CTG-650-80P power supply unit
650 W 24-pin ATX PS/2 Silver
Model CTG-650-80PEAN 4710713230682
26 specifications
- ColourSilver
- Total power650 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width150 mm
Overview
- Colour
- Silver
- Total power
- 650 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- CTG-650-80P
- Part number
- CTG-650-80P
- EAN / UPC
- 4710713230682
- Also known as
- Chieftec CTG-650-80P power supply unit 650 W 24-pin ATX PS/2 Silver
Specifications
26 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 650 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Input current | 6.3 A |
| Combined power (+12V) | 552 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Efficiency | 85% |
| Power protection features | Over voltage, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | PS/2 |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Fan diameter | 12 cm |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 87 mm |
