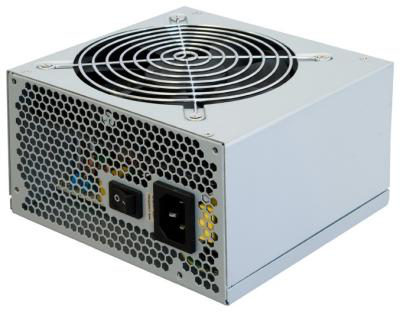

Chieftec CTG-550-80P power supply unit
550 W ATX Grey
Model CTG-550-80PEAN 4710713238732
32 specifications
- ColourGrey
- Total power550 W
- Cabling typeNon-Modular
- PurposePC
- Width150 mm
Overview
- Colour
- Grey
- Total power
- 550 W
- Cabling type
- Non-Modular
- Purpose
- PC
- Width
- 150 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- CTG-550-80P
- Part numbers
- CTG-550-80P, CTG-550-80P, RETAIL
- EAN / UPC
- 4710713238732
- Also known as
- Chieftec CTG-550-80P power supply unit 550 W ATX Grey
Specifications
32 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 550 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Input current | 5 A |
| Maximum input current (@110V) | +12V1,+12V2,+12V3,+12V4,+3.3V,+5V,+5Vsb,-12V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 150 W |
| Combined power (+5V) | 150 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V1) | 25 A |
| Max output current (+12V2) | 25 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 80% |
| Power protection features | Over current, Over power, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 87 mm |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 150 x 140 x 87 mm |
