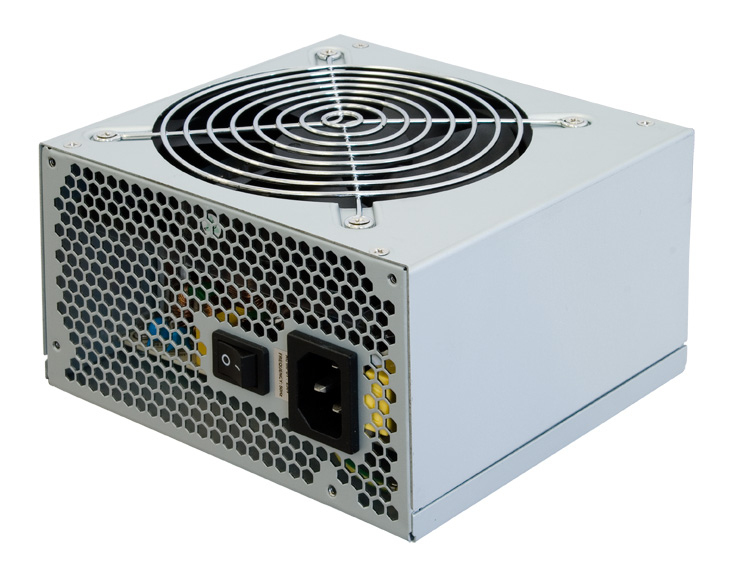

Chieftec CTG-450-80P power supply unit
450 W
Model CTG-450-80PPart no. CTG-450-80P-BEAN 4710713238220
19 specifications
- Noise24 dB
- Total power450 W
- Number of SATA power connectors4
- Fan diameter12 cm
Overview
- Noise
- 24 dB
- Total power
- 450 W
- Number of SATA power connectors
- 4
- Fan diameter
- 12 cm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- CTG-450-80P
- Part numbers
- CTG-450-80P-B, CTG-450-80P, CTG-450-80P RETAIL
- EAN / UPC
- 4710713238220
- Also known as
- Chieftec CTG-450-80P power supply unit 450 W
Specifications
19 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 450 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Input current | 3.5 A |
| Efficiency | 80% |
| Power protection features | Over current, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | Yes |
| PCI Express power connectors (6-pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Noise level | 24 dB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Fan diameter | 12 cm |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 150 x 140 x 87 mm |
| Power over Ethernet (PoE) | No |
| Redundant power supply (RPS) support | No |
