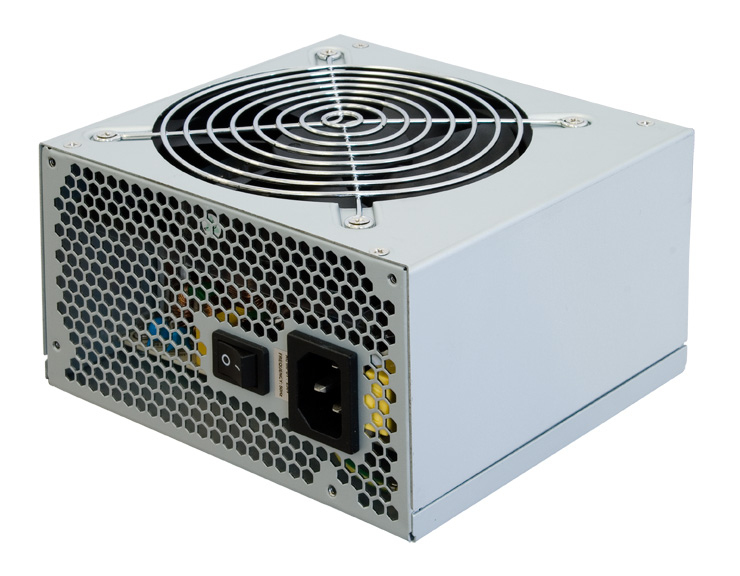

Chieftec CTB-450S power supply unit
450 W 24-pin ATX ATX Grey
Model CTB-450SEAN 4710713238985
32 specifications
- Noise24 dB
- ColourGrey
- Total power450 W
- Motherboard power connector24-pin ATX
- PurposePC
Overview
- Noise
- 24 dB
- Colour
- Grey
- Total power
- 450 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- CTB-450S
- Part number
- CTB-450S
- EAN / UPC
- 4710713238985
- Also known as
- Chieftec CTB-450S power supply unit 450 W 24-pin ATX ATX Grey
Specifications
32 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 450 W |
| Peak power | 450 W |
| AC input voltage | 230 V |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 350 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over current, Over voltage, Overload, Short circuit, Under voltage, Overheating |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6-pin) | 1 |
| CPU P4 connector (4-pin) | 1 |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS |
| ATX version | 2.3 |
| Noise level | 24 dB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, CB, RoHS |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 150 x 140 x 87 mm |
