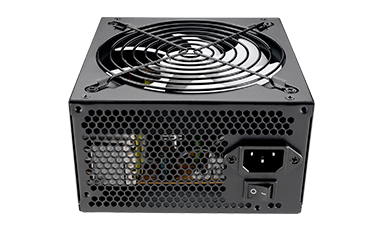

Chieftec CSN-550C power supply unit
550 W 20+4 pin ATX PS/2 Black
Model CSN-550CEAN 4710713235762
34 specifications
- ColourBlack
- Total power550 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width125 mm
Overview
- Colour
- Black
- Total power
- 550 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 125 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- CSN-550C
- Part number
- CSN-550C
- EAN / UPC
- 4710713235762
- Also known as
- Chieftec CSN-550C power supply unit 550 W 20+4 pin ATX PS/2 Black
Specifications
34 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 550 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 6 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 90 W |
| Combined power (+5V) | 90 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V1) | 45.8 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | PS/2 |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 8 cm |
| Number of fans | 1 fan(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 100 mm |
| Height | 64 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
