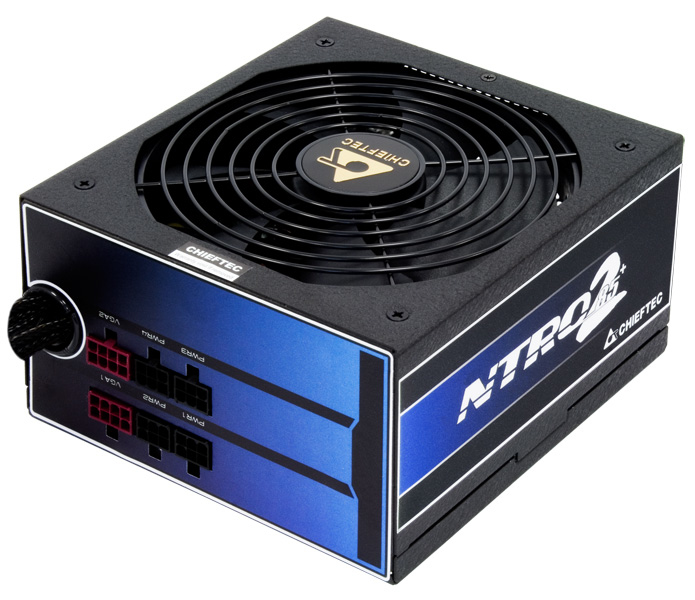

Chieftec BPS-750C2 power supply unit
750 W 20+4 pin ATX ATX Black
Model BPS-750C2EAN 4710713239210
43 specifications
- ColourBlack
- Total power750 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Colour
- Black
- Total power
- 750 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- BPS-750C2
- Part number
- BPS-750C2
- EAN / UPC
- 4710713239210
- Also known as
- Chieftec BPS-750C2 power supply unit 750 W 20+4 pin ATX ATX Black
Specifications
43 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 10 A |
| Maximum input current (@110V) | +12V1,+3.3V,+5V,+5Vsb,-12V |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 744 W |
| Combined power (+5V) | 130 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V1) | 62 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 85% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6-pin) | 0 |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (8-pin) | 0 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| CPU power connectors (8-pin) | 1 |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.3 |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, CB, FCC, cULus |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 160 mm |
| Height | 87 mm |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
What people say
Reviews & ratings
Chieftec BPS-750C2 power supply unit
No reviews yet
Be the first to tell others how Chieftec BPS-750C2 power supply unit works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Chieftec BPS-750C2 power supply unit
All power supply unit comparisons- Chieftec BPS-750C2 power supply unit vsChieftec GPS-500C power supply unitCompare specs

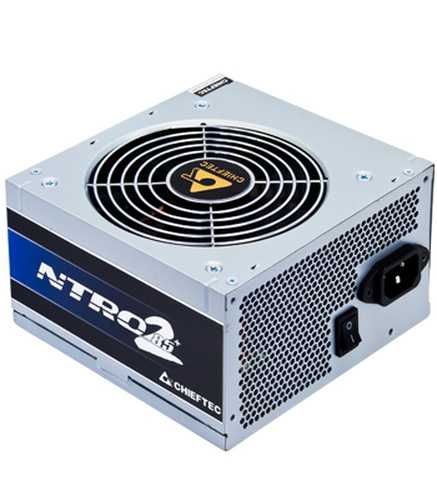

- Chieftec BPS-750C2 power supply unit vsChieftec NITRO II 85+Compare specs
- Chieftec BPS-750C2 power supply unit vsChieftec Smart GPS-500A8 power supply unitCompare specs
- Chieftec BPS-750C2 power supply unit vsChieftec SPS-1000C power supply unitCompare specs
- Chieftec BPS-750C2 power supply unit vsTacens Radix EcoCompare specs
- Chieftec BPS-750C2 power supply unit vsHP 512327-B21 power supply unitCompare specs

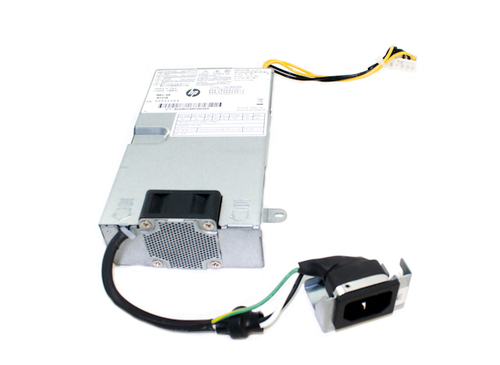

- Chieftec BPS-750C2 power supply unit vsHP 698202-001 power supply unitCompare specs
