Chieftec BDF-1000C power supply unit
1000 W 20+4 pin ATX PS/2 Black
Model BDF-1000CEAN 4710713231313
38 specifications
- ColourBlack
- Total power1000 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Colour
- Black
- Total power
- 1000 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- BDF-1000C
- Part number
- BDF-1000C
- EAN / UPC
- 4710713231313
- Also known as
- Chieftec BDF-1000C power supply unit 1000 W 20+4 pin ATX PS/2 Black
Specifications
38 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 1000 W |
| AC input voltage | 115 - 230 V |
| AC input frequency | 50 - 60 Hz |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 140 W |
| Combined power (+5V) | 140 W |
| Max output current (+3.3V) | 23 A |
| Max output current (+12V) | 54.2 A |
| Max output current (+5V) | 23 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 85% |
| Power protection features | Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 9 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 6 |
| CPU power connector (4+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | PS/2 |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 87 mm |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Other features
| Specification | Value |
|---|---|
| Warranty card | Yes |
Compare Chieftec BDF-1000C power supply unit
Compare any products- Chieftec BDF-1000C power supply unit vsChieftec GPS-1450C power supply unitCompare specs
- Chieftec BDF-1000C power supply unit vsChieftec GPS-1350C power supply unitCompare specs
- Chieftec BDF-1000C power supply unit vsChieftec BDF-650C power supply unitCompare specs
- Chieftec BDF-1000C power supply unit vsChieftec BDF-850C power supply unitCompare specs

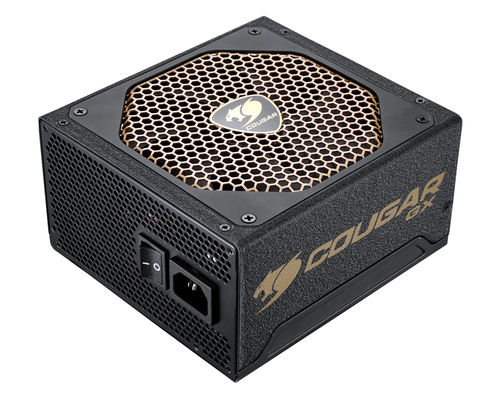

- Chieftec BDF-1000C power supply unit vsCOUGAR GX 1050Compare specs
- Chieftec BDF-1000C power supply unit vsLenovo ThinkSystem 750W 230V Titanium Hot-SwapCompare specs
- Chieftec BDF-1000C power supply unit vsLenovo 7N67A00883 power supply unitCompare specs

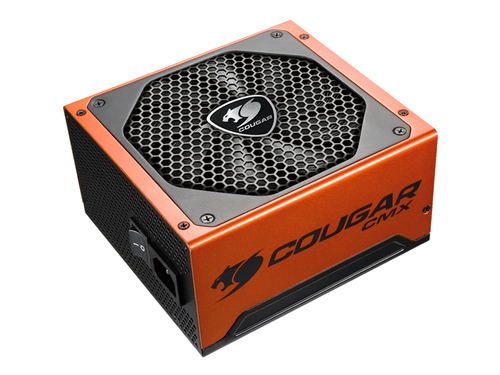

- Chieftec BDF-1000C power supply unit vsCOUGAR CMX 1000 (v.3)Compare specs
