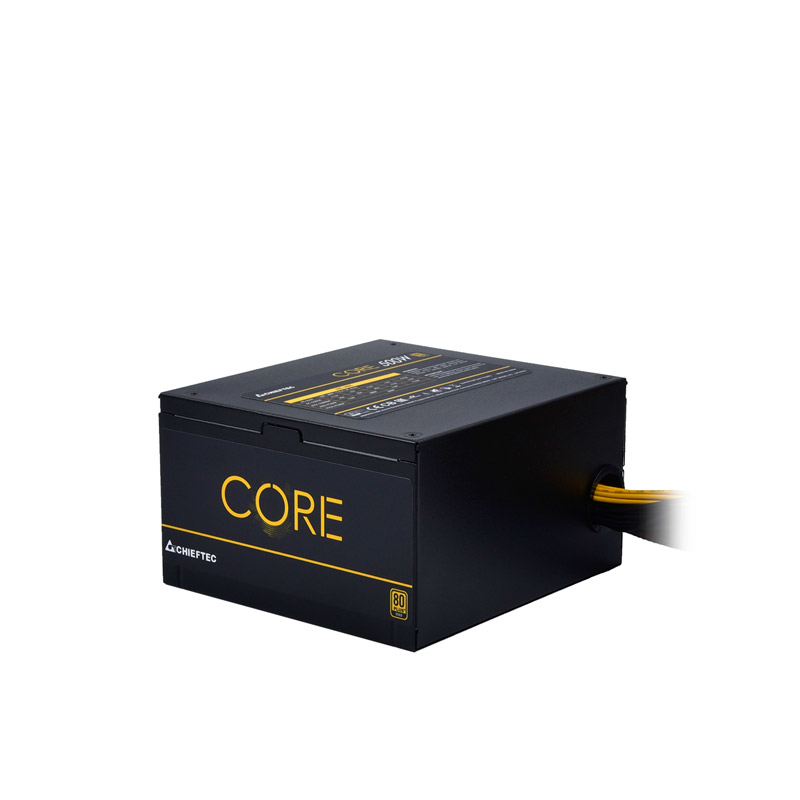

Core BBS-500S power supply unit
500 W 24-pin ATX PS/2 Black
Model BBS-500SEAN 753263076120
39 specifications
- Weight1.65 kg
- ColourBlack
- Total power500 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width140 mm
Overview
- Weight
- 1.65 kg
- Colour
- Black
- Total power
- 500 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 140 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- BBS-500S
- Part number
- BBS-500S
- EAN / UPC
- 753263076120, 7532630761202
- Also known as
- Chieftec Core BBS-500S power supply unit 500 W 24-pin ATX PS/2 Black
Specifications
39 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 8 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V1) | 41 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over voltage, Overload, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 4 |
| SATA power cable length | 150,500 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 150,500 mm |
| PCI Express power connectors (6+2 pin) | 1 |
| PCI Express power cable length | 50 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 65 cm |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | PS/2 |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.65 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 2.06 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
