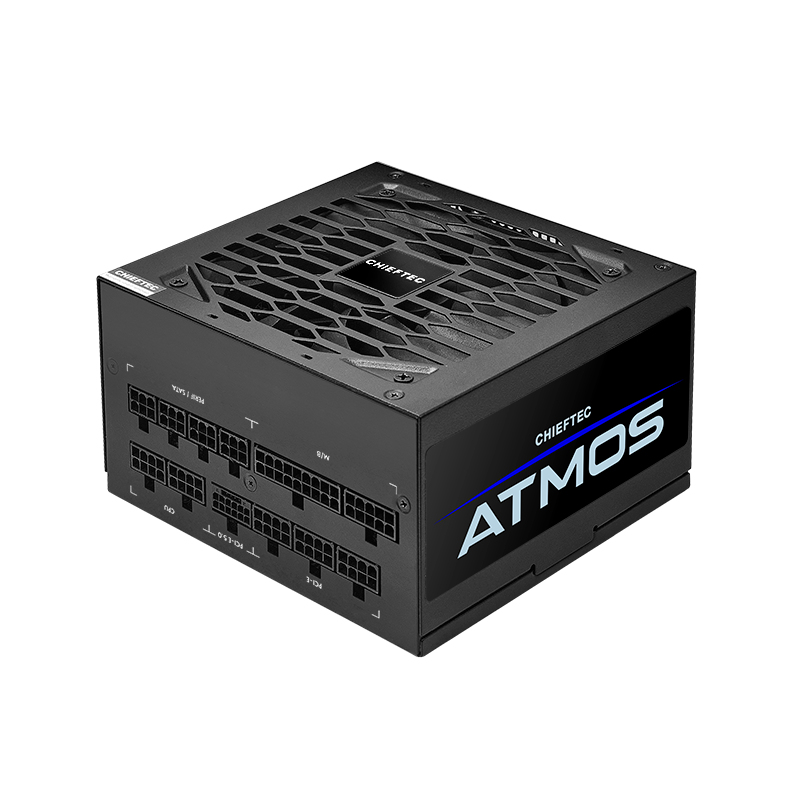

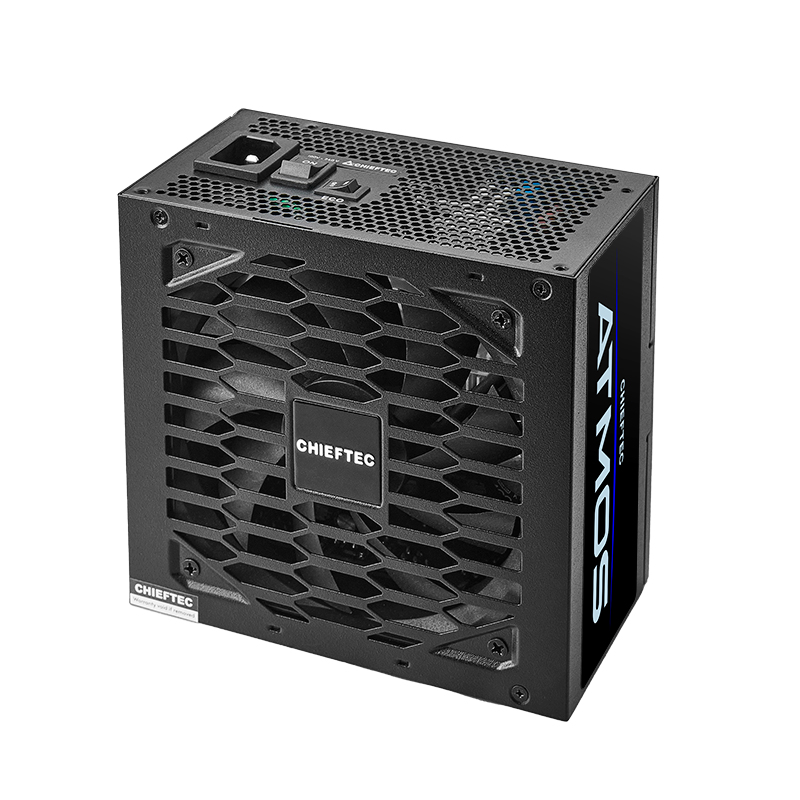

Atmos power supply unit
750 W 20+4 pin ATX ATX Black
Model ATMOSPart no. CPX-750FCEAN 753263078391
36 specifications
- Weight1.49 kg
- ColourBlack
- Total power750 W
- Motherboard power connector20+4 pin ATX
- PurposePC/Server
- Width150 mm
Overview
- Weight
- 1.49 kg
- Colour
- Black
- Total power
- 750 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC/Server
- Width
- 150 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- ATMOS
- Part numbers
- CPX-750FC, CPX-850FC
- EAN / UPC
- 753263078391, 753263078407, 7532630784072
- Also known as
- Chieftec Atmos power supply unit 750 W 20+4 pin ATX ATX Black
Specifications
36 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 9 - 4.5 A |
| Maximum input current (@110V) | 9 A |
| Maximum input current (@220V) | 4.5 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V1) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over voltage, Short circuit, Surge and inrush |

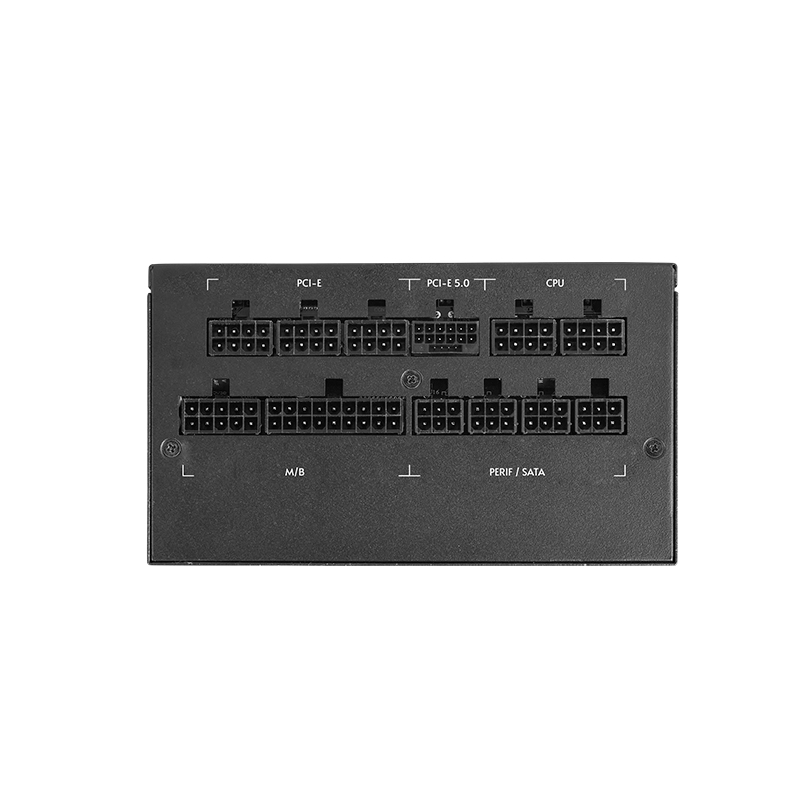

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 9 |
| SATA power cable length | 550,650,750 mm |
| Peripheral (Molex) power cable length | 550,650,750,850 mm |
| EPS power connector (4+4 pin) | Yes |

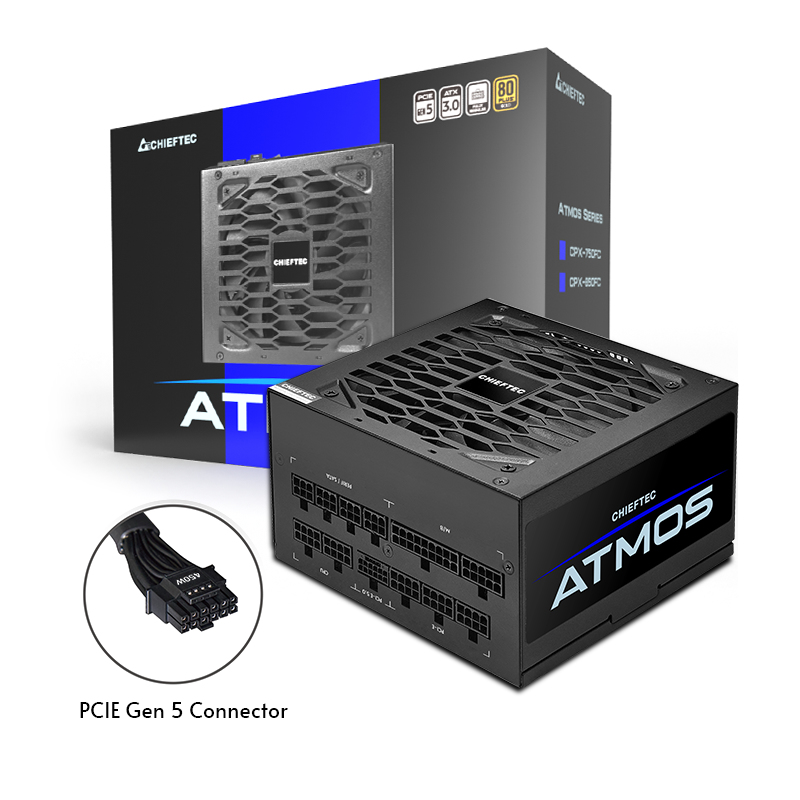

| PCI Express power connectors (16-pin) | 1 |
| CPU power cable length | 60 cm |
| ATX power connector (20+4 pin) | Yes |

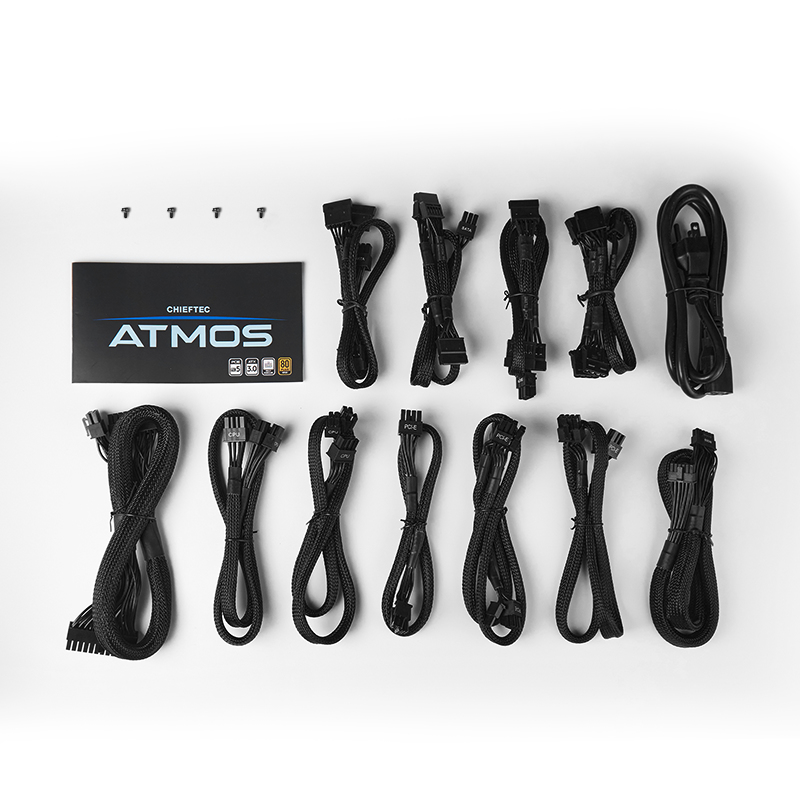

| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Supported motherboard form factors | ATX |
| ATX version | 3.0 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |

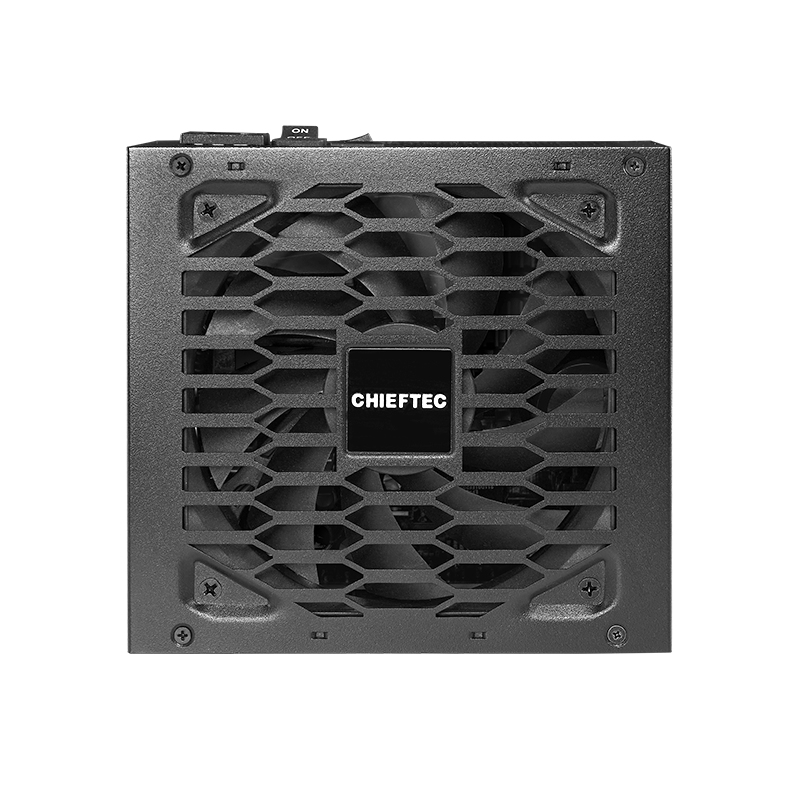

| Fan diameter | 12 cm |

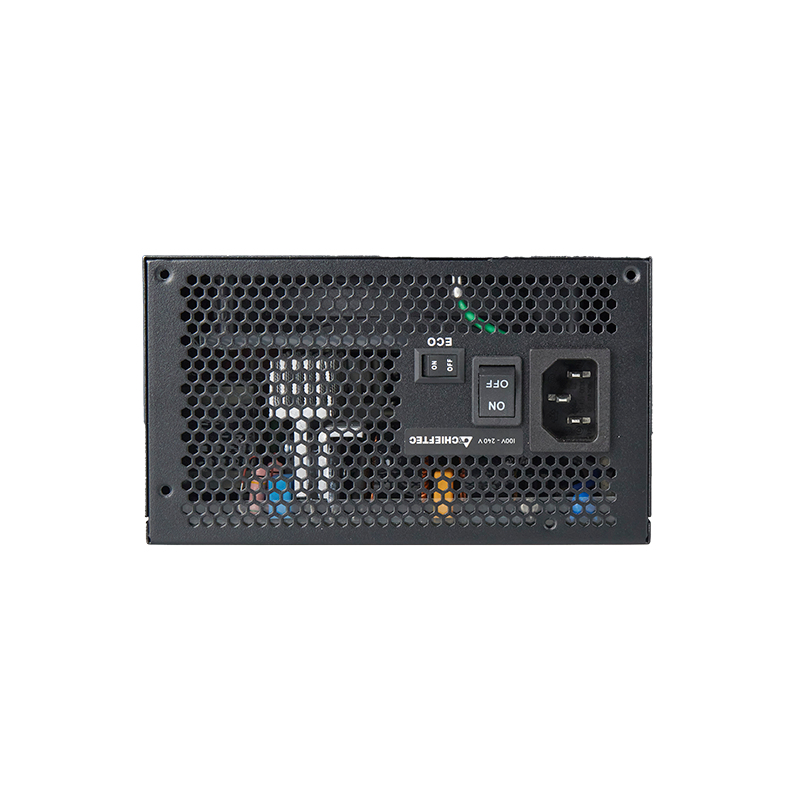

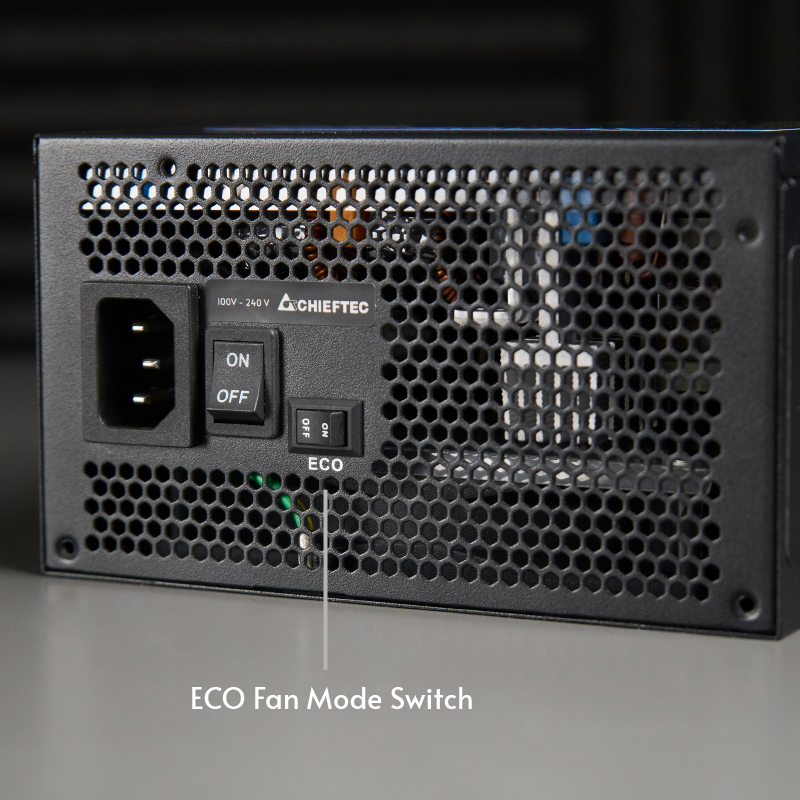

| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.49 kg |
