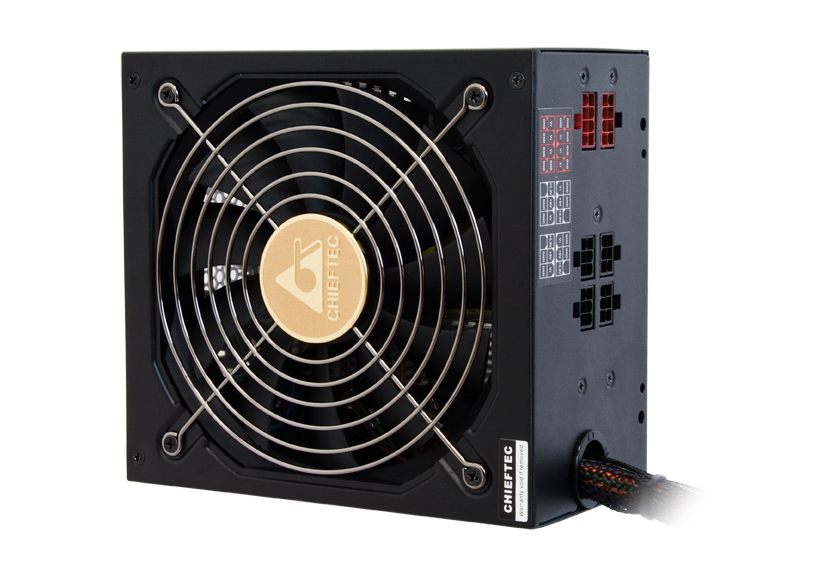

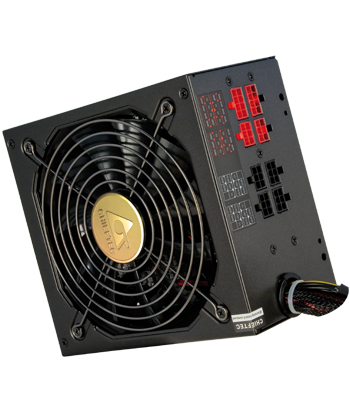

Chieftec APS-750CB power supply unit 24-pin ATX PS/2 Black
Model APS-750CBEAN 4710713239869
32 specifications
- ColourBlack
- Peak power750 W
- Motherboard power connector24-pin ATX
- Power supply unit (PSU) form factorPS/2
- Width150 mm
Overview
- Colour
- Black
- Peak power
- 750 W
- Motherboard power connector
- 24-pin ATX
- Power supply unit (PSU) form factor
- PS/2
- Width
- 150 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- APS-750CB
- Part number
- APS-750CB
- EAN / UPC
- 4710713239869
- Also known as
- Chieftec APS-750CB power supply unit 24-pin ATX PS/2 Black
Specifications
32 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Peak power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V1) | 35 A |
| Max output current (+12V2) | 35 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 85% |
| Power protection features | Over current, Over voltage, Overheating, Overload, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 9 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 4 |
| Floppy drive power connector | 1 |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Power supply unit (PSU) form factor | PS/2 |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.3 |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | ATI Crossfire / Nvidia SLI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 155 mm |
| Height | 87 mm |
