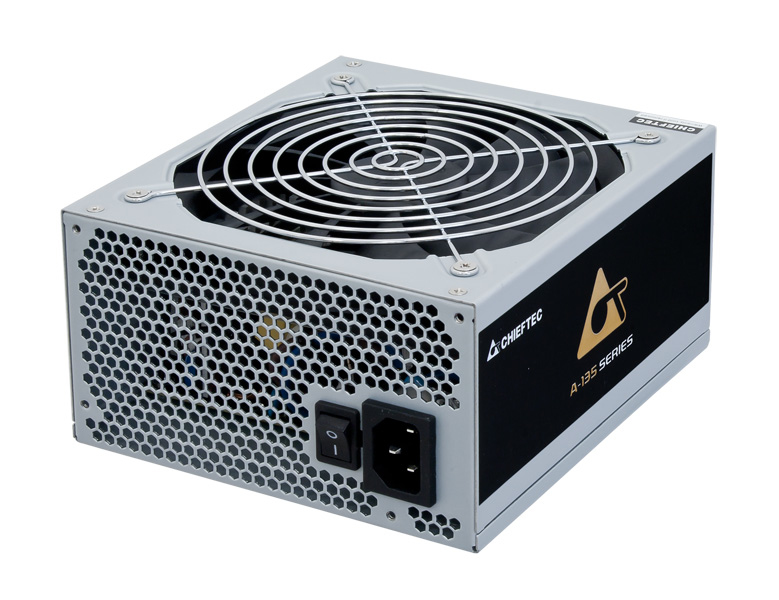

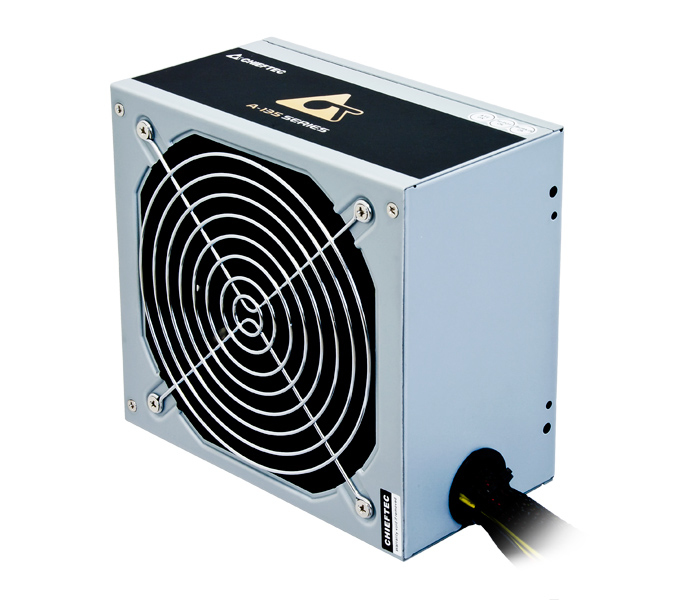

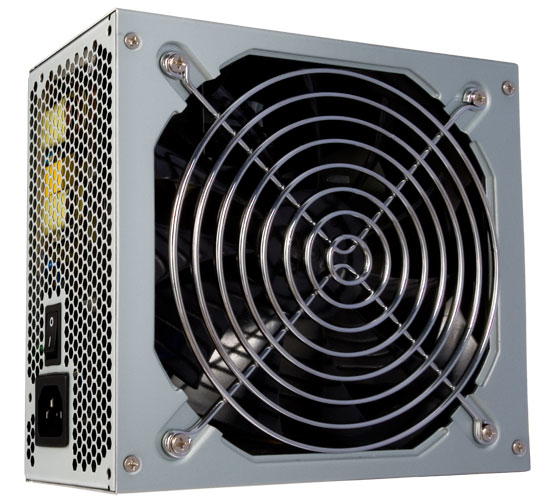

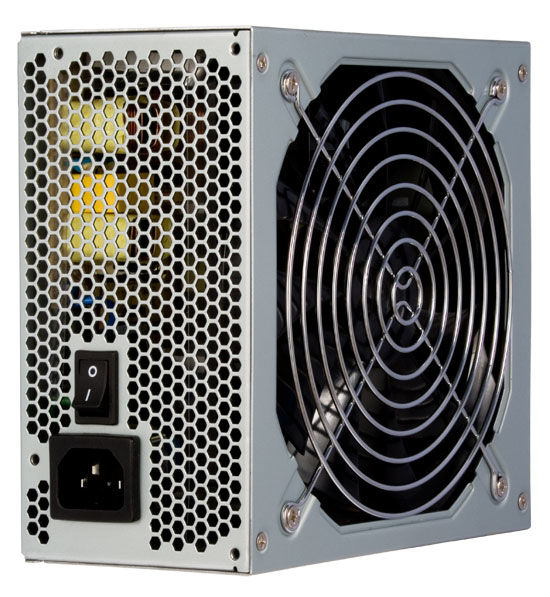

Chieftec APS-650SB power supply unit
650 W 24-pin ATX PS/2 Silver
Model APS-650SBEAN 4710713239838
29 specifications
- ColourSilver
- Total power650 W
- Motherboard power connector24-pin ATX
- Power supply unit (PSU) form factorPS/2
- Width150 mm
Overview
- Colour
- Silver
- Total power
- 650 W
- Motherboard power connector
- 24-pin ATX
- Power supply unit (PSU) form factor
- PS/2
- Width
- 150 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- APS-650SB
- Part number
- APS-650SB
- EAN / UPC
- 4710713239838
- Also known as
- Chieftec APS-650SB power supply unit 650 W 24-pin ATX PS/2 Silver
Specifications
29 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 650 W |
| AC input voltage | 115 - 230 V |
| AC input frequency | 50 - 60 Hz |
| Maximum input current (@110V) | +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+5V) | 120 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V1) | 26 A |
| Max output current (+12V2) | 26 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over voltage, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Power supply unit (PSU) form factor | PS/2 |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Fan diameter | 14 cm |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 155 mm |
| Height | 87 mm |
