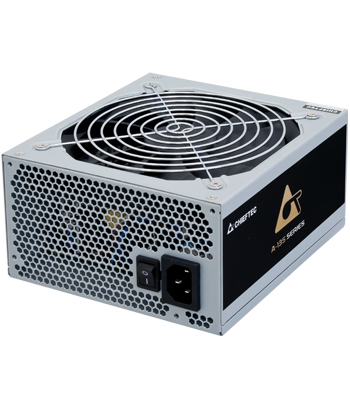

Chieftec APS-550SB power supply unit
550 W 24-pin ATX ATX Silver
Model APS-550SBEAN 4710713239814
32 specifications
- ColourSilver
- Total power550 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width150 mm
Overview
- Colour
- Silver
- Total power
- 550 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- APS-550SB
- Part number
- APS-550SB
- EAN / UPC
- 4710713239814
- Also known as
- Chieftec APS-550SB power supply unit 550 W 24-pin ATX ATX Silver
Specifications
32 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 550 W |
| AC input voltage | 115 - 230 V |
| AC input frequency | 50 - 60 Hz |
| Maximum input current (@110V) | +12V,+3.3V,-12V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+5V) | 120 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over current, Over voltage, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6+2 pin) | 1 |
| ATX Power connector (24-pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.3 |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Cooling type | Active |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 87 mm |
| Height | 155 mm |
What people say
Reviews & ratings
Chieftec APS-550SB power supply unit
No reviews yet
Be the first to tell others how Chieftec APS-550SB power supply unit works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Chieftec APS-550SB power supply unit
All power supply unit comparisons- Chieftec APS-550SB power supply unit vsChieftec APS-600SB power supply unitCompare specs
- Chieftec APS-550SB power supply unit vsChieftec APS-850CB power supply unitCompare specs
- Chieftec APS-550SB power supply unit vsChieftec SFX-350BS power supply unitCompare specs
- Chieftec APS-550SB power supply unit vsChieftec APS-750CB power supply unit 24-pin ATX PS/2 BlackCompare specs

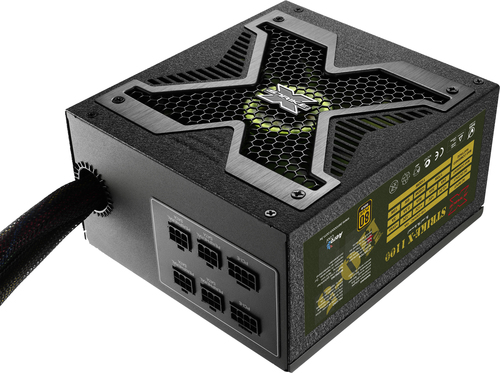

- Chieftec APS-550SB power supply unit vsAerocool Strike-X ArmyCompare specs

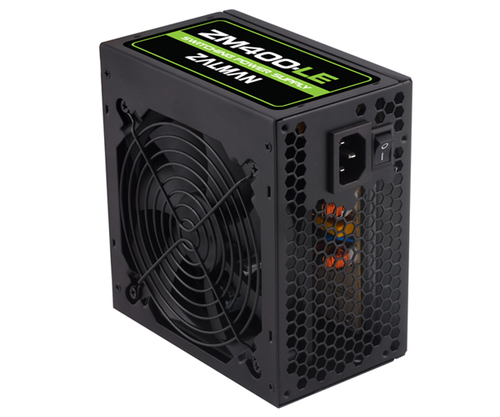

- Chieftec APS-550SB power supply unit vsZalman ZM400-LE power supply unitCompare specs
- Chieftec APS-550SB power supply unit vsbe quiet! Pure Power L8Compare specs

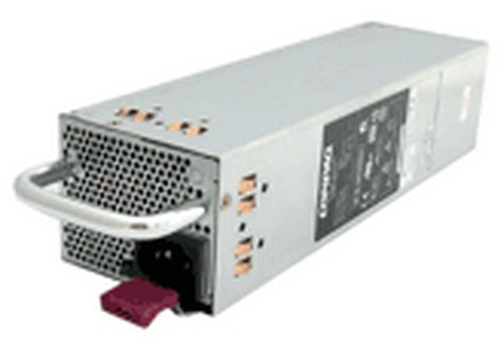

- Chieftec APS-550SB power supply unit vsHP 228509-001 power supply unitCompare specs
