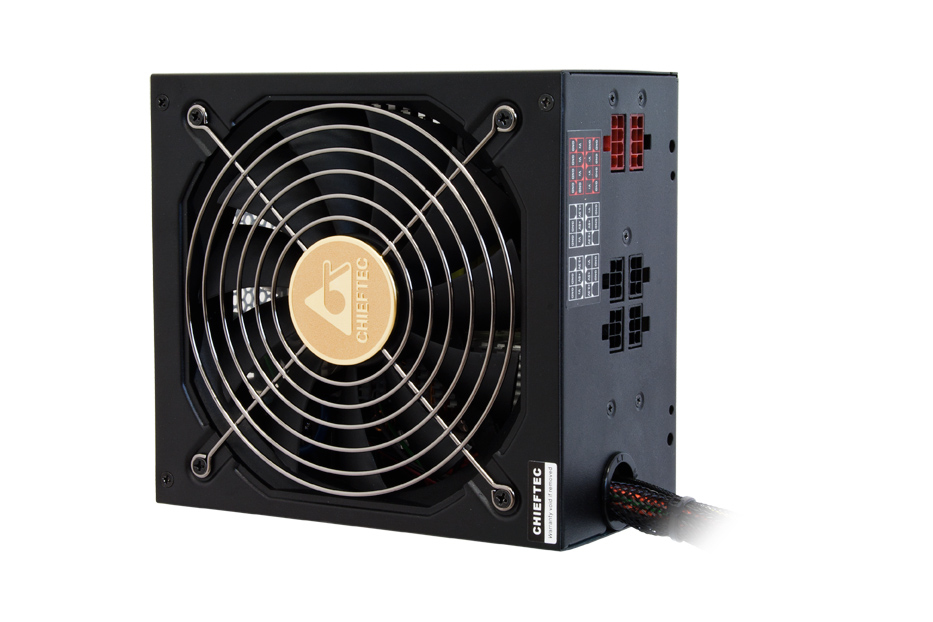

Chieftec APS-1000CB power supply unit
1000 W 24-pin ATX PS/2 Black
Model APS-1000CBEAN 4710713230514
34 specifications
- ColourBlack
- Total power1000 W
- Motherboard power connector24-pin ATX
- Power supply unit (PSU) form factorPS/2
- Width150 mm
Overview
- Colour
- Black
- Total power
- 1000 W
- Motherboard power connector
- 24-pin ATX
- Power supply unit (PSU) form factor
- PS/2
- Width
- 150 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- APS-1000CB
- Part number
- APS-1000CB
- EAN / UPC
- 4710713230514
- Also known as
- Chieftec APS-1000CB power supply unit 1000 W 24-pin ATX PS/2 Black
Specifications
34 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 15 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 140 W |
| Combined power (+5V) | 140 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 23 A |
| Max output current (+12V1) | 42 A |
| Max output current (+12V2) | 42 A |
| Max output current (+5V) | 23 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 85% |
| Power protection features | Over current, Over voltage, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 9 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6-pin) | 0 |
| PCI Express power connectors (6+2 pin) | 6 |
| Floppy drive power connector | 1 |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Power supply unit (PSU) form factor | PS/2 |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 155 mm |
| Height | 87 mm |
