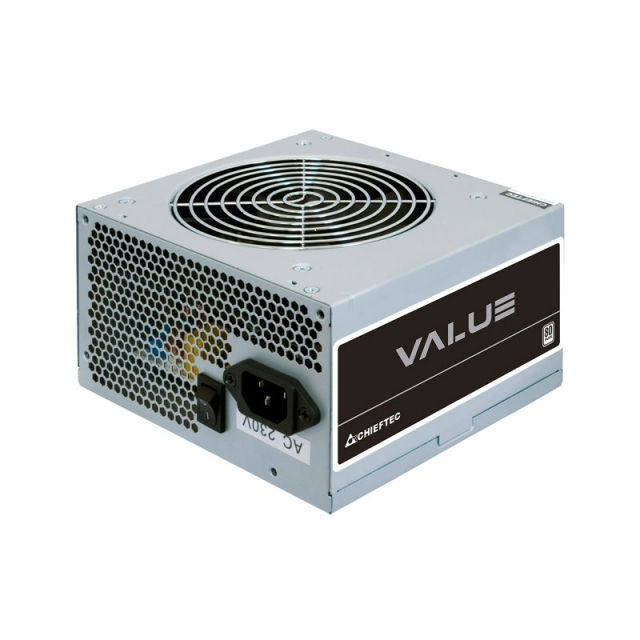

Value APB-700B8 power supply unit
700 W 20+4 pin ATX ATX Silver
Model APB-700B8EAN 753263077820
44 specifications
- Weight1.42 kg
- ColourSilver
- Total power700 W
- Motherboard power connector20+4 pin ATX
- PurposePC/Server
- Width150 mm
Overview
- Weight
- 1.42 kg
- Colour
- Silver
- Total power
- 700 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC/Server
- Width
- 150 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- APB-700B8
- Part number
- APB-700B8
- EAN / UPC
- 753263077820
- Also known as
- Chieftec Value APB-700B8 power supply unit 700 W 20+4 pin ATX ATX Silver
Specifications
44 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 700 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 5 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 648 W |
| Combined power (+5V) | 130 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V1) | 54 A |
| Max output current (+5V) | 22 A |
| Power protection features | Over voltage, Overheating, Overload, Short circuit, Under power, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 4 |
| SATA power cable length | 150,550 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 150,500 mm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 50 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 50 cm |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Certification | CE, CB, EAC, TÜV |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 87 mm |
| Weight | 1.42 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.57 kg |
Technical details
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
