Chieftec Value APB-500B8 power supply unit
500 W 20+4 pin ATX ATX Silver
Model APB-500B8EAN 4710713230569
40 specifications
- ColourSilver
- Total power500 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Colour
- Silver
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- APB-500B8
- Part number
- APB-500B8
- EAN / UPC
- 4710713230569
- Also known as
- Chieftec Value APB-500B8 power supply unit 500 W 20+4 pin ATX ATX Silver
Specifications
40 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Input current | 4 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V1) | 24 A |
| Max output current (+12V2) | 21 A |
| Max output current (+5V) | 19 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 80% |
| Power protection features | Over voltage, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (8-pin) | No |
| PCI Express power connectors (6+2 pin) | 1 |
| Floppy disk drive connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, CB, TÜV, EAC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 87 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Compare Chieftec Value APB-500B8 power supply unit
Compare any products- Chieftec Value APB-500B8 power supply unit vsChieftec CSN-650C power supply unitCompare specs
- Chieftec Value APB-500B8 power supply unit vsChieftec CSN-550C power supply unitCompare specs
- Chieftec Value APB-500B8 power supply unit vsChieftec GPS-1350C power supply unitCompare specs
- Chieftec Value APB-500B8 power supply unit vsChieftec GPS-1450C power supply unitCompare specs
- Chieftec Value APB-500B8 power supply unit vsFSP Hydro GECompare specs

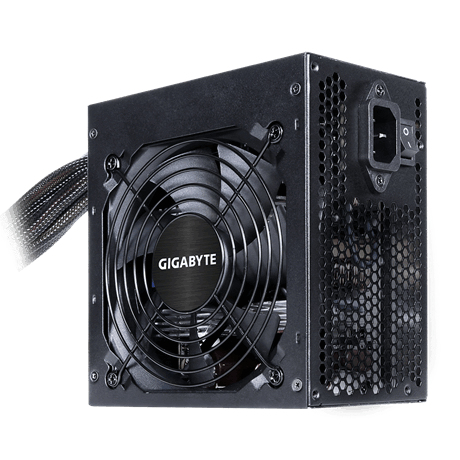

- Chieftec Value APB-500B8 power supply unit vsGIGABYTE P650B power supply unitCompare specs

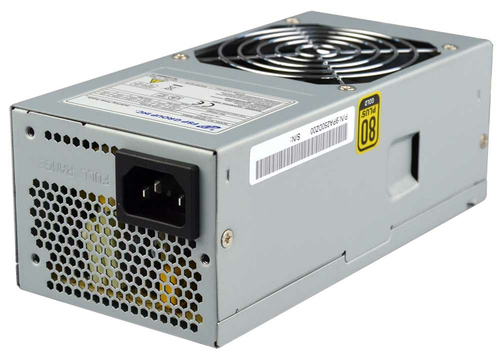

- Chieftec Value APB-500B8 power supply unit vsFSP250-60SGV 90+Compare specs

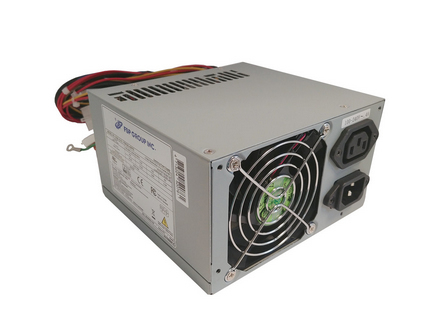

- Chieftec Value APB-500B8 power supply unit vsFSP300-40PFB power supply unit PS/2 GreyCompare specs
