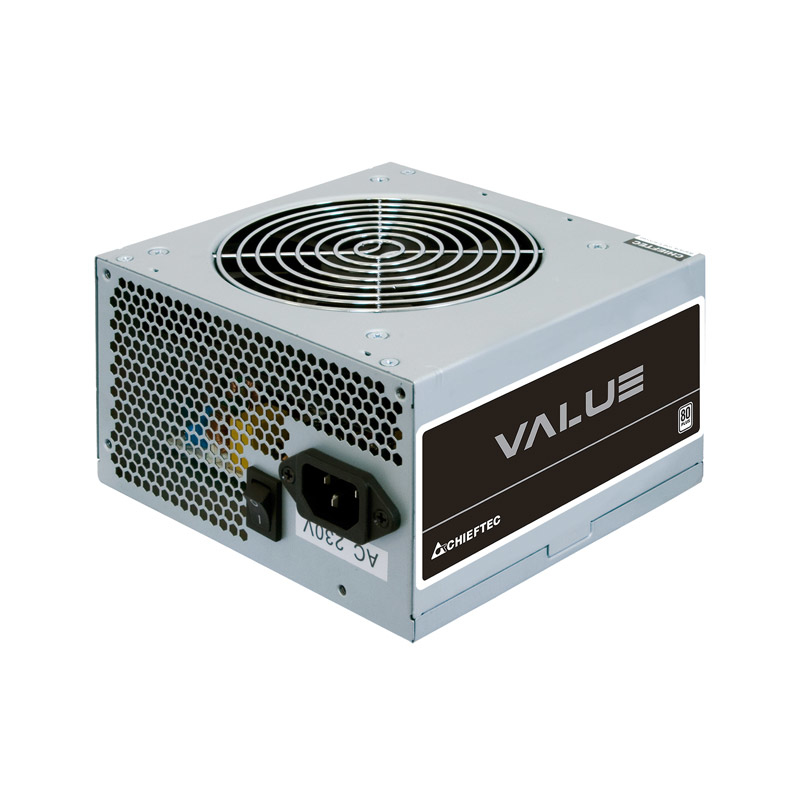

Value APB-400B8 power supply unit
400 W 20+4 pin ATX PS/2 Silver
Model APB-400B8EAN 4710713230552
43 specifications
- ColourSilver
- Total power400 W
- Motherboard power connector20+4 pin ATX
- PurposePC/Server
- Width140 mm
Overview
- Colour
- Silver
- Total power
- 400 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC/Server
- Width
- 140 mm
- Brand
- Chieftec
- Category
- Power Supply Unit
- Model
- APB-400B8
- Part number
- APB-400B8
- EAN / UPC
- 4710713230552
- Also known as
- Chieftec Value APB-400B8 power supply unit 400 W 20+4 pin ATX PS/2 Silver
Specifications
43 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 400 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 3 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 360 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 17 A |
| Max output current (+12V) | 30 A |
| Max output current (+5V) | 16 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over voltage, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 35 cm |
| Number of SATA power connectors | 3 |
| SATA power cable length | 150,350 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 150,350 mm |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 1 |
| PCI Express power cable length | 35 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 35 cm |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | PS/2 |
| 80 PLUS certification | 80 PLUS |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
Certificates
| Specification | Value |
|---|---|
| Certification | 80PLUS 230V EU |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 87 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
