System Power 9 | 500W CM
Model System Power 9 | 500W CMPart no. BN301EAN 4260052187227
67 specifications
- Noise9.7 dB
- Weight1.56 kg
- ColourBlack
- Total power500 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 9.7 dB
- Weight
- 1.56 kg
- Colour
- Black
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- be quiet!
- Category
- Power Supply Unit
- Model
- System Power 9 | 500W CM
- Part number
- BN301
- EAN / UPC
- 4260052187227
- Also known as
- be quiet! System Power 9 | 500W CM
Specifications
67 specifications in 11 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 Hz |
| Input current | 4 A |
| Power factor | 0.95 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 456 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V1) | 24 A |
| Max output current (+12V2) | 20 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 89% |
| Hold time | 17 ms |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |

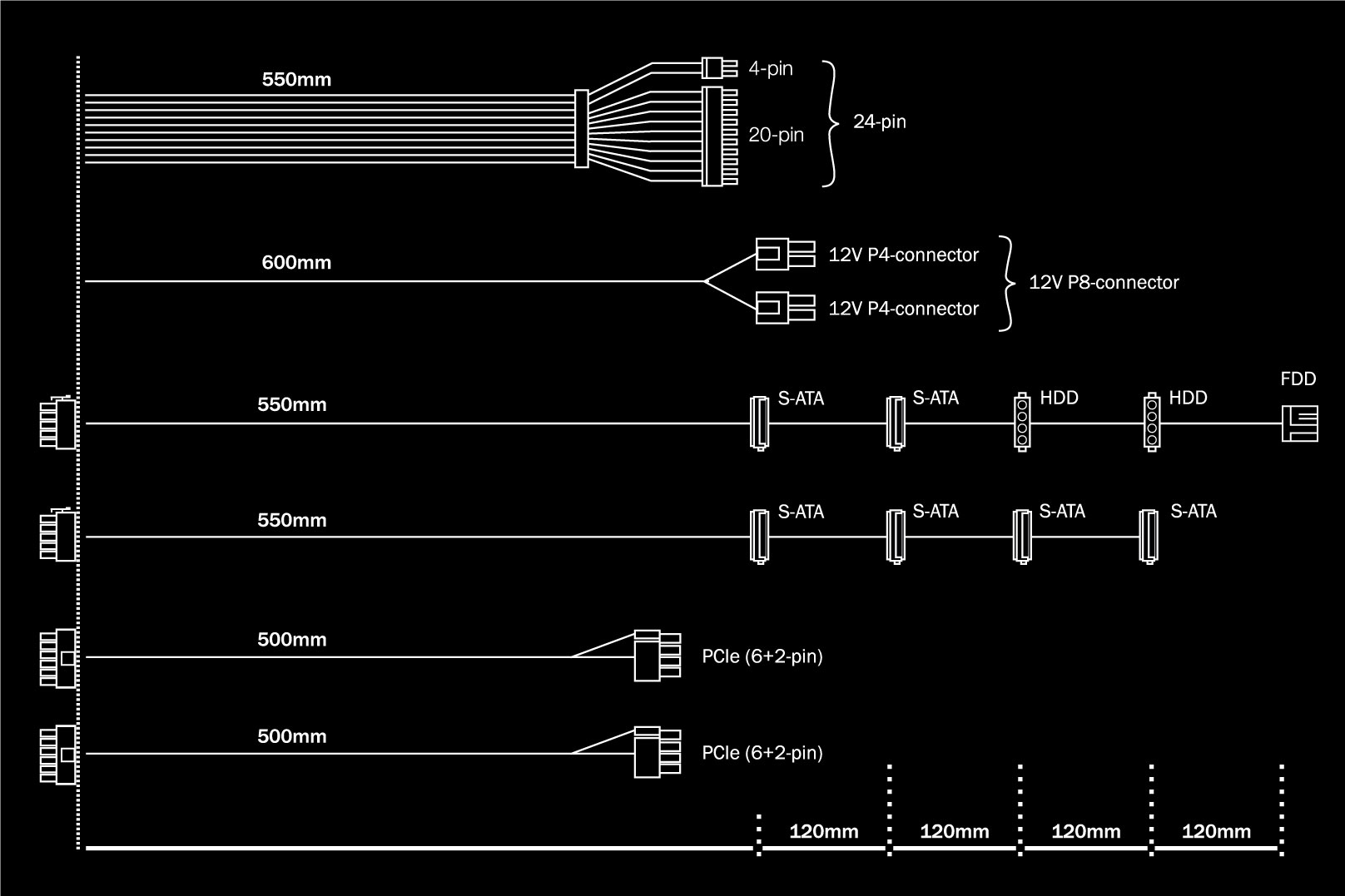

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of PATA power connectors | 2 |
| Number of SATA power connectors | 6 |
| SATA power cable length | 550,670 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 50 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 60 cm |
| Floppy drive power connector | 1 |
| PCI Express connector | Yes |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.51 |
| Bearing technology | Sleeve |
| Compatible products | Intel C6/C7 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Illumination | No |
Packaging content
| Specification | Value |
|---|---|
| Cables included | PCIe, SATA |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, CB, TÜV, RCM, CU |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.56 kg |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Package width | 97 mm |
| Package depth | 268 mm |
| Package height | 195 mm |
| Package weight | 2.22 kg |
| Package type | Box |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 311 mm |
| Master (outer) case length | 215 mm |
| Master (outer) case height | 556 mm |
| Harmonized System (HS) code | 84733020 |
| Master (outer) case gross weight | 14 kg |
| Products per master (outer) case | 6 pc(s) |
Other features
| Specification | Value |
|---|---|
| Screws included | Yes |

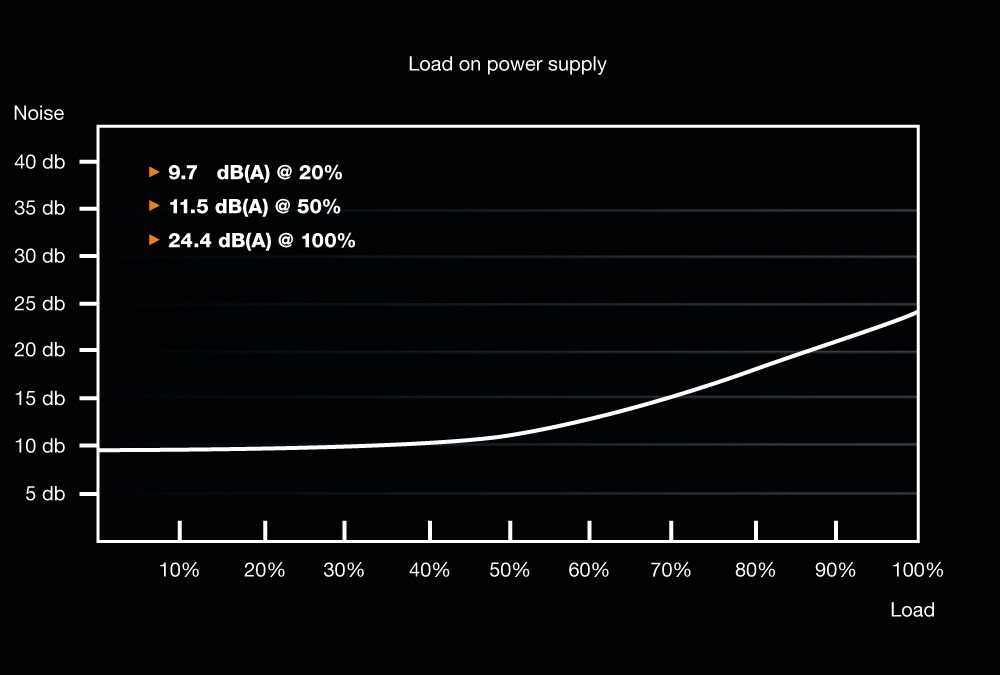

| Noise level (silent mode, <30%) | 9.7 dB |
| Noise level (quiet mode, 50%) | 11.5 dB |
| Noise level (full-load mode, 100%) | 24.4 dB |
