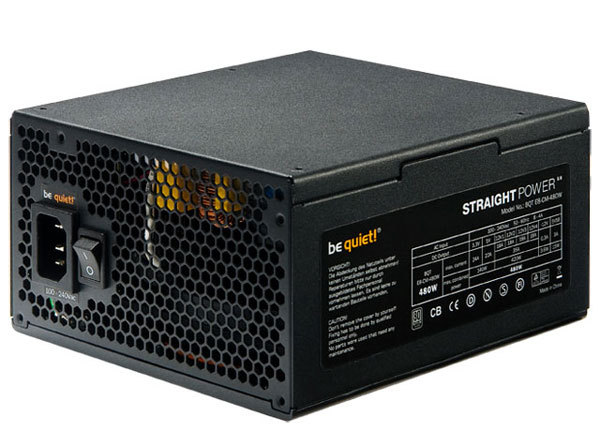

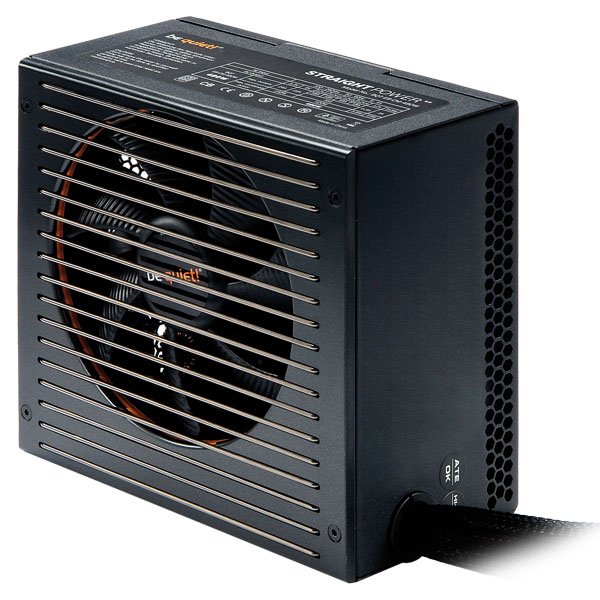

be quiet! Straight Power E8

be quiet! Straight Power E8

Model Straight Power E8Part no. BN159EAN 4260052181959

51 specifications
  • Noise20.5 dB
  • ColourBlack
  • Total power600 W
  • Motherboard power connector20+4 pin ATX
  • PurposePC
  • SafetyFL
See all specifications

Overview

Noise
20.5 dB
Colour
Black
Total power
600 W
Motherboard power connector
20+4 pin ATX
Purpose
PC
Safety
FL
Brand
be quiet!
Model
Straight Power E8
Part numbers
BN159, BQT E8-600W, BQT E8-400W, BQT E8-450W, BQT E8-550W, BN153 +2 more
EAN / UPC
4260052181959, 4260052181843, 4260052181850, 4260052181867 +4 more
Also known as
be quiet! Straight Power E8 power supply unit 600 W 20+4 pin ATX ATX Black

Specifications

51 specifications in 8 groups

Power

Total power600 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Maximum input current (@110V)+12V1,+12V2,+12V3,+3.3V,+5V,+5Vsb,-12V
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)140 W
Combined power (+12V)576 W
Combined power (+5V)140 W
Combined power (-12V)6 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)24 A
Max output current (+12V)48 A
Max output current (+5V)24 A
Max output current (-12V)0.5 A
Max output current (+5Vsb)3 A
Efficiency91%
Power protection featuresOver current, Over power, Over voltage, Overload, Short circuit, Under voltage, Overheating

Ports & interfaces

Motherboard power connector20+4 pin ATX
Number of SATA power connectors6
Peripheral (Molex) power connectors (4-pin)5
PCI Express power connectors (6-pin)1
PCI Express power connectors (6+2 pin)2
CPU P4 connector (4-pin)1
CPU power connector (4+4 pin)Yes
Floppy drive power connector2
Connector(s)IEC C14
Cabling typeNon-Modular

Performance

PurposePC
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Silver
ATX version2.3
EPS version2.92
Noise level20.5 dB
Mean time between failures (MTBF)100000 h

Design

Product colourBlack
Fan diameter12 cm
Number of fans1 fan(s)
Fan locationSide
LED indicatorsNo

Safety regulation & standards

SafetyFL

Certificates

CertificationCE, CB, D, N, S, TUV

Packaging data

Package weight3.01 kg

Other features

Dimensions (WxDxH)160 x 150 x 86 mm
Package dimensions (WxDxH)328 x 248 x 102 mm
Parallel processing technology supportNot supported
Ports quantity20
Power managementYes
Power over Ethernet (PoE)No
Power supply typeAC/DC
Redundant power supply (RPS) supportNo
Power rocker switchYes
