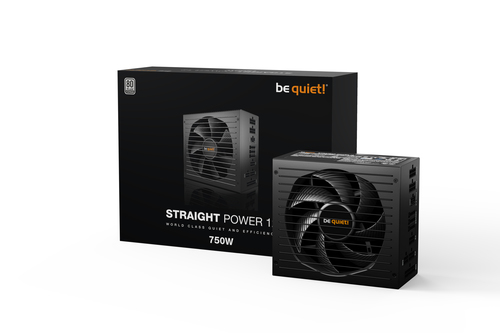

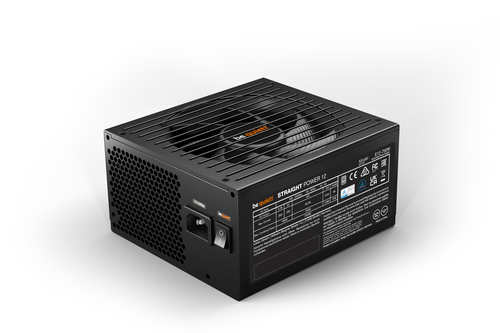

Straight Power 12
Model Straight Power 12Part no. BN336EAN 4260052189412
68 specifications
- Noise20.8 dB
- Weight1.76 kg
- ColourBlack
- Total power750 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 20.8 dB
- Weight
- 1.76 kg
- Colour
- Black
- Total power
- 750 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- be quiet!
- Category
- Power Supply Unit
- Model
- Straight Power 12
- Part numbers
- BN336, BN339
- EAN / UPC
- 4260052189412, 4260052189443
- Also known as
- be quiet! Straight Power 12 power supply unit 750 W 20+4 pin ATX ATX Black
Specifications
68 specifications in 11 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| Peak power | 820 W |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10/5 A |
| Power factor | 0.99 |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 130 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 92.9% |
| Hold time | 24.8 ms |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |

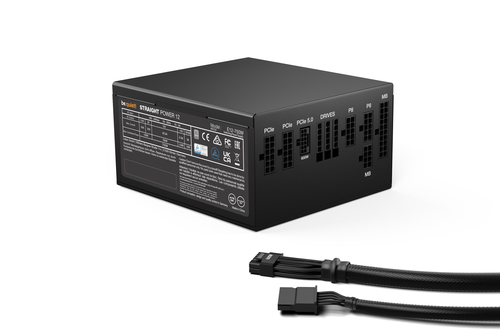

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of PATA power connectors | 2 |
| Number of SATA power connectors | 9 |
| SATA power cable length | 550,700,850,1000 mm |
| Peripheral (Molex) power connectors (4-pin) | 0 |
| Peripheral (Molex) power cable length | 1000,850 mm |
| EPS power connector (8-pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power cable length | 60 cm |
| CPU power cable length | 70 cm |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| Supported motherboard form factors | ATX, micro ATX, Mini-ATX |
| ATX version | 3.1 |
| EPS version | 2.92 |

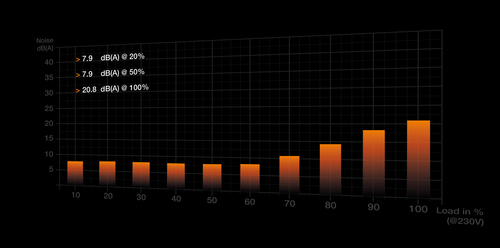

| Noise level | 20.8 dB |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 0 - 1800 RPM |
| Illumination | No |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Packaging content
| Specification | Value |
|---|---|
| Cables included | CPU, SATA |
| Cable tie(s) included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
| Weight | 1.76 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 248 mm |
| Package depth | 328 mm |
| Package height | 102 mm |
| Package weight | 3.47 kg |
| Package type | Box |
Technical details
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Logistics data
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 6 pc(s) |
| Shipping (inner) case height | 34.6 cm |
| Shipping (inner) case length | 65.1 cm |
| Shipping (inner) case net weight | 22.4 kg |
| Shipping (inner) case width | 28.2 cm |
| Warranty period | 10 year(s) |
