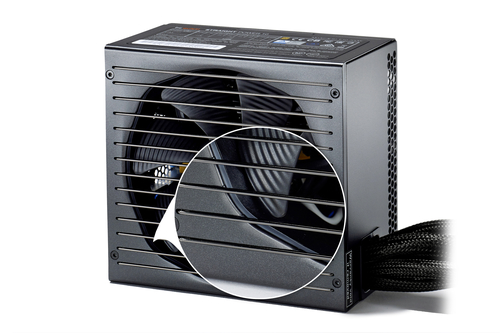

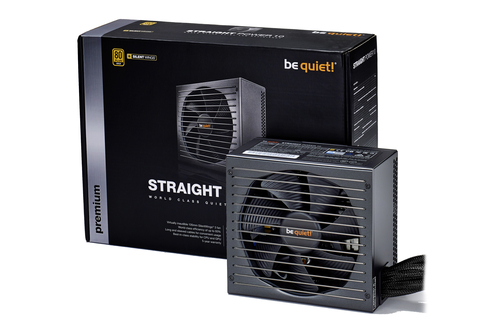

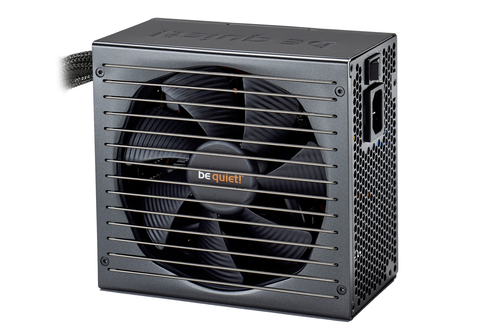

be quiet! Straight Power 10

be quiet! Straight Power 10

Model Straight Power 10Part no. BN230EAN 4260052184288

59 specifications
  • Noise10.4 dB
  • Weight2.02 kg
  • ColourBlack
  • Total power400 W
  • Motherboard power connector20+4 pin ATX
  • PurposePC
See all specifications

Overview

Noise
10.4 dB
Weight
2.02 kg
Colour
Black
Total power
400 W
Motherboard power connector
20+4 pin ATX
Purpose
PC
Brand
be quiet!
Model
Straight Power 10
Part number
BN230
EAN / UPC
4260052184288, 5054484754695, 7426042655658, 9154403740467
Also known as
be quiet! Straight Power 10 power supply unit 400 W 20+4 pin ATX ATX Black

Specifications

59 specifications in 10 groups

Power

Total power400 W
Peak power450 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current6 A
Maximum input current (@110V)+12V1,+12V2,+12V3,+3.3V,+5V,+5Vsb,-12V
Power factor0.97
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)120 W
Combined power (+12V)384 W
Combined power (+5V)120 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)24 A
Max output current (+12V1)18 A
Max output current (+12V2)18 A
Max output current (+12V3)18 A
Max output current (+5V)17 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)3 A
Efficiency93%
Hold time17 ms
Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector20+4 pin ATX
Number of SATA power connectors6
Peripheral (Molex) power connectors (4-pin)3
PCI Express power connectors (6+2 pin)2
CPU power connector (4+4 pin)Yes
Floppy disk drive connectorYes
Floppy drive power connector1
Cabling typeNon-Modular

Performance

PurposePC
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Gold
ATX version2.4
Bearing technologyFDB
Mean time between failures (MTBF)100000 h

Design

Product colourBlack
Cooling typeActive
Fan diameter13.5 cm
Number of fans1 fan(s)
Fan speed1200

Certificates

Compliance certificatesRoHS

Safety regulation & standards

SafetyCE, CB, TÜV, FCC, cRUus, cTUVus, BSMI

Weight & dimensions

Width160 mm
Depth150 mm
Height86 mm
Weight2.02 kg

Packaging data

ManualYes
Package width328 mm
Package depth248 mm
Package height102 mm
Package weight2.59 kg
Package typeBox

Technical details

Sustainability certificatesENERGY STAR

Other features

Warranty cardYes
Noise level (silent mode, <30%)10.4 dB
Noise level (quiet mode, 50%)10.4 dB
Noise level (full-load mode, 100%)11.7 dB
