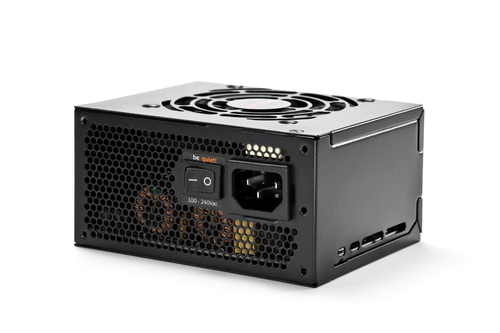

be quiet! SFX Power 2

be quiet! SFX Power 2

Model SFX Power 2Part no. BN226EAN 4260052183717

58 specifications
  • Noise33.9 dB
  • Weight950 g
  • ColourBlack
  • Total power400 W
  • Motherboard power connector20+4 pin ATX
  • PurposePC
See all specifications

Overview

Noise
33.9 dB
Weight
950 g
Colour
Black
Total power
400 W
Motherboard power connector
20+4 pin ATX
Purpose
PC
Brand
be quiet!
Model
SFX Power 2
Part numbers
BN226, BN227
EAN / UPC
4260052183717, 4260052183724, 5052184040322, 5054484580928 +1 more
Also known as
be quiet! SFX Power 2 power supply unit 400 W 20+4 pin ATX Black

Specifications

58 specifications in 10 groups

Power

Total power400 W
Peak power450 W
AC input voltage110 - 240 V
AC input frequency50 - 60 Hz
Input current6 A
Maximum input current (@110V)+12V1,+12V2,+3.3V,+5V,+5Vsb,-12V
Power factor0.9
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)120 W
Combined power (+12V)360 W
Combined power (+5V)120 W
Combined power (-12V)6 W
Combined power (+5Vsb)12.5 W
Max output current (+3.3V)21 A
Max output current (+12V1)17 A
Max output current (+12V2)16 A
Max output current (+5V)22 A
Max output current (-12V)0.5 A
Max output current (+5Vsb)2.5 A
Efficiency87.5%
Hold time24 ms
Power protection featuresOver current, Over power, Over voltage, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector20+4 pin ATX
Number of SATA power connectors4
Peripheral (Molex) power connectors (4-pin)1
PCI Express power connectors (6+2 pin)1
CPU P4 connector (4-pin)1
Floppy disk drive connectorYes
Floppy drive power connector1
Cabling typeNon-Modular

Performance

PurposePC
Power supply unit (PSU) form factorSFX
80 PLUS certification80 PLUS Bronze
Noise level33.9 dB
Mean time between failures (MTBF)100000 h

Design

Product colourBlack
Cooling typeActive
Fan diameter8 cm
Number of fans1 fan(s)
Fan speed2579
On/off switchYes

Operational conditions

Operating temperature (T-T)10 - 50 °C

Certificates

Compliance certificatesRoHS
CertificationCE, CB, TÜV

Weight & dimensions

Width100 mm
Depth125 mm
Height63.5 mm
Weight950 g

Packaging data

ManualYes
Package width199 mm
Package depth195 mm
Package height75 mm
Package weight1.3 kg

Technical details

Sustainability certificatesENERGY STAR

Other features

Warranty cardYes
Noise level (silent mode, <30%)20.7 dB
Noise level (quiet mode, 50%)20.9 dB
Noise level (full-load mode, 100%)33.9 dB
