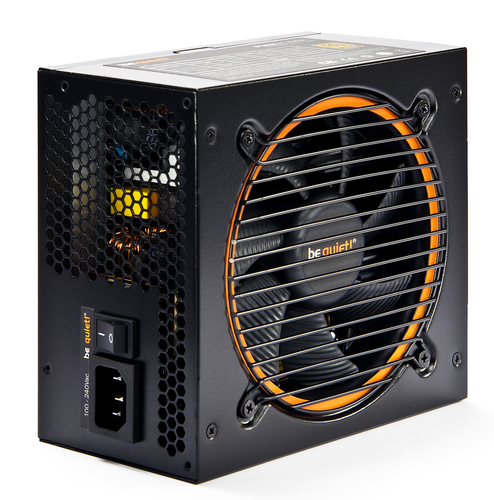

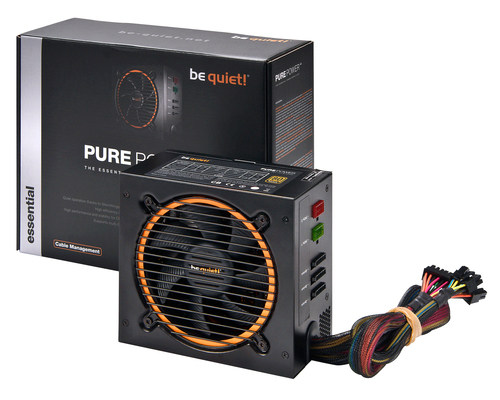

be quiet! Pure Power L8 CM

be quiet! Pure Power L8 CM

Model Pure Power L8 CMPart no. BN182EAN 4260052182505

55 specifications
  • Noise20.1 dB
  • Weight1.7 kg
  • ColourBlack
  • Total power430 W
  • Motherboard power connector20+4 pin ATX
  • PurposePC
See all specifications

Overview

Noise
20.1 dB
Weight
1.7 kg
Colour
Black
Total power
430 W
Motherboard power connector
20+4 pin ATX
Purpose
PC
Brand
be quiet!
Model
Pure Power L8 CM
Part numbers
BN182, BN180, BN181, BN183
EAN / UPC
4260052182505, 3548388015478, 4260052182451, 4260052182468 +13 more
Also known as
be quiet! Pure Power L8 CM power supply unit 430 W 20+4 pin ATX ATX Black

Specifications

55 specifications in 10 groups

Power

Total power430 W
Peak power480 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current4 - 8 A
Maximum input current (@110V)+12V1,+12V2,+3.3V,+5V,+5Vsb,-12V
Power factor0.99
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)120 W
Combined power (+12V)396 W
Combined power (+5V)120 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)24 A
Max output current (+12V)33 A
Max output current (+12V1)22 A
Max output current (+12V2)20 A
Max output current (+5V)15 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)3 A
Efficiency88%
Hold time14 ms
Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector20+4 pin ATX
Number of SATA power connectors4
Peripheral (Molex) power connectors (4-pin)3
PCI Express power connectors (6-pin)1
PCI Express power connectors (6+2 pin)1
CPU power connector (4+4 pin)Yes
Floppy drive power connector1
Cabling typeSemi-Modular

Performance

PurposePC
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Bronze
ATX version2.3
Noise level20.1 dB
Mean time between failures (MTBF)100000 h

Design

Product colourBlack
Cooling typeActive
Fan diameter12 cm
Number of fans1 fan(s)
Fan speed1229

Operational conditions

Operating temperature (T-T)0 - 40 °C

Certificates

Compliance certificatesRoHS
CertificationErP, WEEE, CE, CB, TUV

Weight & dimensions

Width150 mm
Depth160 mm
Height86 mm
Weight1.7 kg

Packaging data

Package weight2.45 kg

Technical details

Sustainability certificatesENERGY STAR

Other features

Noise level (silent mode, <30%)16.2 dB
Noise level (quiet mode, 50%)16.8 dB
Noise level (full-load mode, 100%)20.1 dB
Package dimensions (WxDxH)105 x 230 x 280 mm
