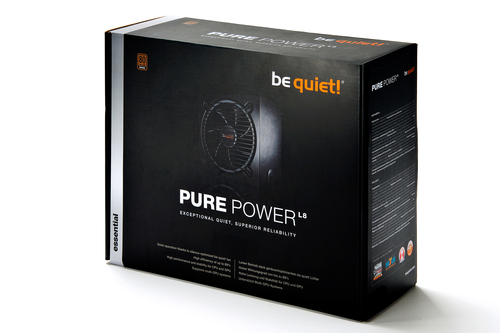

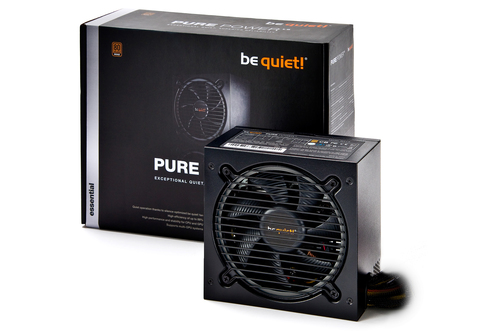

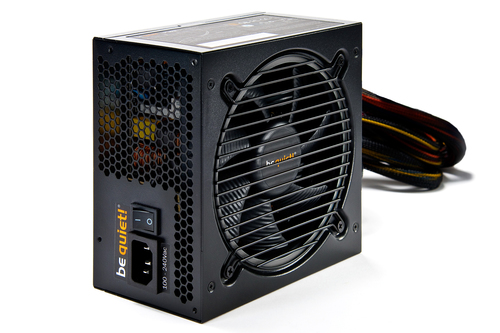

be quiet! Pure Power L8
Model Pure Power L8Part no. BN225EAN 4260052183298
51 specifications
- Noise16.6 dB
- Weight1.93 kg
- ColourBlack
- Total power300 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 16.6 dB
- Weight
- 1.93 kg
- Colour
- Black
- Total power
- 300 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- be quiet!
- Category
- Power Supply Unit
- Model
- Pure Power L8
- Part numbers
- BN225, BN220, BN221, BN222, BN223, BN224
- EAN / UPC
- 4260052183298, 4260052183243, 3548388016222, 4260052183250 +5 more
- Also known as
- be quiet! Pure Power L8 power supply unit 300 W 20+4 pin ATX ATX Black
Specifications
51 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 300 W |
| Peak power | 350 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 5 A |
| Power factor | 0.97 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 103 W |
| Combined power (+12V) | 276 W |
| Combined power (+5V) | 103 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 21 A |
| Max output current (+12V1) | 23 A |
| Max output current (+12V2) | 23 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 88% |
| Hold time | 16 ms |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.4 |
| EPS version | 2.92 |
| Noise level | 16.6 dB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 12 cm |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE, CB, TUV, WEEE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.93 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 105 mm |
| Package depth | 230 mm |
| Package height | 280 mm |
| Package weight | 2.32 kg |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| Noise level (silent mode, <30%) | 13.4 dB |
| Noise level (quiet mode, 50%) | 13.8 dB |
| Noise level (full-load mode, 100%) | 16.6 dB |
What people say
Reviews & ratings
be quiet! Pure Power L8
No reviews yet
Be the first to tell others how be quiet! Pure Power L8 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare be quiet! Pure Power L8

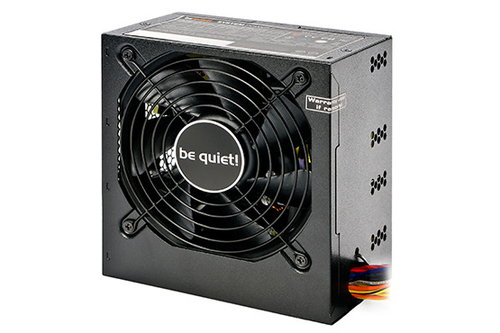

All power supply unit comparisons- be quiet! Pure Power L8 vsbe quiet! BN210 power supply unitCompare specs
- be quiet! Pure Power L8 vsbe quiet! Power ZoneCompare specs
- be quiet! Pure Power L8 vsbe quiet! System Power 7Compare specs

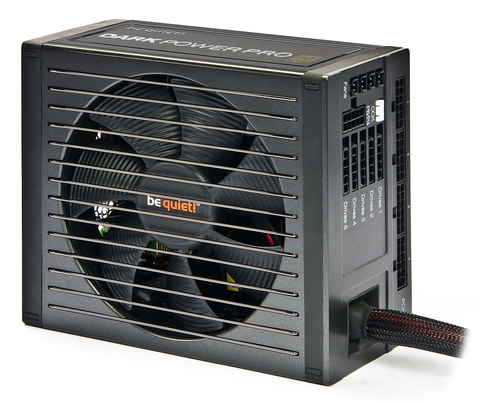

- be quiet! Pure Power L8 vsbe quiet! Dark Power Pro 10Compare specs

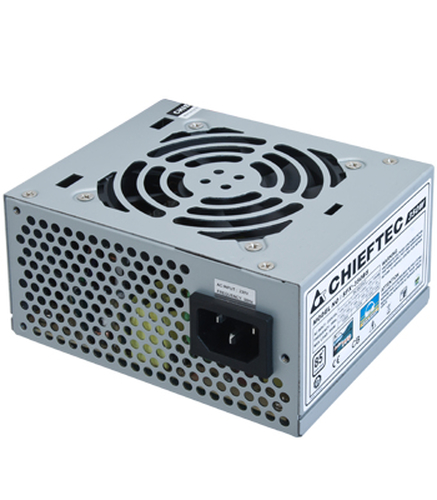

- be quiet! Pure Power L8 vsChieftec SFX-350BS power supply unitCompare specs

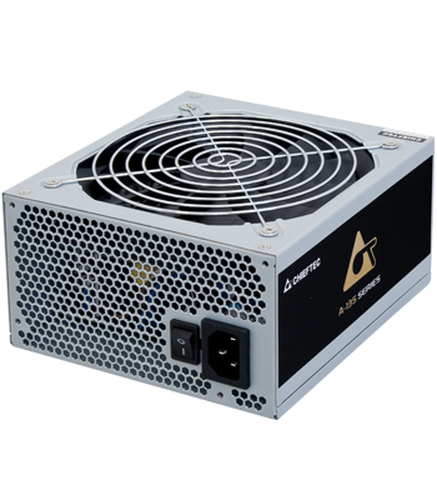

- be quiet! Pure Power L8 vsChieftec APS-550SB power supply unitCompare specs

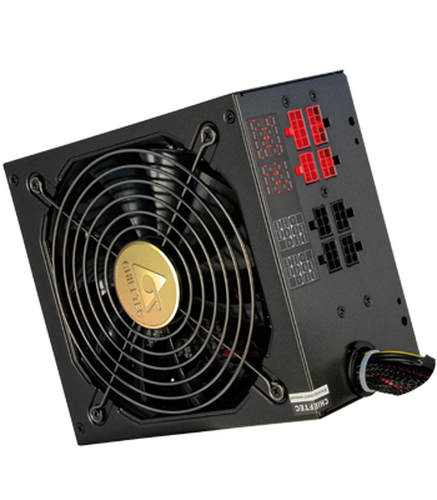

- be quiet! Pure Power L8 vsChieftec APS-750CB power supply unit 24-pin ATX PS/2 BlackCompare specs
