PURE POWER 12 550W
Model PURE POWER 12 550WPart no. BP001USEAN 4260052191163
71 specifications
- Noise14.6 dB
- Weight2.3 kg
- ColourBlack
- Total power550 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 14.6 dB
- Weight
- 2.3 kg
- Colour
- Black
- Total power
- 550 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- be quiet!
- Category
- Power Supply Unit
- Model
- PURE POWER 12 550W
- Part numbers
- BP001US, BP001EU
- EAN / UPC
- 4260052191163
- Also known as
- be quiet! PURE POWER 12 550W power supply unit 20+4 pin ATX ATX Black
Specifications
71 specifications in 11 groups
Power
| Specification | Value |
|---|---|
| Total power | 550 W |
| Peak power | 600 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Maximum input current (@110V) | 10 A |
| Maximum input current (@220V) | 5 A |
| Power factor | 0.98 |
| Power Factor Correction (PFC) type | Active |
| Number of +12V rail(s) | 1 |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 550 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V1) | 45.8 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 91.2% |
| Hold time | 16.64 ms |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 5 |
| SATA power cable length | 500,650,800 mm |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Peripheral (Molex) power cable length | 800 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power connectors (12-pin) | 1 |
| PCI Express power cable length | 60 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 60 cm |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
| EPS version | 2.92 |

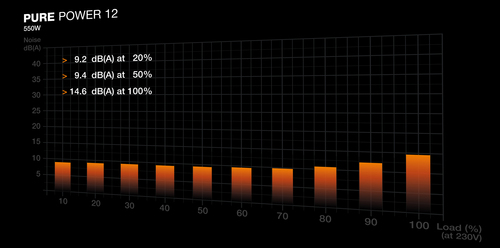

| Noise level | 14.6 dB |
| Bearing technology | Rifle |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Illumination | Yes |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Cable tie(s) included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CB, CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE, cTUVus |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 86 mm |
| Depth | 160 mm |
| Height | 150 mm |
| Weight | 2.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 133 mm |
| Package depth | 320 mm |
| Package height | 210 mm |
| Package weight | 2.8 kg |
Logistics data
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 6 pc(s) |
| Shipping (inner) case height | 41.8 cm |
| Shipping (inner) case length | 44 cm |
| Shipping (inner) case net weight | 17.7 kg |
| Shipping (inner) case width | 34.5 cm |
| Warranty period | 10 year(s) |
Other features
| Specification | Value |
|---|---|
| Screws included | Yes |
