be quiet! Pure Power 11 500W

be quiet! Pure Power 11 500W

Model Pure Power 11 500WPart no. BN293EAN 4260052186343

66 specifications
  • Noise9.3 dB
  • Weight2.05 kg
  • ColourBlack
  • Total power500 W
  • Motherboard power connector20+4 pin ATX
  • PurposePC
See all specifications

Overview

Noise
9.3 dB
Weight
2.05 kg
Colour
Black
Total power
500 W
Motherboard power connector
20+4 pin ATX
Purpose
PC
Brand
be quiet!
Model
Pure Power 11 500W
Part number
BN293
EAN / UPC
4260052186343
Also known as
be quiet! Pure Power 11 500W power supply unit 20+4 pin ATX ATX Black

Specifications

66 specifications in 11 groups

Power

Total power500 W
Peak power550 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current8 A
Power factor0.99
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)120 W
Combined power (+12V)480 W
Combined power (+5V)120 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)24 A
Max output current (+12V1)28 A
Max output current (+12V2)20 A
Max output current (+5V)15 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)3 A
Efficiency92%
Hold time23 ms
Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit, Under voltage

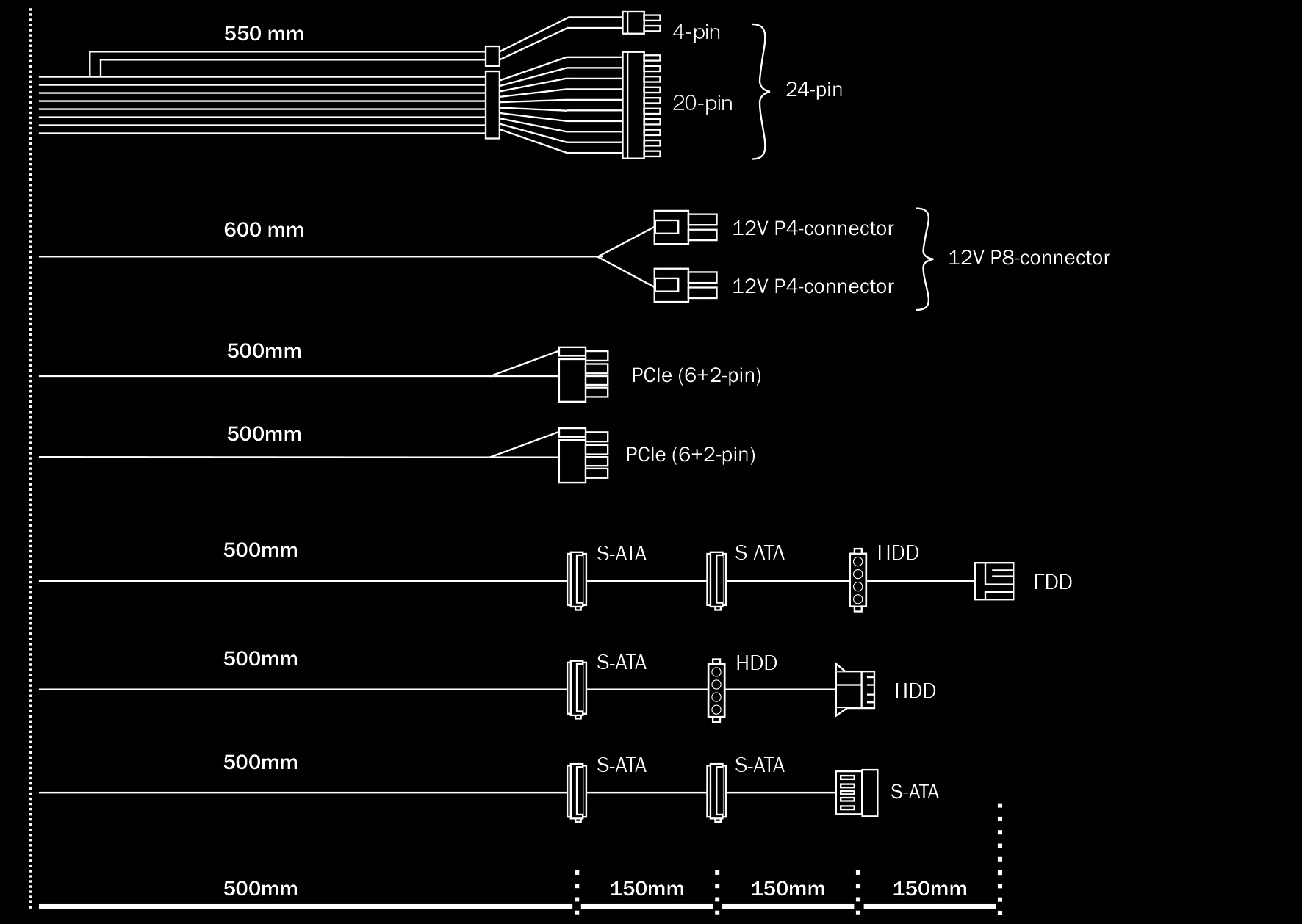

Ports & interfaces

Motherboard power connector20+4 pin ATX
Motherboard power cable length55 cm
Number of PATA power connectors3
Number of SATA power connectors6
SATA power cable length500,650,800 mm
Peripheral (Molex) power connectors (4-pin)0
PCI Express power connectors (6+2 pin)2
PCI Express power cable length50 cm
CPU power connector (4+4 pin)Yes
CPU power cable length60 cm
Floppy disk drive connectorYes
Cabling typeNon-Modular

Performance

PurposePC
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Gold
ATX version2.4
Bearing technologyRifle

Design

Product colourBlack
Fan diameter12 cm
Number of fans1 fan(s)

Certificates

Compliance certificatesRoHS
CertificationErP, WEEE

Safety regulation & standards

SafetyCE, CB, TÜV, FCC, cTUVus, RCM, BSMI, CU, CCC

Weight & dimensions

Width150 mm
Depth150 mm
Height86 mm
Weight2.05 kg

Packaging data

ManualYes
Package width210 mm
Package depth240 mm
Package height96 mm
Package weight2.33 kg
Package typeBox

Technical details

Sustainability certificatesENERGY STAR

Logistics data

Master (outer) case width326 mm
Master (outer) case length514 mm
Master (outer) case height241 mm
Harmonized System (HS) code84733020
Master (outer) case gross weight15.2 kg
Products per master (outer) case6 pc(s)

Other features

Screws includedYes
Cable ties includedYes

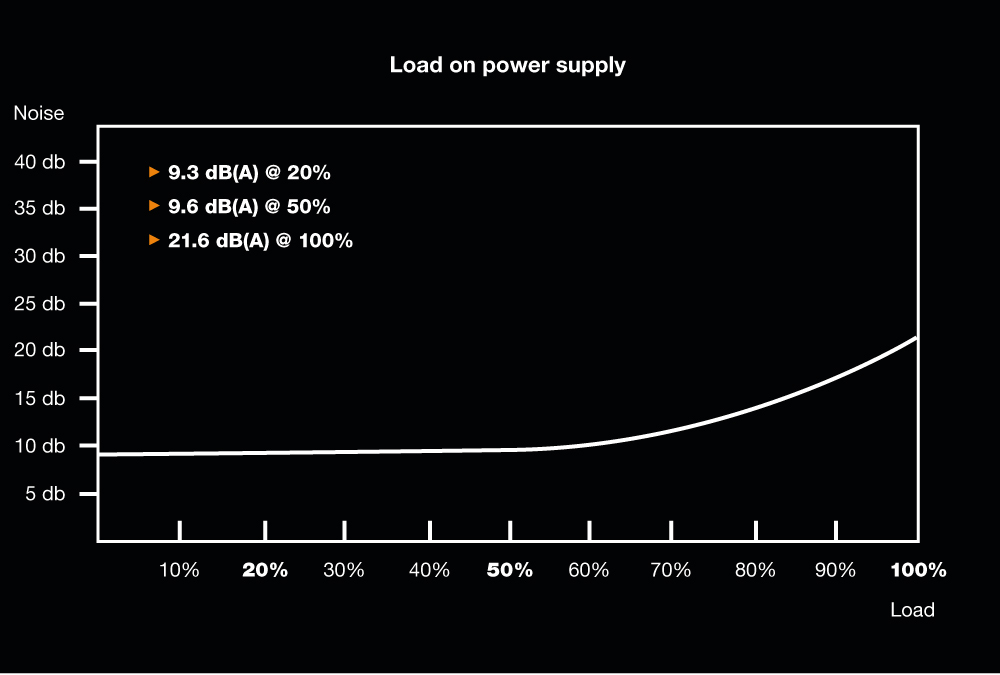

Noise level (silent mode, <30%)9.3 dB
Noise level (quiet mode, 50%)9.6 dB
Noise level (full-load mode, 100%)21.6 dB
