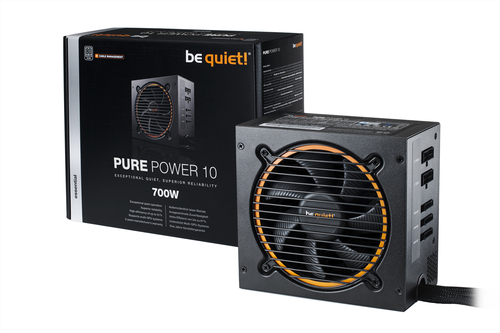

be quiet! Pure Power 10
Model Pure Power 10Part no. BN270EAN 4260052185292
41 specifications
- Noise11.6 dB
- ColourBlack
- Total power700 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width160 mm
Overview
- Noise
- 11.6 dB
- Colour
- Black
- Total power
- 700 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 160 mm
- Brand
- be quiet!
- Category
- Power Supply Unit
- Model
- Pure Power 10
- Part numbers
- BN270, BN279, BN275, BN274, BN273, BN272 +1 more
- EAN / UPC
- 4260052185292, 4260052185384, 4260052185346, 4260052185339 +3 more
- Also known as
- be quiet! Pure Power 10 power supply unit 700 W 20+4 pin ATX Black
Specifications
41 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 700 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 672 W |
| Combined power (+5V) | 150 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V1) | 36 A |
| Max output current (+12V2) | 30 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 91% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of PATA power connectors | 3 |
| Number of SATA power connectors | 6 |
| PCI Express power connectors (6+2 pin) | 4 |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |
| PCI Express connector | Yes |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Silver |
| ATX version | 2.4 |
| EPS version | 2.92 |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 86 mm |
| Height | 150 mm |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| Noise level (silent mode, <30%) | 11.6 dB |
| Noise level (quiet mode, 50%) | 12.8 dB |
| Noise level (full-load mode, 100%) | 27.1 dB |
| Cable management | Yes |
