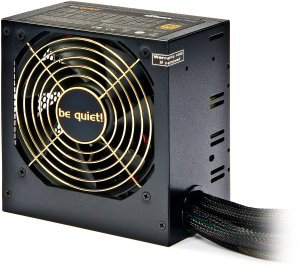

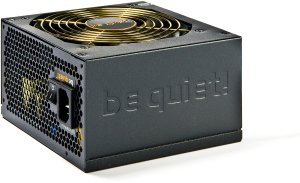

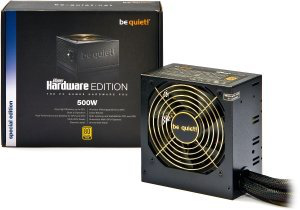

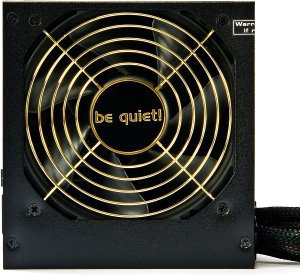

be quiet! PCGH Edition F1
Model PCGH Edition F1Part no. BN189EAN 4260052182833
52 specifications
- Noise33 dB
- Weight2.03 kg
- ColourBlack
- Total power500 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 33 dB
- Weight
- 2.03 kg
- Colour
- Black
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- be quiet!
- Category
- Power Supply Unit
- Model
- PCGH Edition F1
- Part number
- BN189
- EAN / UPC
- 4260052182833
- Also known as
- be quiet! PCGH Edition F1 power supply unit 500 W 20+4 pin ATX ATX Black
Specifications
52 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 8 A |
| Maximum input current (@110V) | +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V |
| Power factor | 0.99 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 432 W |
| Combined power (+5V) | 130 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 36 A |
| Max output current (+12V1) | 18 A |
| Max output current (+12V2) | 18 A |
| Max output current (+5V) | 24 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 5.3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| EPS power connector (8-pin) | No |
| PCI Express power connectors (6-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.31 |
| EPS version | 2.92 |
| Noise level | 33 dB |
| Bearing technology | Rifle |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | ErP WEEE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 2.03 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 2.21 kg |
| Package type | Box |
Technical details
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 240 x 210 x 96 mm |
