be quiet! E7 CM PCGH Special Edition
Model E7 CM PCGH Special EditionPart no. BN120
18 specifications
- ColourWhite
- Total power600 W
- Number of SATA power connectors7
- Operating temperature (T-T)0 - 40 °C
Overview
- Colour
- White
- Total power
- 600 W
- Number of SATA power connectors
- 7
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- be quiet!
- Category
- Power Supply Unit
- Model
- E7 CM PCGH Special Edition
- Part number
- BN120
- Also known as
- be quiet! E7 CM PCGH Special Edition power supply unit 600 W White
Specifications
18 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 600 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 9 - 4.5 A |
| Efficiency | 88% |
| Hold time | 19 ms |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of SATA power connectors | 7 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| PCI Express power connectors (6-pin) | 2 |
| ATX Power connector (24-pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Semi-Modular |
| I/O ports | ATX 12V 24-Pin 1x 4-Pin Molex (HDD) 6x 4-Pin Floppy (FDD) 2x S-ATA 7x 4-Pin 12V 1x P8 Connector 1x 6-Pin PCI-Express 2x 6+2-Pin PCI-Express 2x 3-Pin Fan Connector 2x 4-Pin Fan Connector 2x |
Design
| Specification | Value |
|---|---|
| Product colour | White |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 160 x 86 x 150 mm |
| Maximum current | 45 A |
What people say
Reviews & ratings
be quiet! E7 CM PCGH Special Edition
No reviews yet
Be the first to tell others how be quiet! E7 CM PCGH Special Edition works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare be quiet! E7 CM PCGH Special Edition
All power supply unit comparisons- be quiet! E7 CM PCGH Special Edition vsbe quiet! SFX PowerCompare specs

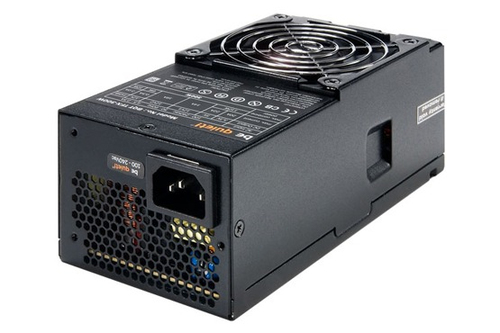

- be quiet! E7 CM PCGH Special Edition vsbe quiet! TFX PowerCompare specs
- be quiet! E7 CM PCGH Special Edition vsbe quiet! BQT S6-SYS-EP-350WCompare specs

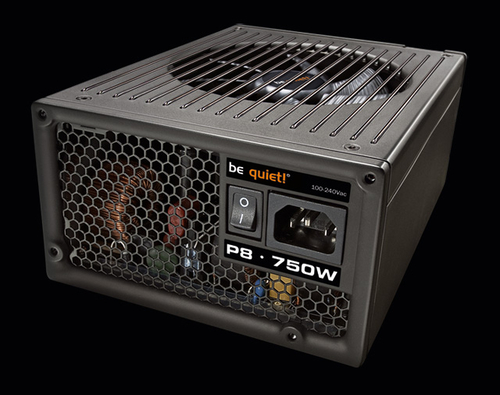

- be quiet! E7 CM PCGH Special Edition vsbe quiet! Dark Power Pro P8Compare specs
