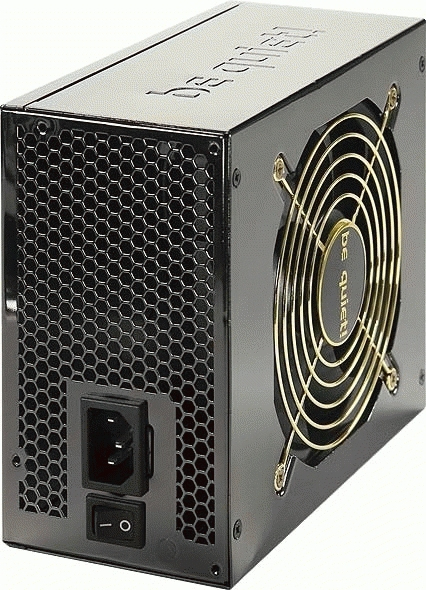

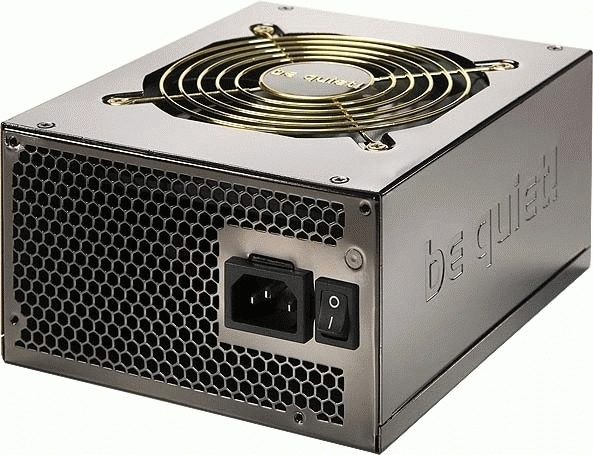

be quiet! Dark Power Pro (P7)
Model Dark Power Pro (P7)Part no. P7-PRO-1200W
14 specifications
- ColourBlack
- Total power1200 W
- Number of SATA power connectors12
- Power supply unit (PSU) form factorATX
Overview
- Colour
- Black
- Total power
- 1200 W
- Number of SATA power connectors
- 12
- Power supply unit (PSU) form factor
- ATX
- Brand
- be quiet!
- Category
- Power Supply Unit
- Model
- Dark Power Pro (P7)
- Part numbers
- P7-PRO-1200W, P7-PRO-850W
- Also known as
- be quiet! Dark Power Pro (P7) power supply unit 1200 W ATX Black
Specifications
14 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 1200 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) | Yes |
| PCI Express power connectors (6-pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Semi-Modular |
| I/O ports | 1x ATX 12V 24-pin 14x 4-pin Molex (HDD) 2x 4-pin Floppy (FDD) 12x SATA 1x 4-pin 12V 6x 6+2-pin PCI-Express 1x 8-pin 12V 1x 6-pin EPS (SSI) 1x MB connector 1x RPM control 4x 3-pin FAN 4x 4-pin FAN |
Performance
| Specification | Value |
|---|---|
| Power supply unit (PSU) form factor | ATX |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 3.8 kg |
Other features
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 265 x 103 x 382 mm |
